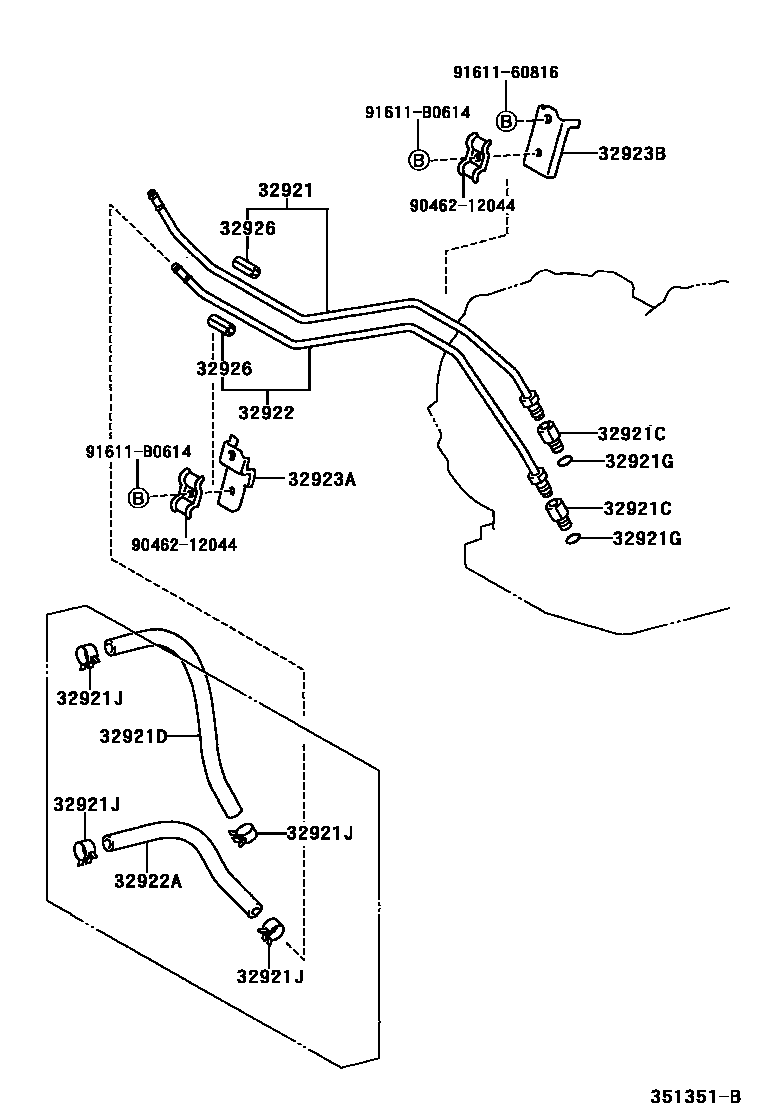

OIL COOLER & TUBE (ATM)

0001 1U240E 0002 1U240E,U240F 0003 1U341E 0004 1A247E,A248F

32921TUBE, OIL COOLER INLET, NO.1

main32921-32200iZZV50199806-200004

main32921-32210iSV50199806-200108

main32921-32220iSV55199806-200204

main32921-32240iZZV50200004

main32921-32250iAZV5#200108

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iSV5#,ZZV50199806-200004

main90404-16031iSV5#200004-200204

main90404-16031iZZV50200004-200307

main90404-16032iAZV5#200108-200307

main90407-16010iZZV50200004-200307

32921DHOSE(FOR OIL COOLER INLET)

main32941-32180iZZV50199806-200004

main32941-32190iSV5#199806-200204

main32941-63020iZZV50200004

main90445-17117iAZV5#200108

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSV5#,ZZV50199806-200307

main90301-11006iAZV5#200108-200307

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iAZV50,SV5#,ZZV50199806-200204

sub90467-16022

main90467-16022iAZV5#,ZZV50200204

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32130iZZV50199806-200004

main32922-32140iSV50199806-200108

main32922-32150iSV55199806-200204

main32922-32170iZZV50200004

main32922-32180iAZV5#200108

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-32060iAZV5#200108

main90445-17096iSV5#199806-200204

main90445-17104iZZV50200004

main90445-17117iZZV50199806-200004

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-63010iAZV5#200108

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-32080iSV5#,ZZV50199806

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-32090iSV5#199806-200204

main32923-32100iZZV50199806-200004

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iAZV5#,SV5#,ZZV50199806

9046212044

main90462-12044

9161160816

main91611-60816

91611B0614

main91611-B0614

14 parts on this diagram · 4 diagrams in section
