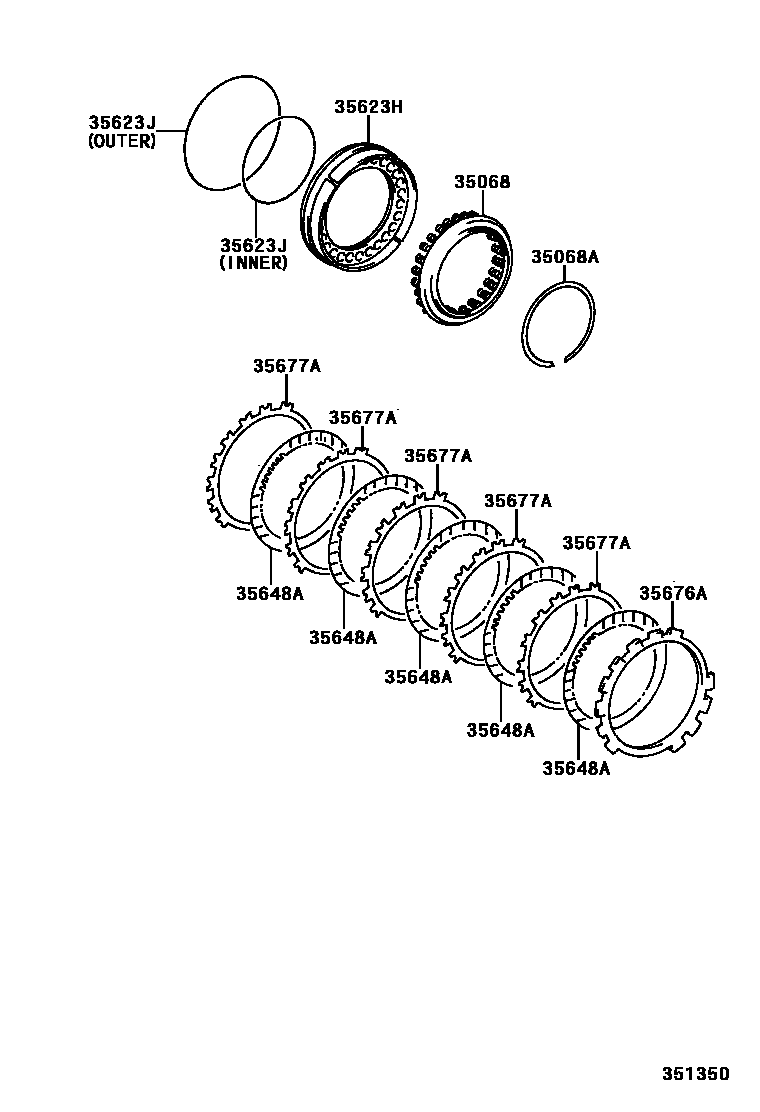

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U240E,U240F 0003 1U341E 0004 1A247E,A248F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iAZV5#200108-200307

main35068-21010iSV5#,ZZV50199806-200204

main35068-52030iZZV50200004-200307

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAZV5#200108-200307

main90520-99035iSV5#,ZZV50199806-200204

35623HPISTON, 1ST & REVERSE BRAKE

main35623-20020iAZV5#200108-200307

main35623-32060iZZV50199806-200004

main35623-48010iSV5#199806-200204

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iAZV5#200108-200307

main90301-99096iSV5#199806-200204

main90301-99098iSV5#,ZZV50199806-200204

sub90301-99134

main90301-99131iAZV5#200108-200307

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iAZV5#200108-200307

main35692-21010iZZV50199806-200204

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iAZV5#200108-200307

main35678-21010iSV5#,ZZV50199806-200204

main35678-21020iSV5#199806-200204

main35678-21030iSV5#,ZZV50199806-200204

main35678-21040iSV5#199806-200204

main35678-21050iSV5#199806-200204

main35678-21060iSV5#,ZZV50199806-200204

main35678-21070iSV5#199806-200204

main35678-21080iSV5#199806-200204

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32080iAZV5#200108-200307

main35682-21010iZZV50199806-200204

7 parts on this diagram · 3 diagrams in section
