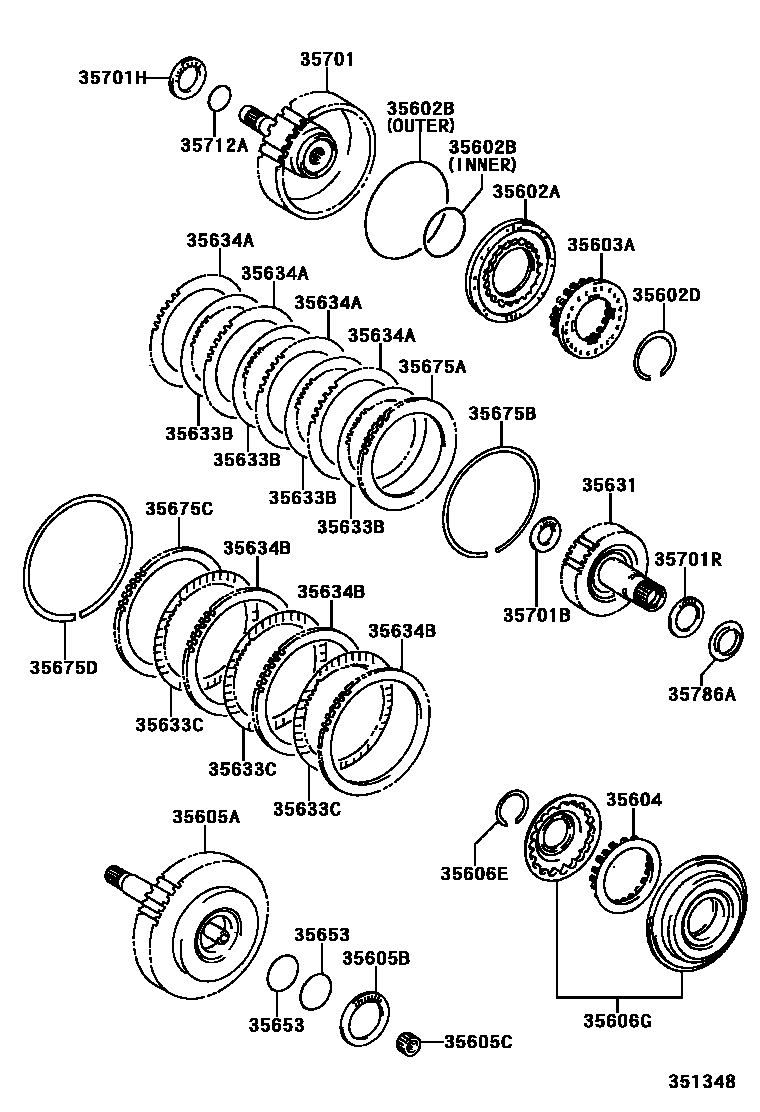

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605CBEARING, NEEDLE ROLLER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35606GPISTON SET, DIRECT CLUTCH
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35653RING, REAR CLUTCH OIL SEAL, OUTER
sub35653-33010
35675FLANGE, REAR CLUTCH
35675AFLANGE, FORWARD CLUTCH
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35701RBEARING, THRUST NEEDLE ROLLER
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
28 parts on this diagram · 3 diagrams in section
