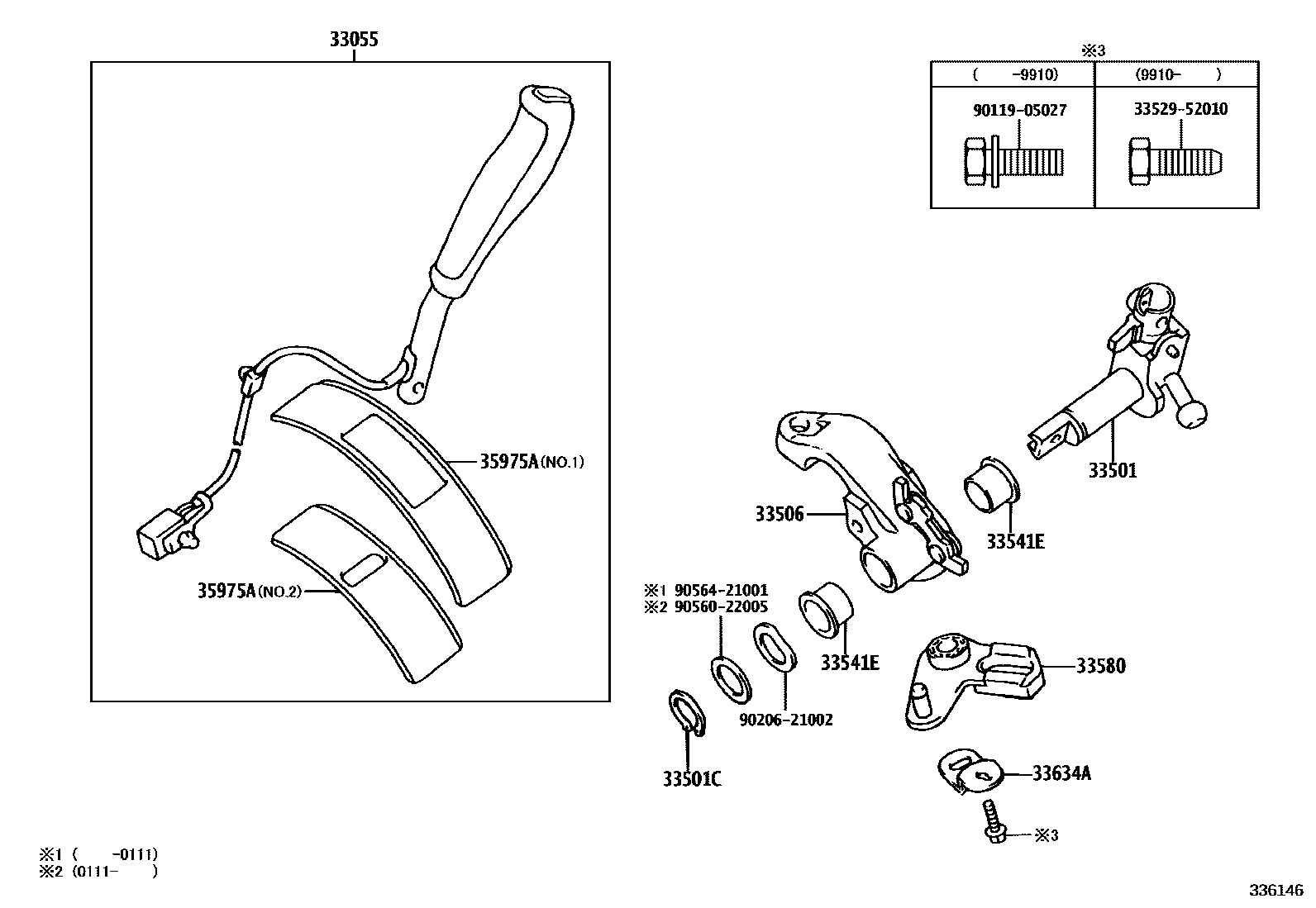

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-32160iSV5#,ZZV50199806-200004

main33055-32170iAZV5#,SV5#,ZZV50200004

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-32010iAZV50,SV5#,ZZV50199806-200111

sub33501-32H00

main33501-32011iAZV5#,SV55,ZZV50200111

33501CRING (FOR CONTROL SHAFT)

main96150-02000iAZV5#,SV5#,ZZV50199806

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-32080iSV5#,ZZV50199806-199910

sub33506-32081

sub33529-52010

main33506-32081iSV5#,ZZV50199910-200101

sub33506-32082

main33506-32082iAZV50,SV5#,ZZV50200101-200111

sub33501-32H00

main33506-32083iAZV5#,SV55,ZZV50200111

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-20007iAZV50,SV5#,ZZV50199806-200111

main90386-21002iAZV5#,SV55,ZZV50200111

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-32010iAZV5#,SV5#,ZZV50199806

33634APROTECTOR, WIRE

main33634-32010iAZV5#,SV5#,ZZV50199806

35975ACOVER, SLIDE (FOR POSITION INDICATOR)

main35975-32150iAZV5#,SV5#,ZZV50199806

main35975-32160iAZV5#,SV5#,ZZV50199806

3352952010BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-52010

9011905027

main90119-05027

9020621002

main90206-21002

9056022005

main90560-22005

9056421001

main90564-21001

13 parts on this diagram · 5 diagrams in section
