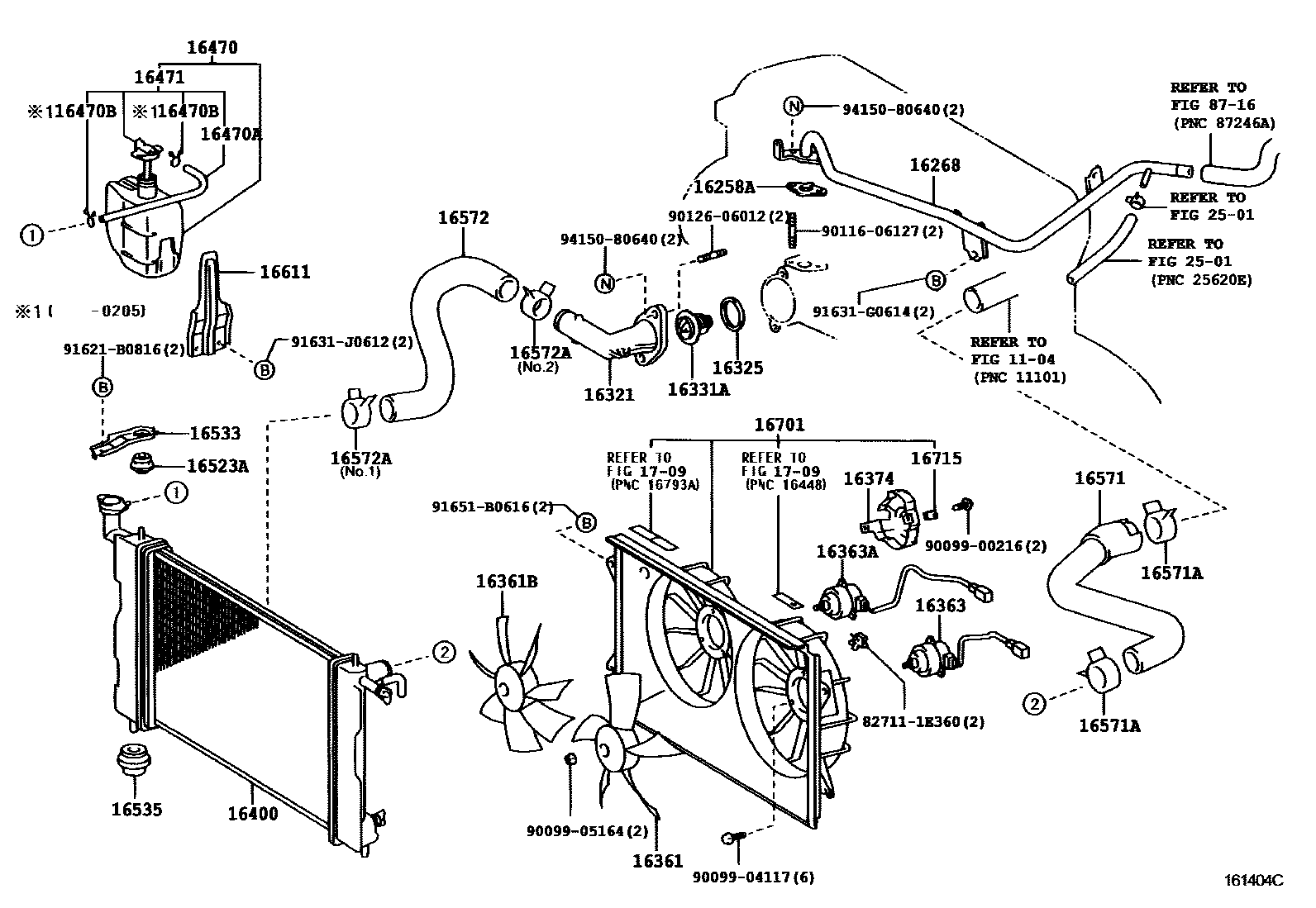

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..AZV5#200108-200304

sub16258-28030

main16258-28011i1AZFSE..AZV5#200304-200307

sub16258-28030

16268PIPE, WATER BY-PASS, NO.1

main16268-22020i1ZZFE..ZZV50199806-200004

sub16268-22021

main16268-22080i1ZZFE..ZZV50200111-200308

sub16268-22081

main16268-22100i1ZZFE..ZZV50200004-200111

sub16268-22101

main16268-28020i1AZFSE..AZV5#200108

main16268-74190i3SFE..SV55199806

main16268-74250i3SFSE..SV50199806-200108

16321INLET, WATER

main16321-22040i1ZZFE..ZZV50199806-199906

main16321-22050i1ZZFE..ZZV50199906-200004

main16321-22070i1ZZFE..ZZV50200004-200308

main16321-28010i1AZFSE..AZV5#200108

main16321-74050i3SF#..SV5#199806

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1AZFSE..AZV5#199806-200308

main16325-63011i3SF#..SV5#199806

16331ATHERMOSTAT

main90916-03084i1ZZFE..ZZV50200004-200007

sub90916-03129

main90916-03090i3SF#..SV5#199806

main90916-03107i1ZZFE..ZZV50199806-200004

main90916-03125i1ZZFE..ZZV50200007-200308

main90916-03127i1AZFSE..AZV5#200108

16361FAN

main16361-22030i3SF#..SV5#199806-200307

16361BFAN, NO.2

main16361-22040i3SF#..SV5#199806-200307

16363MOTOR, COOLING FAN

main16363-22030i1ZZFE..ZZV50199806-200004

main16363-23010i3SF#..SV5#200004-200307

16363AMOTOR, COOLING FAN, NO.2

main16363-22040i3SF#..SV5#199806-200307

16374INSULATOR, COOLING FAN MOTOR

main16366-74700i3SF#..SV5#200004-200307

16400RADIATOR ASSY

main16400-22050i1ZZFE..ZZV50199806

sub16400-7A590

main16400-7A590i1AZFSE..AZV50199806-200108

main16400-7A600i3SFE..SV55199806-200204

16470TANK ASSY, RADIATOR RESERVE

main16470-22010i3SF#..SV5#199806-200204

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1AZFSE..AZV5#199806-200204

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3SF#..SV5#199806-200205

16471CAP SUB-ASSY, RESERVE TANK

main16405-22010i3SF#..SV5#199806-200204

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i3SF#..SV5#199806-200204

16533SUPPORT, RADIATOR, UPPER

main16533-22010i1AZFSE..AZV5#199806-200204

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1ZZFE..ZZV50199806-200204

main16535-28030i1AZFSE..AZV50200108

16571HOSE, RADIATOR, INLET

main16571-22010i1ZZFE..ZZV50199806

main16571-28170i1AZFSE..AZV5#200108

main16571-74470i3SFSE..SV50199806-200108

main16571-74480i3SFE..SV55199806-200204

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1AZFSE..AZV5#200108

main90466-37002i1ZZFE..ZZV50199806-200204

main90467-34003i1ZZFE..ZZV50199806-200204

sub90467-34004

main90467-34004i1ZZFE..ZZV50200204

16572HOSE, RADIATOR, OUTLET

main16572-22010i1ZZFE..ZZV50199806-199906

main16572-22050i1ZZFE..ZZV50199906

main16572-28120i1AZFSE..AZV5#200108

main16572-74330i3SF#..SV5#199806-200204

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1AZFSE..AZV5#199806-200204

main90467-34003i3SF#..SV5#199806-200204

sub90467-34004

main90467-37004i1ZZFE..ZZV50199906

sub90467-37005

main90467-37005i1AZFSE..AZV5#200204

main90467-37006i1AZFSE..AZV50200108-200204

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-22020i3SF#..SV5#199806-200204

16701SHROUD SUB-ASSY, FAN

main16711-22050i1ZZFE..ZZV50199806-200307

main16711-74710i3SF#..SV5#199806-200307

16715BRACKET, FAN SHROUD

main88688-18030i3SF#..SV5#199806-200307

1709

2501

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904117

main90099-04117

9009905164

main90099-05164

9011606127

main90116-06127

9012606012

main90126-06012

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91631J0612

main91631-J0612

91651B0616

main91651-B0616

9415080640

main94150-80640

40 parts on this diagram · 8 diagrams in section
