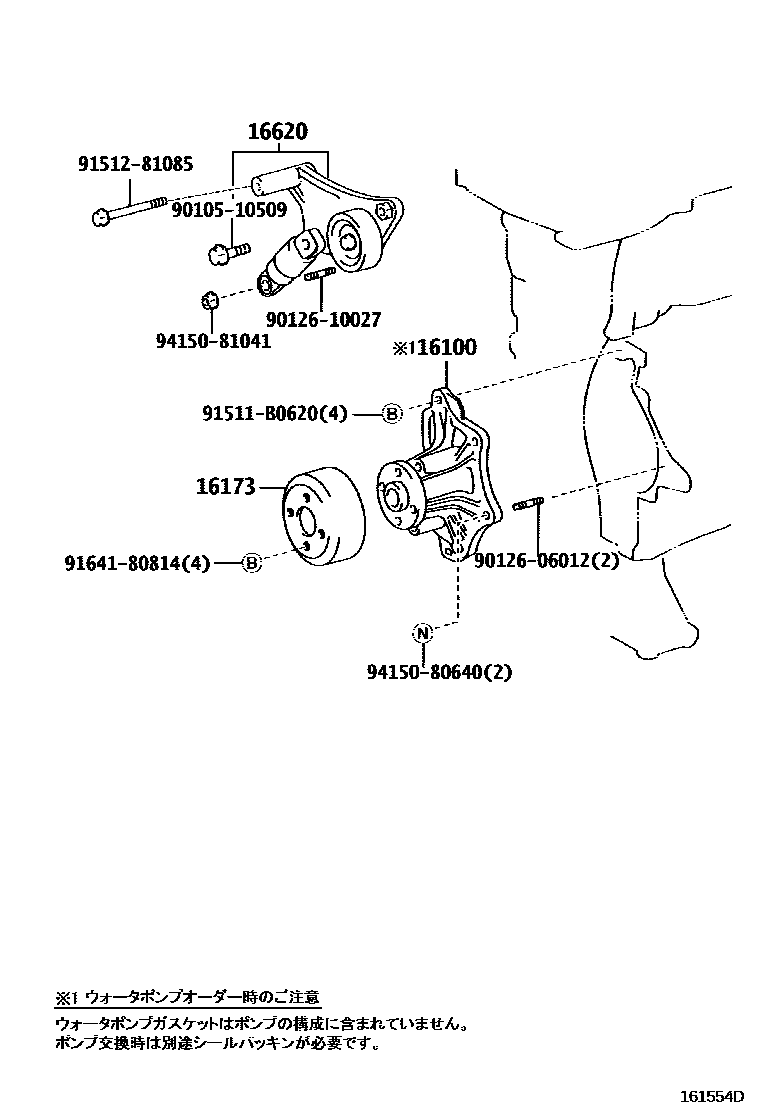

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFSE..AZV5#200108

sub16100-28041

main16100-29095i1ZZFE..ZZV50199806-200107

sub16100-29175

sub91511-60622

main16100-29175i1ZZFE..ZZV50200107

sub16100-29415

main16100-79185i3SF#..SV5#199806

sub16100-79186

16173PULLEY, WATER PUMP

main16173-28020i1AZFSE..AZV5#200108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22010i1ZZFE..ZZV50199806-200106

sub16620-22011

main16620-22011i1ZZFE..ZZV50200106-200308

sub16620-22012

main16620-28011i1AZFSE..AZV5#200108

sub16620-0W110

9010510509

main90105-10509

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
