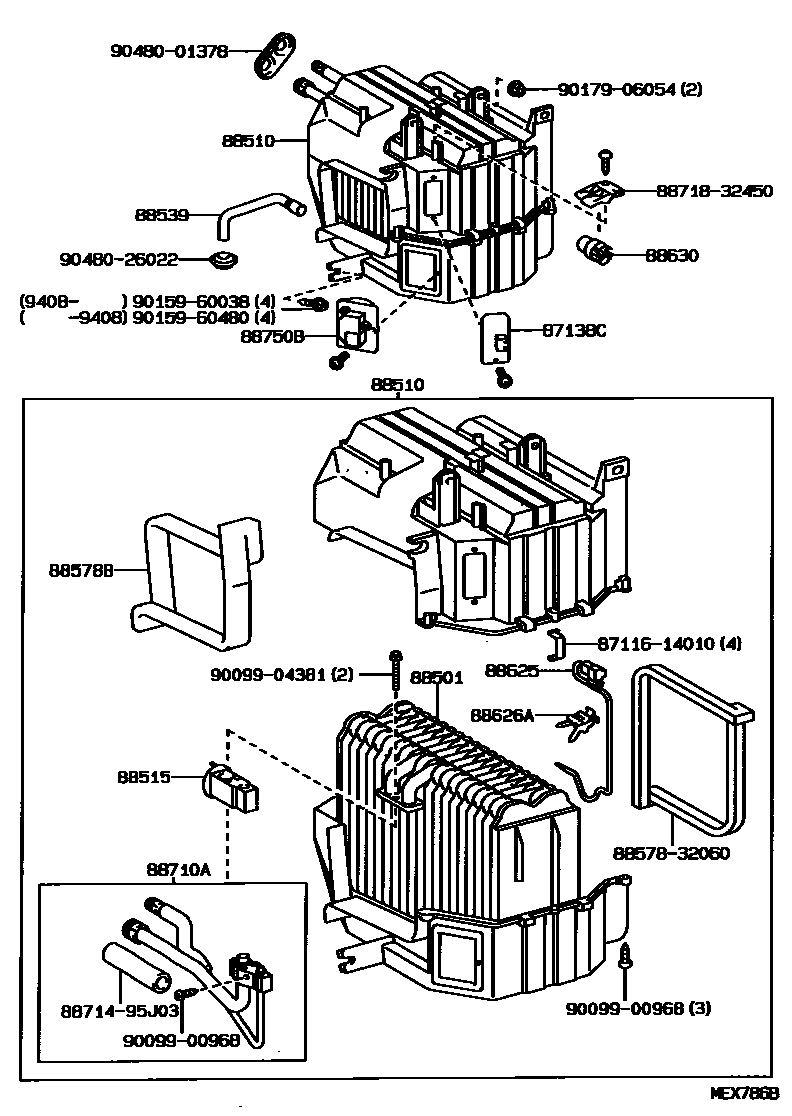

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-32060iCV4#,SV4#199406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-32100iCV4#,SV4#199406

88510UNIT ASSY, COOLER

main88510-32700iCV4#,SV4#199406

88515VALVE, COOLER EXPANSION

main88515-20100iCV4#,SV4#199406

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-32060iCV4#,SV4#199406

88578BPACKING, COOLING UNIT, NO.1

main88578-20460iCV4#,SV4#199406

88625THERMISTOR, COOLER, NO.1

main88625-32150iCV4#,SV4#199406

88626AHOLDER, THERMISTOR

main88626-28010iCV4#,SV4#199406

88630RELAY ASSY, COOLER

main90987-02004iCV4#,SV4#199406

88710ATUBE ASSY, AIR CONDITIONER

main88710-32170iCV4#,SV4#199406

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-32010iCV4#,SV4#199406

sub88750-28040

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8857832060PAKING, COOLER AIR DUCT

main88578-32060

8871495J03HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95J03

8871832450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32450

9009900968

main90099-00968

9009904381

main90099-04381

9015960038

main90159-60038

9015960480

main90159-60480

9017906054

main90179-06054

9048001378

main90480-01378

9048026022

main90480-26022

22 parts on this diagram · 2 diagrams in section
