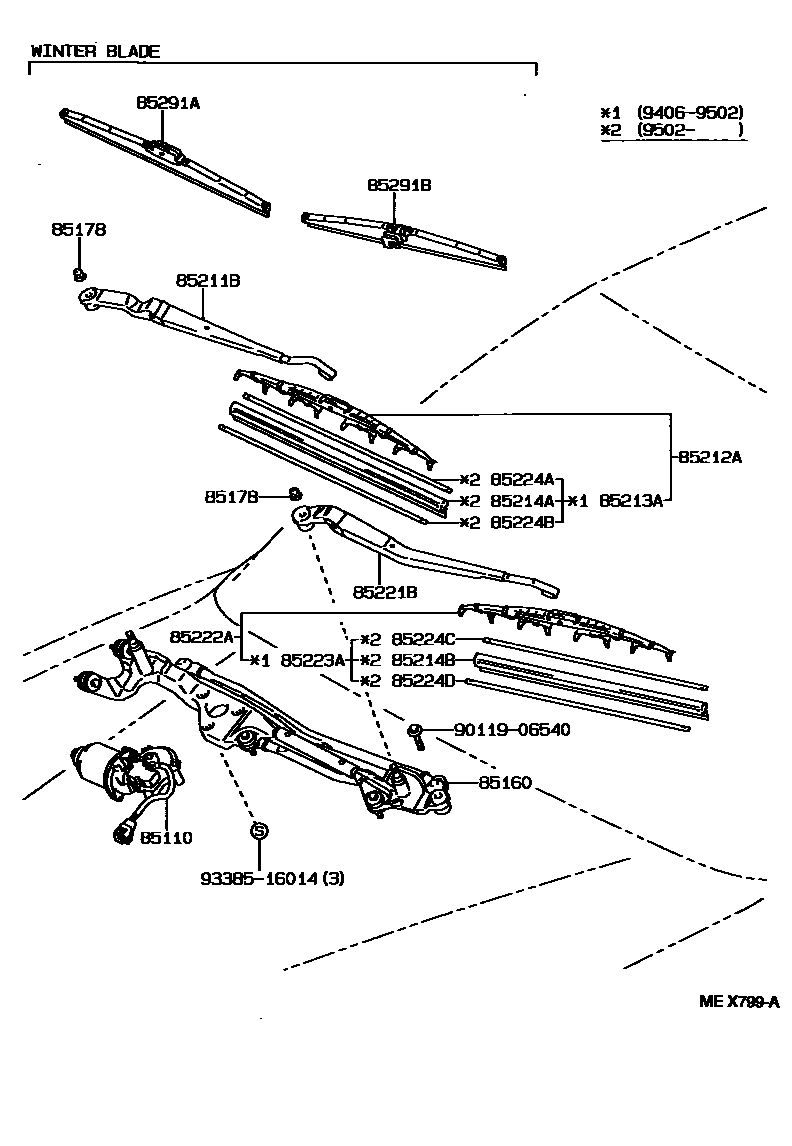

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32320iCV4#,SV4#199406-199605

sub85110-32330

main85110-32330iCV4#,SV4#199406-199605

main85110-32350iCV4#,SV4#199605

sub85110-32360

main85110-32360iCV4#,SV4#199605

main85110-32370iCV4#,SV4#199605

sub85110-32360

85160LINK ASSY, WINDSHIELD WIPER

main85150-32340iCV4#,SV4#199406-199605

main85150-32390iCV4#,SV4#199406-199504

sub85150-32391

main85150-32391iCV4#,SV4#199504-199605

main85150-32400iCV4#,SV4#199406-199504

sub85150-32401

main85150-32401iCV4#,SV4#199504-199605

main85150-32410iCV4#,SV4#199605

main85150-32420iCV4#,SV4#199605

main85150-32430iCV4#,SV4#199605

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040iCV4#,SV4#199406

sub90176-08051

85211BARM, FRONT WIPER, RH

main85211-32260iCV4#,SV4#199406

main85211-32270iCV4#,SV4#199406-199504

sub85211-32271

main85211-32271iCV4#,SV4#199504

85212ABLADE, FR WIPER, RH

main85212-20350iCV4#,SV4#199406-199605

main85212-20410iCV4#,SV4#199605

sub85212-12360

main85212-32241iCV4#,SV4#199406-199605

85213ARUBBER, WIPER BLADE, RH

main85213-20310iCV4#,SV4#199406-199502

sub85214-33060

85214ARUBBER, WIPER, RH

main85214-20280iCV4#,SV4#199605

sub85214-48031

main85214-33060iCV4#,SV4#199502-199605

sub85214-40080

85214BRUBBER, WIPER, LH

main85214-35040iCV4#,SV4#199605

sub85214-48020

main85214-60020iCV4#,SV4#199502-199605

85221BARM, FRONT WIPER, LH

main85221-32130iCV4#,SV4#199406

main85221-32140iCV4#,SV4#199406

85222ABLADE, FR WIPER, LH

main85222-22750iCV4#,SV4#199406-199605

main85222-3H060iCV4#,SV4#199605

sub85222-48030

main85222-3H080iCV4#,SV4#199406-199605

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-33040iCV4#,SV4#199406-199502

sub85214-60020

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280iCV4#,SV4#199605

main85224-33050iCV4#,SV4#199502-199605

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280iCV4#,SV4#199605

main85224-33050iCV4#,SV4#199502-199605

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20300iCV4#,SV4#199502-199605

main85224-35040iCV4#,SV4#199605

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20300iCV4#,SV4#199502-199605

main85224-35040iCV4#,SV4#199605

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050iCV4#,SV4#199406

sub85291-33060

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iCV4#,SV4#199406

sub85291-22080

9011906540

main90119-06540

9338516014

main93385-16014

19 parts on this diagram · 1 diagram in section
