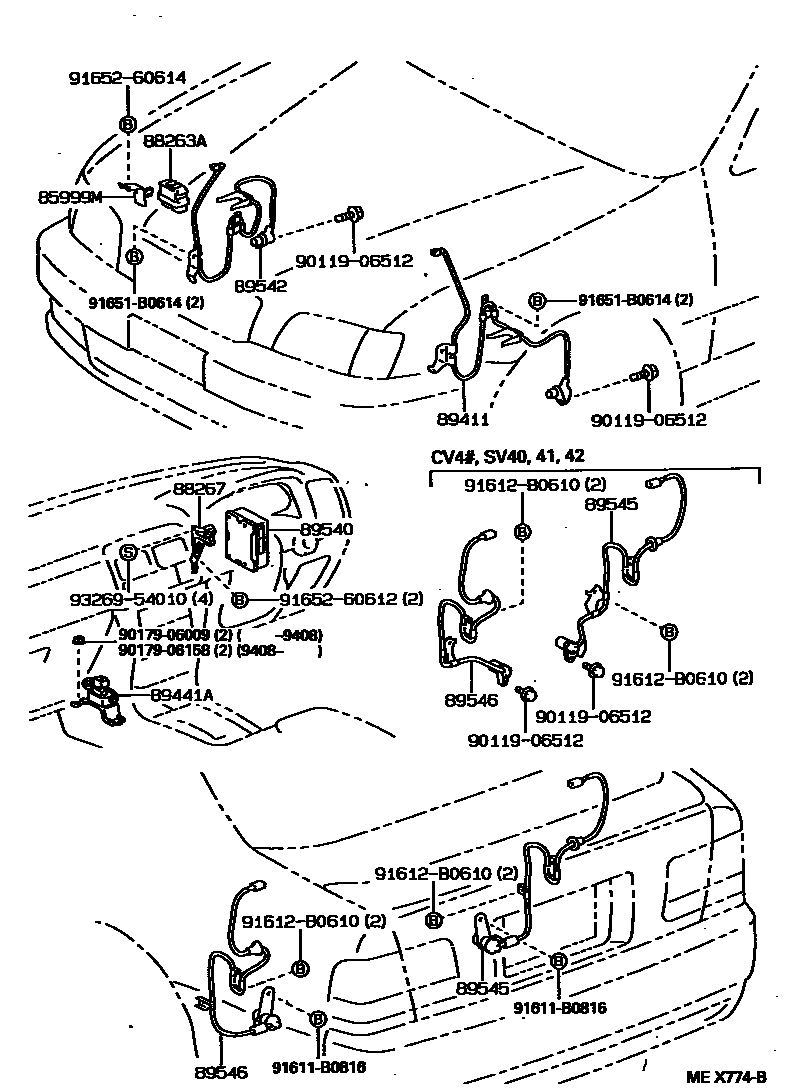

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-32260iCV4#199406-199605

main85999-32270iSV4#199605

88263ARELAY, SKID CONTROL

main88263-14110iSV4#199605

main88263-32060iCV4#,SV4#199406-199605

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-32110iCV4#,SV4#199406-199605

89411SENSOR, SPEED

main89543-32021iCV4#,SV4#199406-199605

89441ASENSOR, DECELERATION

main89440-32030iCV43,SV43199406-199605

89540COMPUTER ASSY, SKID CONTROL

main89541-32080iCV40,SV40,41,42199406-199605

main89541-32090iCV43,SV43199406-199605

89542SENSOR, SPEED, FRONT RH

main89542-32021iCV4#,SV4#199406-199605

main89542-32030iCV4#,SV4#199605

89545SENSOR, SPEED, REAR RH

main89545-20150iCV43,SV43199605

main89545-32030iCV40,SV40,41,42199406-199605

sub89545-33020

main89545-32040iCV43,SV43199406-199605

main89545-33020iCV40,SV40,41,42199605

89546SENSOR, SPEED, REAR LH

main89546-20150iCV43,SV43199605

main89546-32030iCV40,SV40,41,42199406-199605

sub89546-33020

main89546-32040iCV43,SV43199406-199605

main89546-33020iCV40,SV40,41,42199605

9011906512

main90119-06512

9017906009

main90179-06009

9017906158

main90179-06158

91611B0816

main91611-B0816

91612B0610

main91612-B0610

91651B0614

main91651-B0614

9165260612

main91652-60612

9165260614

main91652-60614

9326954010

main93269-54010

18 parts on this diagram · 2 diagrams in section
