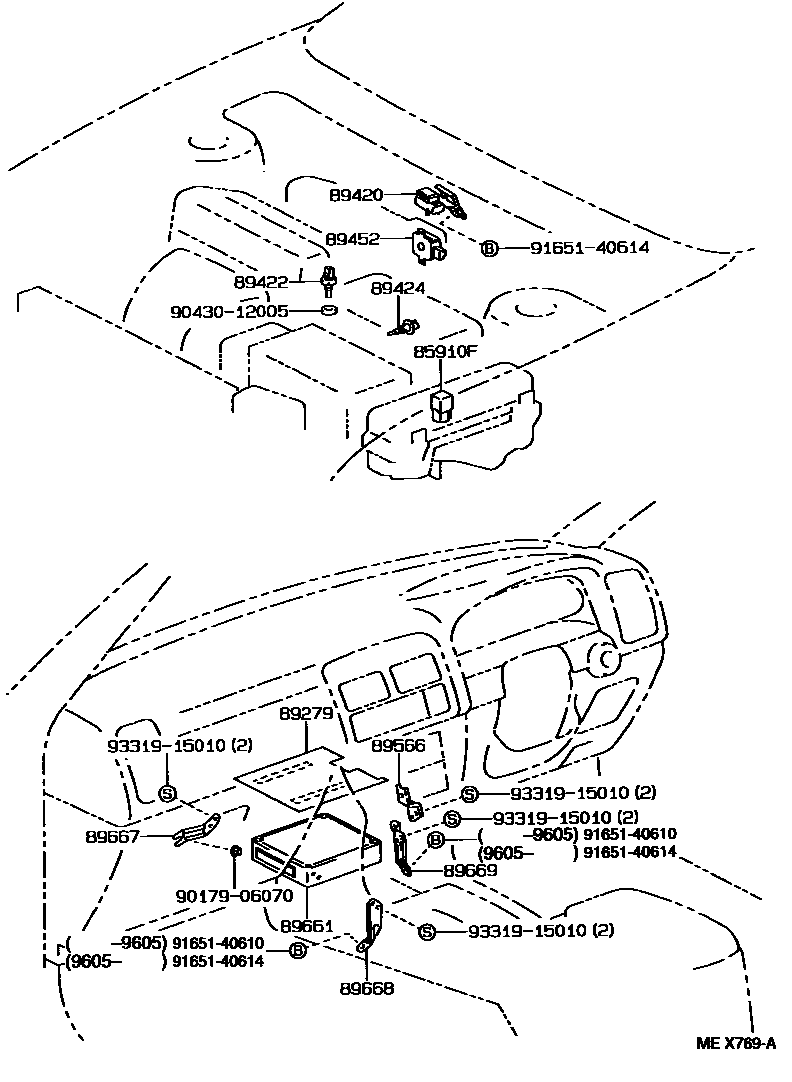

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iSV4#199406

89279COVER, ENGINE CONTROL COMPUTER

main89279-32170iSV4#199406

89420SENSOR ASSY, VACUUM

main89420-32070iSV4#199406

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSV4#199406-199605

main89422-35010iSV4#199605

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSV4#199406

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iSV40199406-199605

main89452-20130iSV4#199605-199609

main89452-22090iSV41,42,43199406-199605

main89452-33030iSV4#199609

89566BRACKET, FUEL INJECTION COMPUTER

main89566-32050iSV41,42..ALPX,TOU,VX,ZX199406-199605

89661COMPUTER, ENGINE CONTROL

main89661-32820iSV40..ATM199406-199605

main89661-32830iSV41,42199406-199605

main89661-32840iSV41,42..ALPX,TOU,VX,ZX199406-199605

main89661-32850iSV43..MTM199406-199605

main89661-32860iSV43..ATM199406-199605

main89661-32870iSV40..MTM199406-199605

main89661-32880iSV40199605-199612

main89661-32881iSV40..MTM199612

main89661-32890iSV41,42199605

main89661-3H010iSV43..MTM199605

main89661-3H020iSV43..ATM199605

main89661-3H030iSV40..ATM199612

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-32030iSV41,42..ALPX,TOU,VX,ZX199406-199605

main89667-32050iSV4#199406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-32040iSV4#199406

main89668-32050iSV41,42..ALPX,TOU,VX,ZX199406-199605

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-32050iSV41,42..ALPX,TOU,VX,ZX199406-199605

main89669-32050iSV4#199406

9017906070

main90179-06070

9043012005

main90430-12005

9165140610

main91651-40610

9165140614

main91651-40614

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
