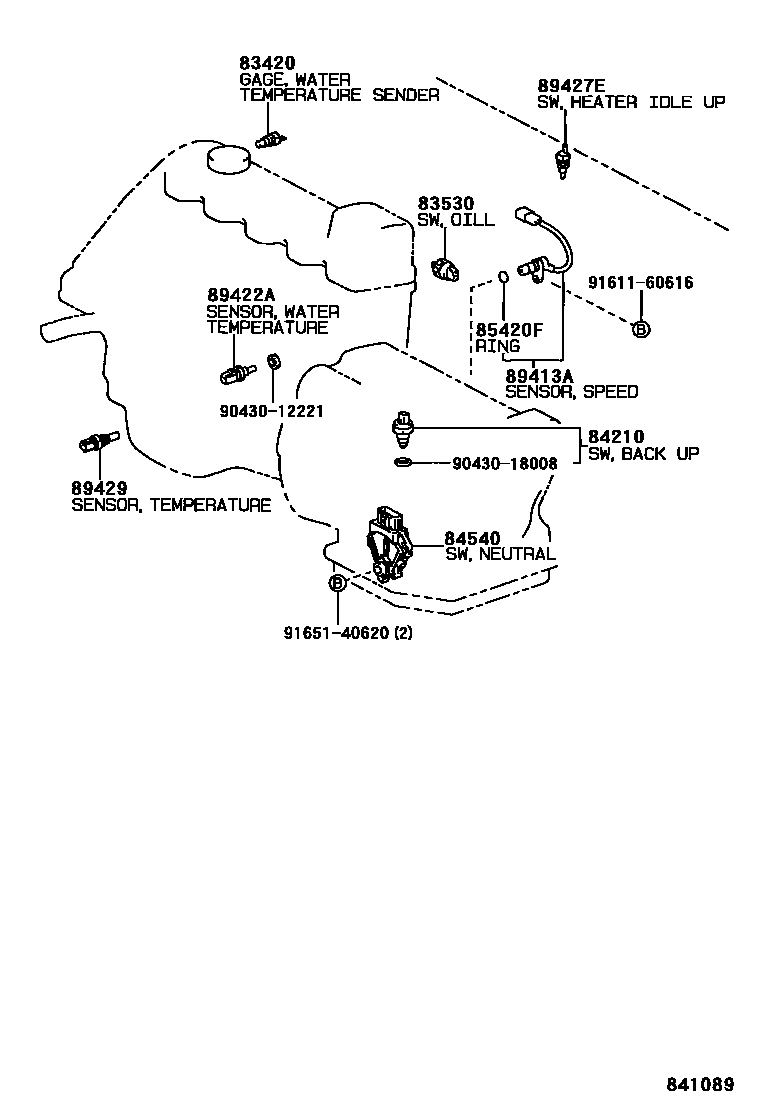

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1������������ 0005 1��� RH 0006 1��� LH 0007 1�������� & �-������ ���� 0008 1�������� & �-������ ���� 0009 1���,�-�,��� & �-� 0010 1����(����-������-����)

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCV4#,SV4#199506-199508

main83420-16040iCV4#,SV4#199406-199605

main83420-20040iSV4#199605

main83420-AA010iSV4#199610

AMERICAN YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSV4#199802

main83530-30090iSV4#199605-199802

sub83530-60020

main83530-30090iSV4#199406-199605

sub83530-60020

main83530-30100iCV4#199406-199802

sub83530-60010

main83530-60010iCV4#199802

main83530-60020iSV4#199802

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCV40,SV40,43..MTM199406

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-20200iCV43,SV43..ATM199406

main84540-20220iCV40,SV40,41,42..ATM199406

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11008iCV43,SV43..ATM199406

89413ASENSOR, TRANSMISSION REVOLUTION

main89411-32050iCV43199501

main89413-32010iSV43..ATM199406

sub89413-32011

89422ASENSOR, WATER TEMPERATURE

main89422-35010iCV4#199406

89427SWITCH, TEMPERATURE DETECT

main89428-33010iSV4#199406-199806

89427ESWITCH, TEMPERATURE (FOR HEATER IDLE UP)

main89427-12110iCV4#199605

sub88620-28020

main89427-32030iCV4#199406-199605

89429SENSOR, OIL TEMPERATURE

main89429-24020iCV4#199605

main89429-33010iCV4#199406-199605

9043012221

main90430-12221

9043018008

main90430-18008

9161160616

main91611-60616

9165140620

main91651-40620

14 parts on this diagram · 10 diagrams in section
