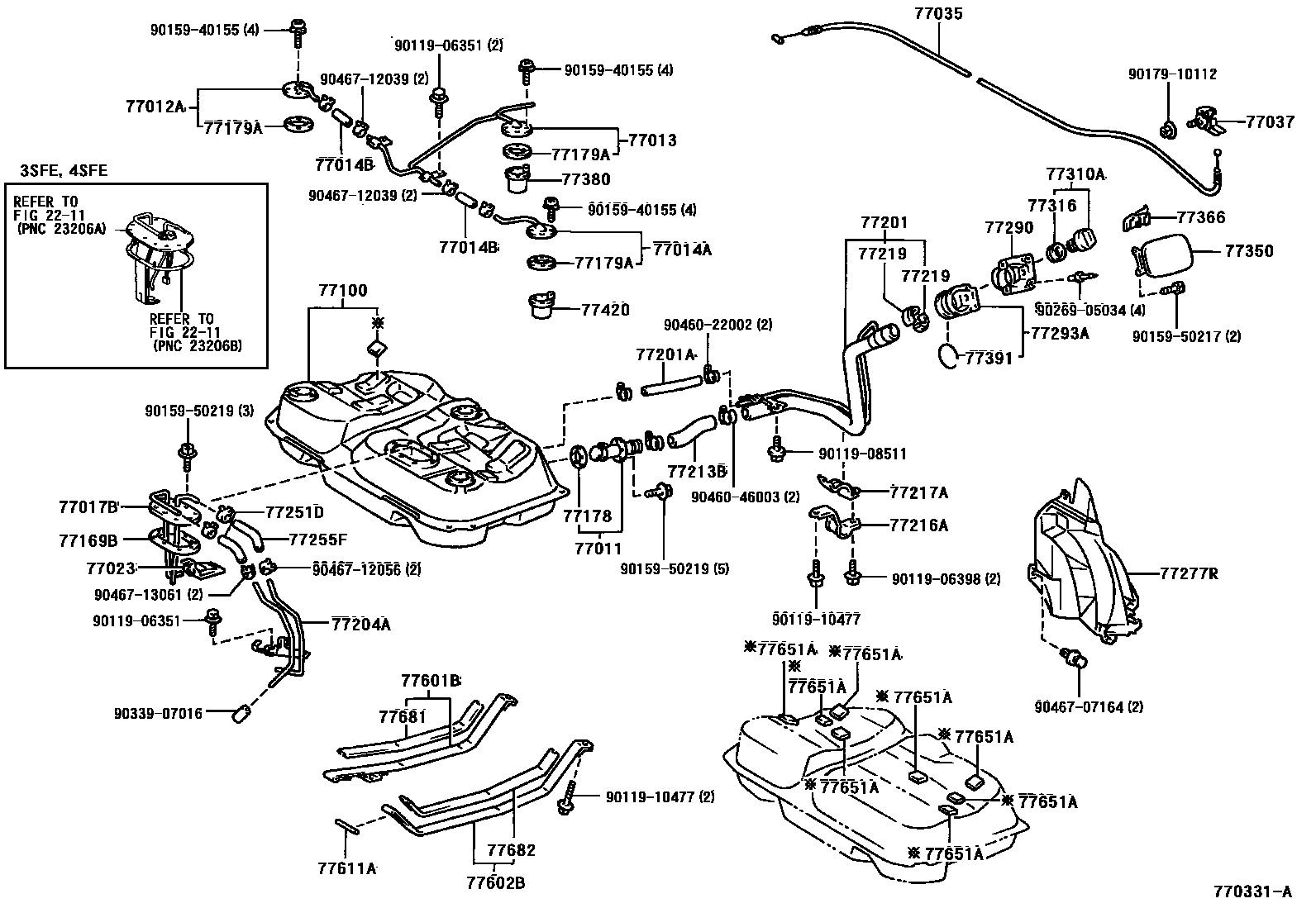

FUEL TANK & TUBE
2211
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77420VALVE ASSY, FUEL CUT OFF, NO.2
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
77682SEAT, FUEL TANK BAND, LH
9011906351
main90119-06351
9011906398
main90119-06398
9011908511
main90119-08511
9011910477
main90119-10477
9015940155
main90159-40155
9015950217
main90159-50217
9015950219
main90159-50219
9017910112
main90179-10112
9026905034
main90269-05034
9033907016
main90339-07016
9046022002
main90460-22002
9046046003
main90460-46003
9046707164
main90467-07164
9046712039
main90467-12039
9046712056
main90467-12056
9046713061
main90467-13061
55 parts on this diagram · 4 diagrams in section
