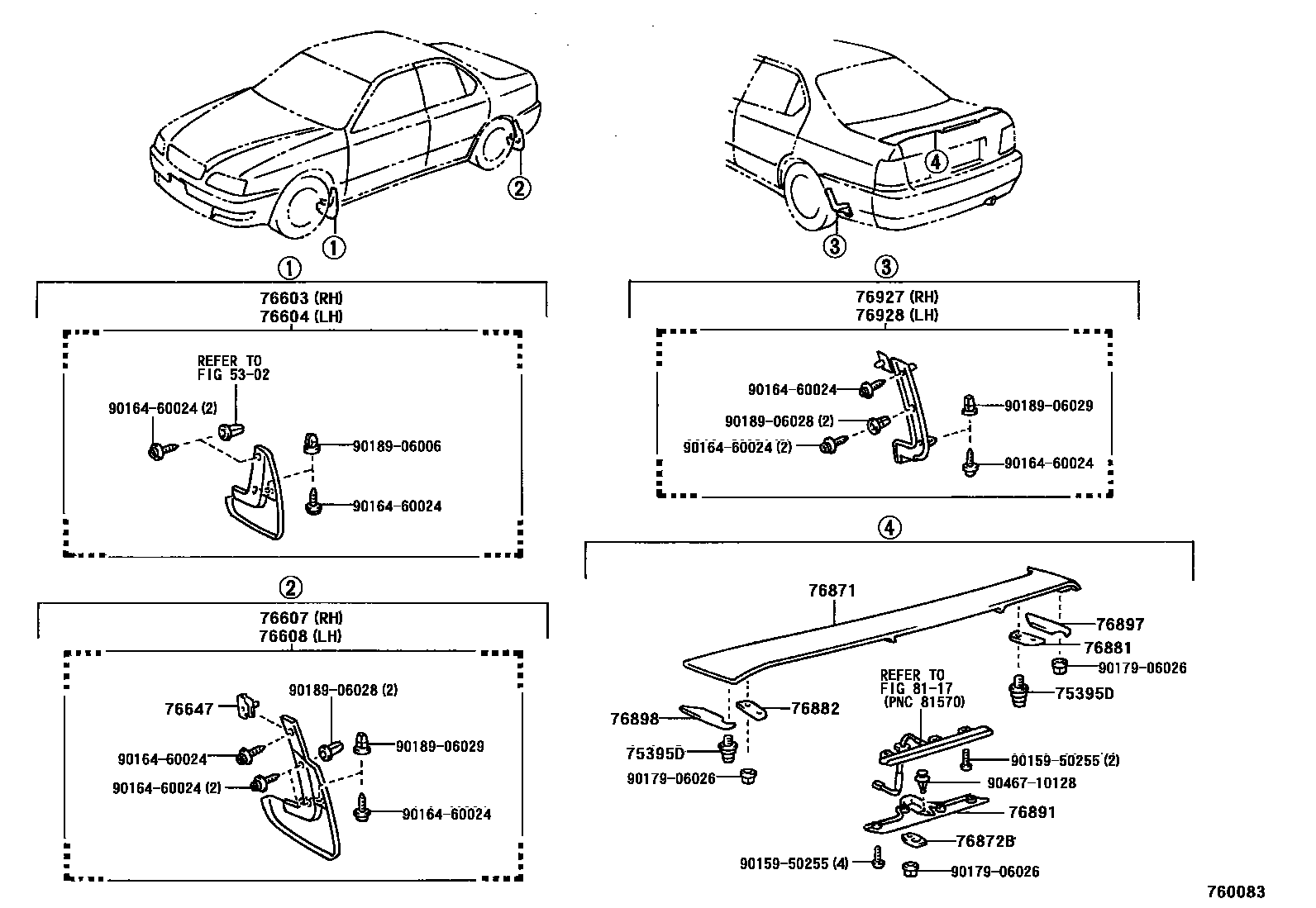

MUDGUARD & SPOILER

0001 1 0002 1

5302

75395DCLIP, OUTSIDE MOULDING, NO.1

main75395-12090iCV4#,SV4#..ALPX,TOU,VX,ZX199406

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39355iCV4#,SV4#..HT199406

main76621-39365iCV4#,SV4#..SED199406

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39355iCV4#,SV4#..HT199406

main76622-39365iCV4#,SV4#..SED199406

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39425iCV4#,SV4#..HT199406

main76625-39435iCV4#,SV4#..SED199406

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39425iCV4#,SV4#..HT199406

main76626-39435iCV4#,SV4#..SED199406

76647RETAINER, QUARTER PANEL REAR MUDGUARD

main76647-32010iCV4#,SV4#199406

76871SPOILER, REAR

main76871-32900iCV4#,SV4#..HT..(TOU,VX)199406

main76871-32902iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-32030iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

main76872-32040iCV4#,SV4#..HT..(TOU,VX)199406

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-32010iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-32010iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

76891SPOILER, REAR NO.1

main76891-32901iCV4#,SV4#..HT..(TOU,VX)199406

main76891-32903iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-32030iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

sub76898-32030

main76897-32040iCV4#,SV4#..HT..(TOU,VX)199406

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-32030iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

main76898-32040iCV4#,SV4#..HT..(TOU,VX)199406

76927PROTECTER, REAR MUDGUARD, RH

main76927-39015iCV4#,SV4#199406

76928PROTECTER, REAR MUDGUARD, LH

main76928-39015iCV4#,SV4#199406

8117

9015950255

main90159-50255

9016460024

main90164-60024

9017906026

main90179-06026

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9046710128

main90467-10128

24 parts on this diagram · 2 diagrams in section
