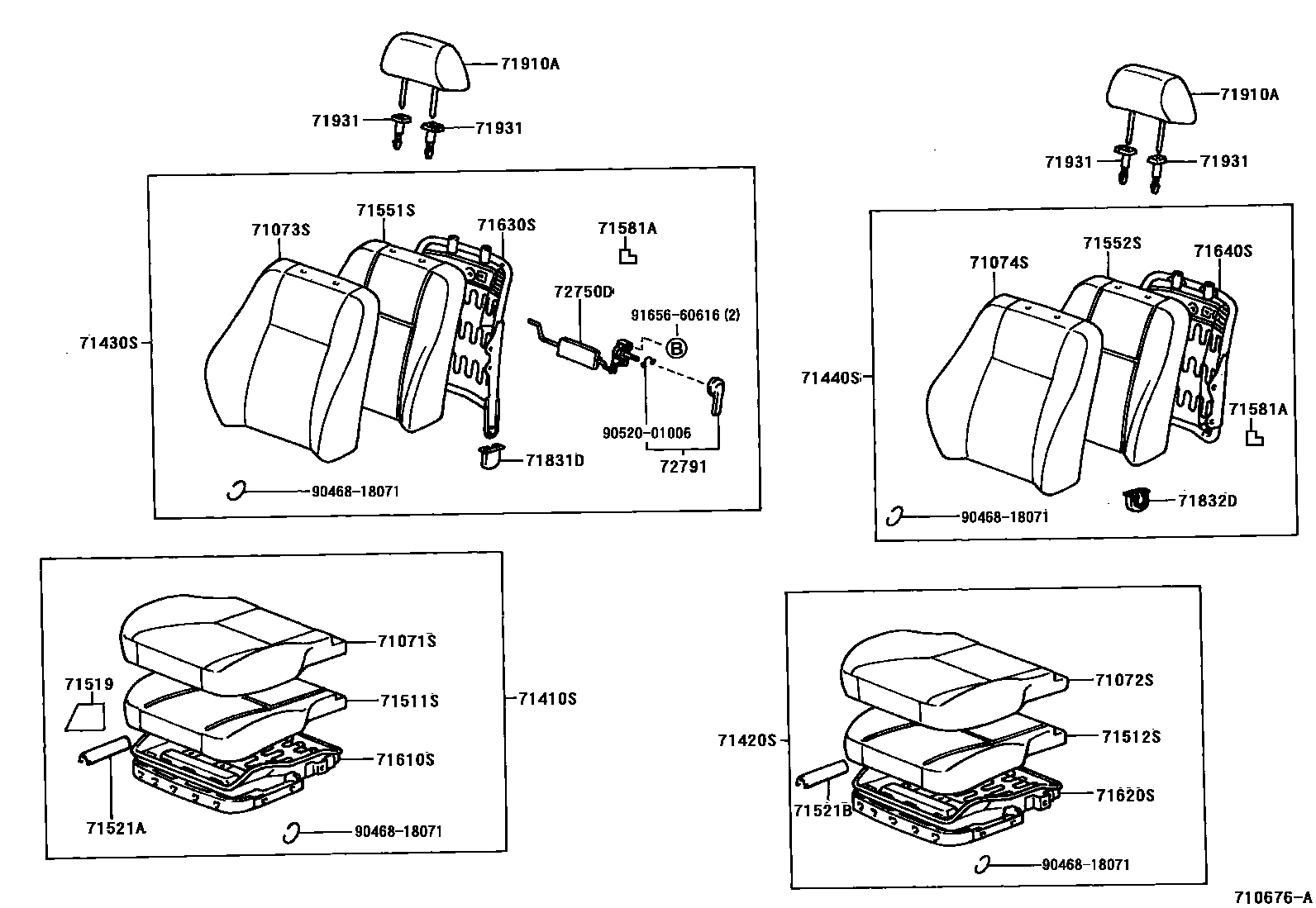

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1RH 0005 1LH

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3H270-B0iSV40,43..LUM199504-199605

main71071-3H270-B0iSV40,43..ETO199504-199605

main71071-3H270-E0iSV40,43..LUM199504-199605

main71071-3H270-E0iSV40,43..ETO199504-199605

main71071-3H280-B0iCV4#,SV40..VJ,XJ199605

MEDIUM GRAY,TRIM1#

main71071-3H280-E0iCV4#,SV40..VJ,XJ199605

MEDIUM OAK,TRIM4#

main71071-3H290-B0iCV40,SV40..VJ,XJ199406-199501

SHADOW GRAY,TRIM1#

main71071-3H290-E0iCV40,SV40..VJ,XJ199406-199501

OAK,TRIM4#

main71071-3H291-B0iCV4#,SV40..VJ,XJ199501-199605

SHADOW GRAY,TRIM1#

main71071-3H291-E0iCV4#,SV40..VJ,XJ199501-199605

OAK,TRIM4#

main71071-3H300-B0iSV40,41,43..ETO,LUM199406-199605

SHADOW GRAY,TRIM1#

main71071-3H300-E0iSV40,41,43..ETO,LUM199406-199605

OAK,TRIM4#

main71071-3H310-B0iCV4#,SV4#..ALPX,TOU199406-199605

SHADOW GRAY,TRIM1#

main71071-3H320-B0iCV4#,SV4#..VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main71071-3H320-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

main71071-3H330-B0iSV41,42,43..VX,ZX199406-199605

main71071-3H330-B0iSV41,43..ATM..VX199504-199605

main71071-3H330-E0iSV41,42,43..VX,ZX199406-199605

main71071-3H330-E0iSV41,43..ATM..VX199504-199605

main71071-3H340-B0iSV40,41,43..ETO,LUM199605

MEDIUM GRAY,TRIM1#

main71071-3H340-E0iSV40,41,43..ETO,LUM199605

MEDIUM OAK,TRIM4#

main71071-3H350-B0iCV4#,SV4#..ALPX,TOU199605-199608

MEDIUM GRAY,TRIM1#

sub71071-3H351

main71071-3H351-B0iCV4#,SV4#..ALPX,TOU199608

MEDIUM GRAY,TRIM1#

main71071-3H360-B0iCV4#,SV4#..VX,ZX199605

MEDIUM GRAY,TRIM1#

main71071-3H360-E0iCV4#,SV4#..VX,ZX199605

MEDIUM OAK,TRIM4#

main71071-3H370-B0iSV41,42,43..VX,ZX199605

main71071-3H370-E0iSV41,42,43..VX,ZX199605

main71071-3H380-B0iSV40,43..LUM199612

main71071-3H380-B0iSV40,43..ETO199612-199806

main71071-3H380-E0iSV40,43..LUM199612

main71071-3H380-E0iSV40,43..ETO199612-199806

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3H210-B0iSV40,43..LUM199504-199605

main71072-3H210-B0iSV40,43..LUM199504-199605

main71072-3H210-E0iSV40,43..LUM199504-199605

main71072-3H210-E0iSV40,43..ETO199504-199605

main71072-3H220-B0iCV4#,SV40..VJ,XJ199605

MEDIUM GRAY,TRIM1#

main71072-3H220-E0iCV4#,SV40..VJ,XJ199605

MEDIUM OAK,TRIM4#

main71072-3H270-B0iSV40,41,43..ETO,LUM199605

MEDIUM GRAY,TRIM1#

main71072-3H270-E0iSV40,41,43..ETO,LUM199605

MEDIUM OAK,TRIM4#

main71072-3H280-B0iCV4#,SV4#..ALPX,TOU199605-199608

MEDIUM GRAY,TRIM1#

sub71072-3H281

main71072-3H281-B0iCV4#,SV4#..ALPX,TOU199608

MEDIUM GRAY,TRIM1#

main71072-3H290-B0iCV40,SV40..VJ,XJ199406-199501

SHADOW GRAY,TRIM1#

main71072-3H290-E0iCV40,SV40..VJ,XJ199406-199501

OAK,TRIM4#

main71072-3H291-B0iCV4#,SV40..VJ,XJ199501-199605

SHADOW GRAY,TRIM1#

main71072-3H291-E0iCV4#,SV40..VJ,XJ199501-199605

OAK,TRIM4#

main71072-3H300-B0iSV40,41,43..ETO,LUM199406-199605

SHADOW GRAY,TRIM1#

main71072-3H300-E0iSV40,41,43..ETO,LUM199406-199605

OAK,TRIM4#

main71072-3H310-B0iCV4#,SV4#..ALPX,TOU199406-199605

SHADOW GRAY,TRIM1#

main71072-3H320-B0iCV4#,SV4#..VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main71072-3H320-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

main71072-3H330-B0iCV4#,SV4#..VX,ZX199605

MEDIUM GRAY,TRIM1#

main71072-3H330-E0iCV4#,SV4#..VX,ZX199605

MEDIUM OAK,TRIM4#

main71072-3H340-B0iSV40,43..LUM199612

main71072-3H340-B0iSV40,43..ETO199612-199806

main71072-3H340-E0iSV40,43..LUM199612

main71072-3H340-E0iSV40,43..ETO199612-199806

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32890-B0iSV40,43..LUM199504-199605

main71073-32890-B0iSV40,43..ETO199504-199605

main71073-32890-E0iSV40,43..LUM199504-199605

main71073-32890-E0iSV40,43..LUM199504-199605

main71073-3H060-B0iCV4#,SV40..VJ,XJ199605

MEDIUM GRAY,TRIM1#

main71073-3H060-E0iCV4#,SV40..VJ,XJ199605

MEDIUM OAK,TRIM4#

main71073-3H070-B0iCV40,SV40..VJ,XJ199406-199501

SHADOW GRAY,TRIM1#

main71073-3H070-E0iCV40,SV40..VJ,XJ199406-199501

OAK,TRIM4#

main71073-3H071-B0iCV4#,SV40..VJ,XJ199501-199605

SHADOW GRAY,TRIM1#

main71073-3H071-E0iCV4#,SV40..VJ,XJ199501-199605

OAK,TRIM4#

main71073-3H080-B0iSV40,41,43..ETO,LUM199406-199605

SHADOW GRAY,TRIM1#

main71073-3H080-E0iSV40,41,43..ETO,LUM199406-199605

OAK,TRIM4#

main71073-3H090-B0iCV4#,SV4#..ALPX,TOU199406-199605

SHADOW GRAY,TRIM1#

main71073-3H100-B0iCV4#,SV4#..VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main71073-3H100-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

main71073-3H110-B0iSV41,42,43..VX,ZX199406-199605

main71073-3H110-B0iSV41,42,43..VX199504-199605

main71073-3H110-E0iSV41,42,43..VX,ZX199406-199605

main71073-3H110-E0iSV41,42,43..VX199504-199605

main71073-3H120-B0iSV40,41,43..ETO,LUM199605

MEDIUM GRAY,TRIM1#

main71073-3H120-E0iSV40,41,43..ETO,LUM199605

MEDIUM OAK,TRIM4#

main71073-3H130-B0iCV4#,SV4#..ALPX,TOU199605-199608

MEDIUM GRAY,TRIM1#

sub71073-3H131

main71073-3H131-B0iCV4#,SV4#..ALPX,TOU199608

MEDIUM GRAY,TRIM1#

main71073-3H140-B0iCV4#,SV4#..VX,ZX199605

MEDIUM GRAY,TRIM1#

main71073-3H140-E0iCV4#,SV4#..VX,ZX199605

MEDIUM OAK,TRIM4#

main71073-3H150-B0iSV40,43..ETO199612-199806

main71073-3H150-B0iSV40,43..LUM199612

main71073-3H150-E0iSV40,43..ETO199612-199806

main71073-3H150-E0iSV40,43..LUM199612

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-32600-B0iSV40,43..ETO199504-199605

main71074-32600-B0iSV40,43..LUM199504-199605

main71074-32600-E0iSV40,43..ETO199504-199605

main71074-32600-E0iSV40,43..LUM199504-199605

main71074-32610-B0iCV4#,SV40..VJ,XJ199605

MEDIUM GRAY,TRIM1#

sub71073-3H060

main71074-32610-E0iCV4#,SV40..VJ,XJ199605

MEDIUM OAK,TRIM4#

sub71073-3H060

main71074-32620-B0iCV40,SV40..VJ,XJ199406-199501

SHADOW GRAY,TRIM1#

main71074-32620-E0iCV40,SV40..VJ,XJ199406-199501

OAK,TRIM4#

main71074-32621-B0iCV4#,SV40..VJ,XJ199501-199605

SHADOW GRAY,TRIM1#

main71074-32621-E0iCV4#,SV40..VJ,XJ199501-199605

OAK,TRIM4#

main71074-32630-B0iSV40,41,43..ETO,LUM199406-199605

SHADOW GRAY,TRIM1#

main71074-32630-E0iSV40,41,43..ETO,LUM199406-199605

OAK,TRIM4#

main71074-32640-B0iCV4#,SV4#..ALPX,TOU199406-199605

SHADOW GRAY,TRIM1#

main71074-32650-B0iCV4#,SV4#..VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main71074-32650-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

main71074-32660-B0iSV40,41,43..ETO,LUM199605

MEDIUM GRAY,TRIM1#

main71074-32660-E0iSV40,41,43..ETO,LUM199605

MEDIUM OAK,TRIM4#

main71074-32670-B0iCV4#,SV4#..ALPX,TOU199605-199608

MEDIUM GRAY,TRIM1#

sub71074-32671

main71074-32671-B0iCV4#,SV4#..ALPX,TOU199608

MEDIUM GRAY,TRIM1#

main71074-32680-B0iCV4#,SV4#..VX,ZX199605

MEDIUM GRAY,TRIM1#

main71074-32680-E0iCV4#,SV4#..VX,ZX199605

MEDIUM OAK,TRIM4#

main71074-32690-B0iSV40,43..ETO199612-199806

main71074-32690-B0iSV40,43..LUM199612

main71074-32690-E0iSV40,43..ETO199612-199806

main71074-32690-E0iSV40,43..LUM199612

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-3H160-B0iCV40,SV40..VJ,XJ199406-199501

***,SHADOW GRAY,TRIM1#

main71410-3H160-E0iCV40,SV40..VJ,XJ199406-199501

***,OAK,TRIM4#

main71410-3H161-B0iCV4#,SV40..VJ,XJ199501-199605

***,SHADOW GRAY,TRIM1#

main71410-3H161-E0iCV4#,SV40..VJ,XJ199501-199605

***,OAK,TRIM4#

main71410-3H170-B0iSV40,41,43..ETO,LUM199406-199605

***,SHADOW GRAY,TRIM1#

main71410-3H170-E0iSV40,41,43..ETO,LUM199406-199605

***,OAK,TRIM4#

main71410-3H180-B0iCV4#,SV4#..ALPX,TOU199406-199605

***,SHADOW GRAY,TRIM1#

main71410-3H190-B0iCV4#,SV4#..VX,ZX199406-199605

***,SHADOW GRAY,TRIM1#

main71410-3H190-E0iCV4#,SV4#..VX,ZX199406-199605

***,OAK,TRIM4#

main71410-3H200-B0iSV41,42,43..VX,ZX199406-199605

main71410-3H200-E0iSV41,42,43..VX,ZX199406-199605

main71410-3H220-B0iCV4#,SV40..VJ,XJ199605

***,MEDIUM GRAY,TRIM1#

main71410-3H220-E0iCV4#,SV40..VJ,XJ199605

***,MEDIUM OAK,TRIM4#

main71410-3H230-B0iSV40,41,43..ETO,LUM199605

***,MEDIUM GRAY,TRIM1#

main71410-3H230-E0iSV40,41,43..ETO,LUM199605

***,MEDIUM OAK,TRIM4#

main71410-3H240-B0iCV4#,SV4#..ALPX,TOU199605-199608

***,MEDIUM GRAY,TRIM1#

sub71410-3H241

main71410-3H241-B0iCV4#,SV4#..ALPX,TOU199608

***,MEDIUM GRAY,TRIM1#

main71410-3H250-B0iCV4#,SV4#..VX,ZX199605

***,MEDIUM GRAY,TRIM1#

main71410-3H250-E0iCV4#,SV4#..VX,ZX199605

***,MEDIUM OAK,TRIM4#

main71410-3H260-B0iSV41,42,43..VX,ZX199605

main71410-3H260-E0iSV41,42,43..VX,ZX199605

main71410-3H270-B0iSV40,43..LUM199612

main71410-3H270-B0iSV40,43..ETO199612-199806

main71410-3H270-E0iSV40,43..LUM199612

main71410-3H270-E0iSV40,43..ETO199612-199806

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-3H100-B0iCV4#,SV40..VJ,XJ199605

***,MEDIUM GRAY,TRIM1#

main71420-3H100-E0iCV4#,SV40..VJ,XJ199605

***,MEDIUM OAK,TRIM4#

main71420-3H110-B0iSV40,41,43..ETO,LUM199605

***,MEDIUM GRAY,TRIM1#

main71420-3H110-E0iSV40,41,43..ETO,LUM199605

***,MEDIUM OAK,TRIM4#

main71420-3H160-B0iCV40,SV40..VJ,XJ199406-199501

***,SHADOW GRAY,TRIM1#

main71420-3H160-E0iCV40,SV40..VJ,XJ199406-199501

***,OAK,TRIM4#

main71420-3H161-B0iCV4#,SV40..VJ,XJ199501-199605

***,SHADOW GRAY,TRIM1#

main71420-3H161-E0iCV4#,SV40..VJ,XJ199501-199605

***,OAK,TRIM4#

main71420-3H170-B0iSV40,41,43..ETO,LUM199406-199605

***,SHADOW GRAY,TRIM1#

main71420-3H170-E0iSV40,41,43..ETO,LUM199406-199605

***,OAK,TRIM4#

main71420-3H180-B0iCV4#,SV4#..ALPX,TOU199406-199605

***,SHADOW GRAY,TRIM1#

main71420-3H190-B0iCV4#,SV4#..VX,ZX199406-199605

***,SHADOW GRAY,TRIM1#

main71420-3H190-E0iCV4#,SV4#..VX,ZX199406-199605

***,OAK,TRIM4#

main71420-3H200-B0iCV4#,SV4#..ALPX,TOU199605-199608

***,MEDIUM GRAY,TRIM1#

sub71420-3H201

main71420-3H201-B0iCV4#,SV4#..ALPX,TOU199608

***,MEDIUM GRAY,TRIM1#

main71420-3H210-B0iCV4#,SV4#..VX,ZX199605

***,MEDIUM GRAY,TRIM1#

main71420-3H210-E0iCV4#,SV4#..VX,ZX199605

***,MEDIUM OAK,TRIM4#

main71420-3H220-B0iSV40,43..LUM199612

main71420-3H220-B0iSV40,43..ETO199612-199806

main71420-3H220-E0iSV40,43..LUM199612

main71420-3H220-E0iSV40,43..ETO199612-199806

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-32860-B0iCV40,SV40..VJ,XJ199406-199501

***,SHADOW GRAY,TRIM1#

main71430-32860-E0iCV40,SV40..VJ,XJ199406-199501

***,OAK,TRIM4#

main71430-32861-B0iCV4#,SV40..VJ,XJ199501-199605

***,SHADOW GRAY,TRIM1#

main71430-32861-E0iCV4#,SV40..VJ,XJ199501-199605

***,OAK,TRIM4#

main71430-3H030-B0iSV40,41,43..ETO,LUM199406-199605

***,SHADOW GRAY,TRIM1#

main71430-3H030-E0iSV40,41,43..ETO,LUM199406-199605

***,OAK,TRIM4#

main71430-3H040-B0iCV4#,SV4#..ALPX,TOU199406-199605

***,SHADOW GRAY,TRIM1#

main71430-3H050-B0iCV4#,SV4#..VX,ZX199406-199605

***,SHADOW GRAY,TRIM1#

main71430-3H050-E0iCV4#,SV4#..VX,ZX199406-199605

***,OAK,TRIM4#

main71430-3H060-B0iSV41,42,43..VX,ZX199406-199605

main71430-3H060-E0iSV41,42,43..VX,ZX199406-199605

main71430-3H080-B0iCV4#,SV40..VJ,XJ199605

***,MEDIUM GRAY,TRIM1#

main71430-3H080-E0iCV4#,SV40..VJ,XJ199605

***,MEDIUM OAK,TRIM4#

main71430-3H090-B0iSV40,41,43..ETO,LUM199605

***,MEDIUM GRAY,TRIM1#

main71430-3H090-E0iSV40,41,43..ETO,LUM199605

***,MEDIUM OAK,TRIM4#

main71430-3H100-B0iCV4#,SV4#..ALPX,TOU199605-199608

***,MEDIUM GRAY,TRIM1#

sub71430-3H101

main71430-3H101-B0iCV4#,SV4#..ALPX,TOU199608

***,MEDIUM GRAY,TRIM1#

main71430-3H110-B0iCV4#,SV4#..VX,ZX199605

***,MEDIUM GRAY,TRIM1#

main71430-3H110-E0iCV4#,SV4#..VX,ZX199605

***,MEDIUM OAK,TRIM4#

main71430-3H120-B0iSV40,43..ETO199612-199806

main71430-3H120-B0iSV40,43..LUM199612

main71430-3H120-E0iSV40,43..ETO199612-199806

main71430-3H120-E0iSV40,43..LUM199612

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-32740-B0iCV40,SV40..VJ,XJ199406-199501

***,SHADOW GRAY,TRIM1#

main71440-32740-E0iCV40,SV40..VJ,XJ199406-199501

***,OAK,TRIM4#

main71440-32741-B0iCV4#,SV40..VJ,XJ199501-199605

***,SHADOW GRAY,TRIM1#

main71440-32741-E0iCV4#,SV40..VJ,XJ199501-199605

***,OAK,TRIM4#

main71440-32750-B0iSV40,41,43..ETO,LUM199406-199605

***,SHADOW GRAY,TRIM1#

main71440-32750-E0iSV40,41,43..ETO,LUM199406-199605

***,OAK,TRIM4#

main71440-32760-B0iCV4#,SV4#..ALPX,TOU199406-199605

***,SHADOW GRAY,TRIM1#

main71440-32770-B0iCV4#,SV4#..VX,ZX199406-199605

***,SHADOW GRAY,TRIM1#

main71440-32770-E0iCV4#,SV4#..VX,ZX199406-199605

***,OAK,TRIM4#

main71440-32790-B0iCV4#,SV40..VJ,XJ199605

***,MEDIUM GRAY,TRIM1#

main71440-32790-E0iCV4#,SV40..VJ,XJ199605

***,MEDIUM OAK,TRIM4#

main71440-32800-B0iSV40,41,43..ETO,LUM199605

***,MEDIUM GRAY,TRIM1#

main71440-32800-E0iSV40,41,43..ETO,LUM199605

***,MEDIUM OAK,TRIM4#

main71440-32810-B0iCV4#,SV4#..ALPX,TOU199605-199608

***,MEDIUM GRAY,TRIM1#

sub71440-32811

main71440-32811-B0iCV4#,SV4#..ALPX,TOU199608

***,MEDIUM GRAY,TRIM1#

main71440-32820-B0iCV4#,SV4#..VX,ZX199605

***,MEDIUM GRAY,TRIM1#

main71440-32820-E0iCV4#,SV4#..VX,ZX199605

***,MEDIUM OAK,TRIM4#

main71440-32830-B0iSV40,43..ETO199612-199806

main71440-32830-B0iSV40,43..LUM199612

main71440-32830-E0iSV40,43..ETO199612-199806

main71440-32830-E0iSV40,43..LUM199612

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32180iCV4#,SV4#199406-199605

main71511-32200iCV4#,SV4#199605

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32180iCV4#,SV4#199406-199605

main71511-32200iCV4#,SV4#199605

71519PAD, FRONT SEAT CUSHION COVER SIDE

main71519-32010iCV4#,SV4#199605

71521APAD,FRONT SEAT CUSHION SILENCER

main71521-32020iCV4#,SV4#199507

71521BPAD,FRONT SEAT CUSHION SILENCER

main71521-32020iCV4#,SV4#199605

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32150iCV4#,SV4#199406-199605

main71551-32170iCV4#,SV4#199605

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32150iCV4#,SV4#199406-199605

main71551-32170iCV4#,SV4#199605

71581APAD, FRONT SEATBACK CORNER, A

main71581-32020iCV4#,SV4#199612

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32100iCV4#,SV4#199406-199605

main71610-32120iSV41,42,43..VX,ZX199406-199605

main71610-32120iSV41,42,43..VX199504-199605

main71610-32130iCV4#,SV4#199605

main71610-32140iSV41,42,43..VX,ZX199605

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-32030iCV4#,SV4#199406-199605

main71620-32040iCV4#,SV4#199605

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-32210iCV4#,SV40,41,43..ETO,LUM,VJ,XJ199605

main71013-32220iSV40,43..ETO199612-199806

main71013-32220iSV40,43..LUM199612

main71013-32220iCV4#,SV4#..ALPX,TOU,VX,ZX199605

main71630-32200iCV4#,SV40,41,43..ETO,LUM,VJ,XJ199406-199605

main71630-32210iCV4#,SV4#..ALPX,TOU,VX,ZX199406-199605

main71630-32220iSV41,43..ATM..VX199504-199605

main71630-32220iSV41,42,43..VX,ZX199406-199605

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71013-32210iCV4#,SV4#199605

main71640-32080iCV4#,SV4#199406-199605

71831DCOVER, FRONT SEAT HINGE, RH

main71831-16010iCV4#,SV4#199406-199605

71832DCOVER, FRONT SEAT HINGE, LH

main71831-16010iCV4#,SV4#199406-199605

71910AHEADREST ASSY, FRONT SEAT

main71910-32600-B2iCV4#,SV40,41,43..ETO,LUM,VJ,XJ199406-199605

MEDIUM GRAY,TRIM1#

sub71910-32600

main71910-32600-E2iCV4#,SV40,41,43..ETO,LUM,VJ,XJ199406-199605

MEDIUM OAK,TRIM4#

sub71910-32600

main71910-32610-B1iCV4#,SV4#..ALPX,TOU199406-199605

SHADOW GRAY,TRIM1#

sub71910-32610

main71910-32620-B1iCV4#,SV4#..VX,ZX199406-199605

MEDIUM GRAY,TRIM1#

sub71910-32620

main71910-32620-E2iCV4#,SV4#..VX,ZX199406-199605

MEDIUM OAK,TRIM4#

sub71910-32620

main71910-32640-B1iSV40,43..LUM199504-199605

main71910-32640-B1iSV40,43..LUM199504-199605

main71910-32640-E1iSV40,43..LUM199504-199605

main71910-32640-E1iSV40,43..LUM199504-199605

main71910-32650-B0iCV4#,SV40..VJ,XJ199605

MEDIUM GRAY,TRIM1#

main71910-32650-E0iCV4#,SV40..VJ,XJ199605

MEDIUM OAK,TRIM4#

main71910-32660-B0iSV40,41,43..ETO,LUM199605

MEDIUM GRAY,TRIM1#

main71910-32660-E0iSV40,41,43..ETO,LUM199605

MEDIUM OAK,TRIM4#

main71910-32670-B0iCV4#,SV4#..ALPX,TOU199605

MEDIUM GRAY,TRIM1#

main71910-32680-B0iSV40,43..ETO199612-199806

main71910-32680-B0iSV40,43..LUM199612

main71910-32680-B0iCV4#,SV4#..VX,ZX199605

MEDIUM GRAY,TRIM1#

main71910-32680-E0iSV40,43..ETO199612-199806

main71910-32680-E0iCV4#,SV4#..VX,ZX199605

MEDIUM OAK,TRIM4#

main71910-32680-E0iSV40,43..LUM199612

71931SUPPORT, FRONT SEAT HEADREST

main71930-32020-B0iCV4#,SV4#199406-199605

sub71930-32020

main71930-32020-B2iCV4#,SV4#199605

sub71930-32020

main71930-32020-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406-199605

sub71930-32020

main71930-32020-E6iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199605

sub71930-32020

main71931-32020-B0iCV4#,SV4#199406-199605

sub71931-32020

main71931-32020-B2iCV4#,SV4#199605

sub71931-32020

main71931-32020-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406-199605

sub71931-32020

main71931-32020-E6iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199605

sub71931-32020

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-32060iSV40,43..LUM199504-199605

main72750-32060iCV4#,SV4#..ALPX,TOU,VX,ZX199406-199605

main72750-32060iSV40,43..LUM199504-199605

main72750-32070iCV4#,SV4#..ALPX,TOU,VX,ZX199605

main72750-32070iSV40,43..LUM199612

main72750-32070iSV40,43..ETO199612-199806

72791LEVER, LUMBAR SUPPORT

main72791-20050-B3iSV40,43..ETO199612-199806

sub72791-20050

main72791-20050-B3iSV40,43..LUM199612

sub72791-20050

main72791-20050-B3iCV4#,SV4#..ALPX,TOU,VX,ZX199605

MD.GRAY,TRIM1#

sub72791-20050

main72791-20050-E2iSV40,43..LUM199612

sub72791-20050

main72791-20050-E2iSV40,43..ETO199612-199806

sub72791-20050

main72791-20050-E2iCV4#,SV4#..VX,ZX199605

MD.OAK,TRIM4#

sub72791-20050

main72791-30030-B1iSV40,43..LUM199504-199605

sub72791-30030

main72791-30030-B1iSV40,43..LUM199504-199605

sub72791-30030

main72791-30030-B1iCV4#,SV4#..ALPX,TOU,VX,ZX199406-199605

SHADOW GRAY,TRIM1#

sub72791-30030

main72791-30030-E0iSV40,43..LUM199504-199605

sub72791-30030

main72791-30030-E0iSV40,43..ETO199504-199605

sub72791-30030

main72791-30030-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

sub72791-30030

9046818071

main90468-18071

9052001006

main90520-01006

9165660616

main91656-60616

29 parts on this diagram · 5 diagrams in section
