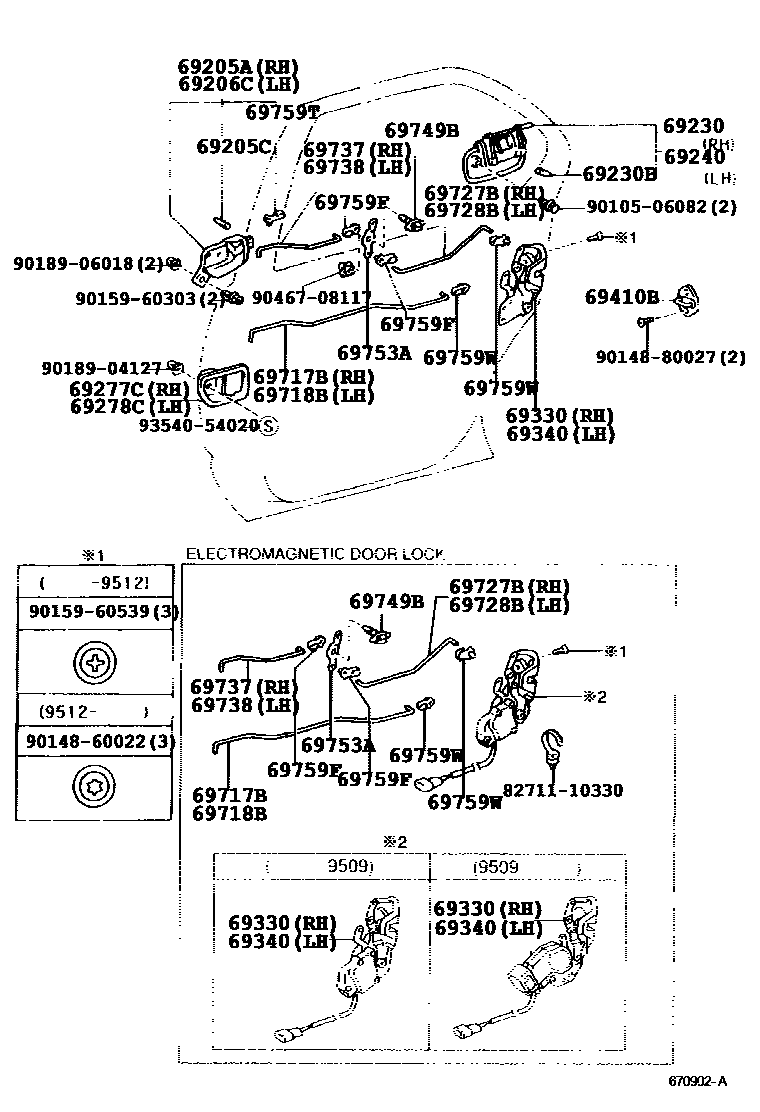

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20140-B0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub69205-20140

main69205-20140-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub69205-20140

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iCV4#,SV4#199406

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20140-B0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub69206-20140

main69206-20140-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub69206-20140

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-32060-A0iCV4#,SV4#..SED199406

SUPER WHITE 2,040

main69230-32060-A1iSV40,43..LUM199504-199605

main69230-32060-A1iCV4#,SV4#..SED199406-199605

WARM GRAY PM,22Y

main69230-32060-B0iCV4#,SV4#..SED199406-199605

LT.GRAIGE ME.,1A2

main69230-32060-B1iCV4#,SV4#..SED199406-199605

DK BLUISH GRAY MICA,29Y

main69230-32060-B2iCV4#,SV4#..SED199406

SILVER ME,199

main69230-32060-E0iCV4#,SV4#..SED199605

FLAXEN MM,4M7

main69230-32060-G0iCV4#,SV4#..SED199406

DK GREEN MICA,6M1

main69230-32060-J0iCV4#,SV4#..SED199406-199605

DK.BLUE MM,8G5

main69230-32060-J1iCV4#,SV4#..SED199605

DK.BLUE MC.GR.,8L8

main69230-32070-A0iCV4#,SV4#..HT199406

SUPER WHITE 2,040

sub69230-32070

main69230-32070-A1iSV40,43..ETO199504-199605

sub69230-32070

main69230-32070-A1iCV4#,SV4#..HT..(TOU,VX)199406-199605

WARM GRAY PM,22Y

sub69230-32070

main69230-32070-B0iCV4#,SV4#..HT199406-199605

LT.GRAIGE ME.,1A2

sub69230-32070

main69230-32070-B1iCV4#,SV4#..HT..(TOU,VX)199406-199605

DK BLUISH GRAY MICA,29Y

sub69230-32070

main69230-32070-B2iCV43,SV40..ATM..VJ199512-199605

sub69230-32070

main69230-32070-B2iCV4#,SV4#..HT199406

SILVER ME,199

sub69230-32070

main69230-32070-E0iCV4#,SV4#..HT199605

FLAXEN MM,4M7

sub69230-32070

main69230-32070-G0iCV4#,SV4#..HT199406

DK GREEN MICA,6M1

sub69230-32070

main69230-32070-J0iCV4#,SV4#..HT199406-199605

DK.BLUE MM,8G5

sub69230-32070

main69230-32070-J1iCV4#,SV4#..HT199605

DK.BLUE MC.GR.,8L8

sub69230-32070

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iCV4#,SV4#199406

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-32060-A0iCV4#,SV4#..SED199406

SUPER WHITE 2,040

main69240-32060-A1iSV40,43..LUM199504-199605

main69240-32060-A1iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406-199605

WARM GRAY PM,22Y

main69240-32060-B0iCV4#,SV4#..SED199406-199605

LT.GRAIGE ME.,1A2

main69240-32060-B1iCV4#,SV4#..SED199406-199605

DK BLUISH GRAY MICA,29Y

main69240-32060-B2iCV4#,SV4#..SED199406

SILVER ME,199

main69240-32060-E0iCV4#,SV4#..SED199605

FLAXEN MM,4M7

main69240-32060-G0iCV4#,SV4#..SED199406

DK GREEN MICA,6M1

main69240-32060-J0iCV4#,SV4#..SED199406-199605

DK.BLUE MM,8G5

main69240-32060-J1iCV4#,SV4#..SED199605

DK.BLUE MC.GR.,8L8

main69240-32070-A0iCV4#,SV4#..HT199406

SUPER WHITE 2,040

sub69240-32070

main69240-32070-A1iCV4#,SV4#..HT199406-199605

WARM GRAY PM,22Y

sub69240-32070

main69240-32070-A1iSV40,43..ETO199504-199605

sub69240-32070

main69240-32070-B0iCV4#,SV4#..HT199406-199605

LT.GRAIGE ME.,1A2

sub69240-32070

main69240-32070-B1iCV4#,SV4#..HT..(TOU,VX)199406-199605

DK BLUISH GRAY MICA,29Y

sub69240-32070

main69240-32070-B2iCV4#,SV4#..HT199406

SILVER ME,199

sub69240-32070

main69240-32070-B2iCV43,SV40..ATM..VJ199512-199605

sub69240-32070

main69240-32070-E0iCV4#,SV4#..HT199605

FLAXEN MM,4M7

sub69240-32070

main69240-32070-G0iCV4#,SV4#..HT199406

DK GREEN MICA,6M1

sub69240-32070

main69240-32070-J0iCV4#,SV4#..HT199406-199605

DK.BLUE MM,8G5

sub69240-32070

main69240-32070-J1iCV4#,SV4#..HT199605

DK.BLUE MC.GR.,8L8

sub69240-32070

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-32070-B0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub69277-32070

main69277-32070-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub69277-32070

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-32060-B0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

main69278-32060-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69050-32220iCV4#,SV40..VJ199605

main69305-32040iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199509

main69305-32041iCV4#,SV40..XJ199509-199605

main69305-32050iCV4#,SV40..XJ199406-199509

main69305-32051iCV4#,SV40..XJ199509-199605

main69305-32060iCV4#,SV40..XJ199605

main69305-32070iCV4#,SV40..XJ199605

main69330-32330iCV4#,SV40..VJ199406-199510

sub69330-32331

main69330-32331iCV4#,SV4#..HT..(ETO,TOU,VX)199510-199605

main69330-32340iCV4#,SV40..VJ199406-199510

sub69330-32341

main69330-32341iCV4#,SV40..VJ199510-199605

main69330-32360iCV4#,SV40..VJ199605

69340LOCK ASSY, REAR DOOR, LH

main69060-32220iCV4#,SV4#..HT..(ETO,TOU,VX)199605

main69306-32040iCV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)199406-199509

main69306-32041iCV4#,SV40..XJ199509-199605

main69306-32050iCV4#,SV40..XJ199406-199509

main69306-32051iCV4#,SV40..XJ199509-199605

main69306-32060iCV4#,SV40..XJ199605

main69306-32070iCV4#,SV40..XJ199605

main69340-32330iCV4#,SV40..VJ199406-199510

sub69340-32331

main69340-32331iCV4#,SV4#..HT..(ETO,TOU,VX)199510-199605

main69340-32340iCV4#,SV40..VJ199406-199510

sub69340-32341

main69340-32341iCV4#,SV40..VJ199510-199605

main69340-32360iCV4#,SV40..VJ199605

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iCV4#,SV4#199406

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-32080iCV4#,SV4#..SED199406

main69713-32090iCV4#,SV4#..HT199406

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-32080iCV4#,SV4#..SED199406

main69714-32090iCV4#,SV4#..HT199406

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-32050iCV4#,SV4#..SED199406-199605

sub69727-32070

main69727-32060iCV4#,SV4#..HT199406-199605

main69727-32070iCV4#,SV4#..SED199605

main69727-32080iCV4#,SV4#..HT199605

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69728-32050iCV4#,SV4#..SED199406-199605

sub69728-32070

main69728-32060iCV4#,SV4#..HT199406-199605

main69728-32070iCV4#,SV4#..SED199605

main69728-32080iCV4#,SV4#..HT199605

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-32080iCV4#,SV4#..SED199406

main69737-32100iCV4#,SV4#..HT199406

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-32080iCV4#,SV4#..SED199406

main69738-32100iCV4#,SV4#..HT199406

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iCV4#,SV4#199406

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-32070iCV4#,SV4#199406

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20380iCV4#,SV4#199406-199605

main69759-20380iCV4#,SV4#199605

main69759-24030iCV4#,SV4#..SED199605

PINK

main69759-24030iCV4#,SV4#..HT199406-199605

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iCV4#,SV4#199406

PINK

main69759-24070iCV4#,SV4#199406

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iCV4#,SV4#199406

GREEN

main69759-24060iCV4#,SV4#199406

GRAY

8271110330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10330

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9015960303

main90159-60303

9015960539

main90159-60539

9018904127

main90189-04127

9018906018

main90189-06018

9046708117

main90467-08117

9354054020

main93540-54020

32 parts on this diagram · 2 diagrams in section
