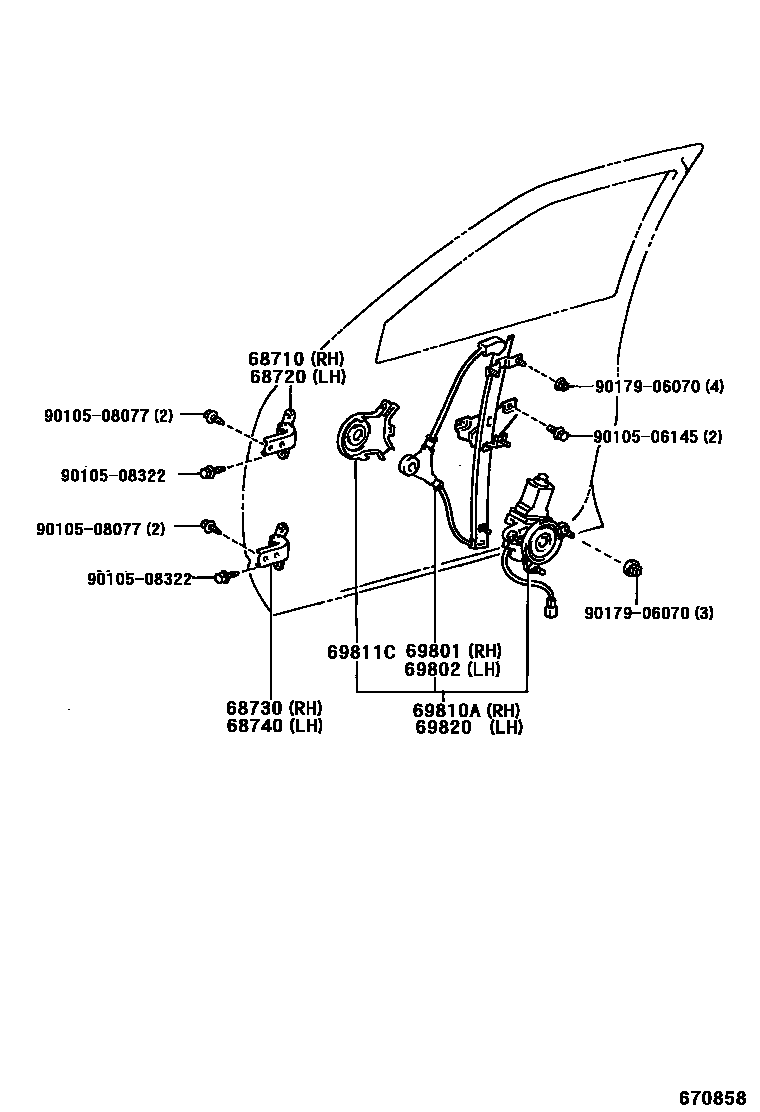

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32060iCV4#,SV4#199406

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32060iCV4#,SV4#199406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-32060iCV4#,SV4#199406

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-32060iCV4#,SV4#199406

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-32080iCV4#,SV4#..SED199406

main69801-32090iCV4#,SV4#..HT199406

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-32080iCV4#,SV4#..SED199406

main69802-32090iCV4#,SV4#..HT199406

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-32130iCV4#,SV4#..SED199406-199704

main69810-32140iCV4#,SV4#..HT199406-199704

main69810-32150iCV4#,SV4#..HT199704

main69810-32160iCV4#,SV4#..SED199704

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-22120iCV4#,SV4#..SED199406

main69811-32050iCV4#,SV4#..HT199406

main69812-22030iCV4#,SV4#..SED199406

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-32130iCV4#,SV4#..SED199406

main69820-32140iCV4#,SV4#..HT199406

9010506145

main90105-06145

9010508077

main90105-08077

9010508322

main90105-08322

9017906070

main90179-06070

13 parts on this diagram · 2 diagrams in section
