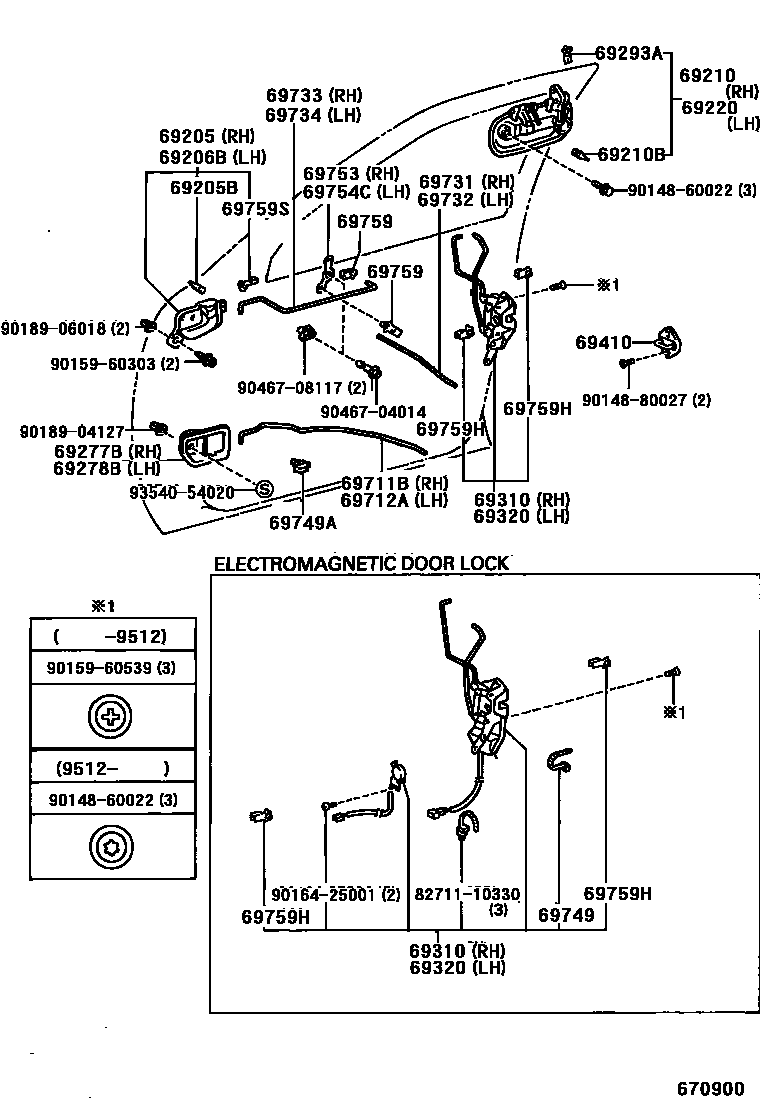

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-32091
sub69210-32091
SUPER WHITE 2,040
WARM GRAY PM,22Y
LT.GRAIGE ME.,1A2
DK BLUISH GRAY MICA,29Y
SILVER ME,199
FLAXEN MM,4M7
DK GREEN MICA,6M1
DK.BLUE MM,8G5
DK.BLUE MC.GR.,8L8
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-32091
sub69220-32091
SUPER WHITE 2,040
WARM GRAY PM,22Y
LT.GRAIGE ME.,1A2
DK BLUISH GRAY MICA,29Y
SILVER ME,199
FLAXEN MM,4M7
DK GREEN MICA,6M1
DK.BLUE MM,8G5
DK.BLUE MC.GR.,8L8
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
NATURAL
NATURAL
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
PINK
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
NATURAL
GREEN
GRAY
69759SSNAP, FRONT DOOR INSIDE HANDLE
PINK
8271110330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10330
9014860022
main90148-60022
9014880027
main90148-80027
9015960303
main90159-60303
9015960539
main90159-60539
9016425001
main90164-25001
9018904127
main90189-04127
9018906018
main90189-06018
9046704014
main90467-04014
9046708117
main90467-08117
9354054020
main93540-54020
36 parts on this diagram · 2 diagrams in section
