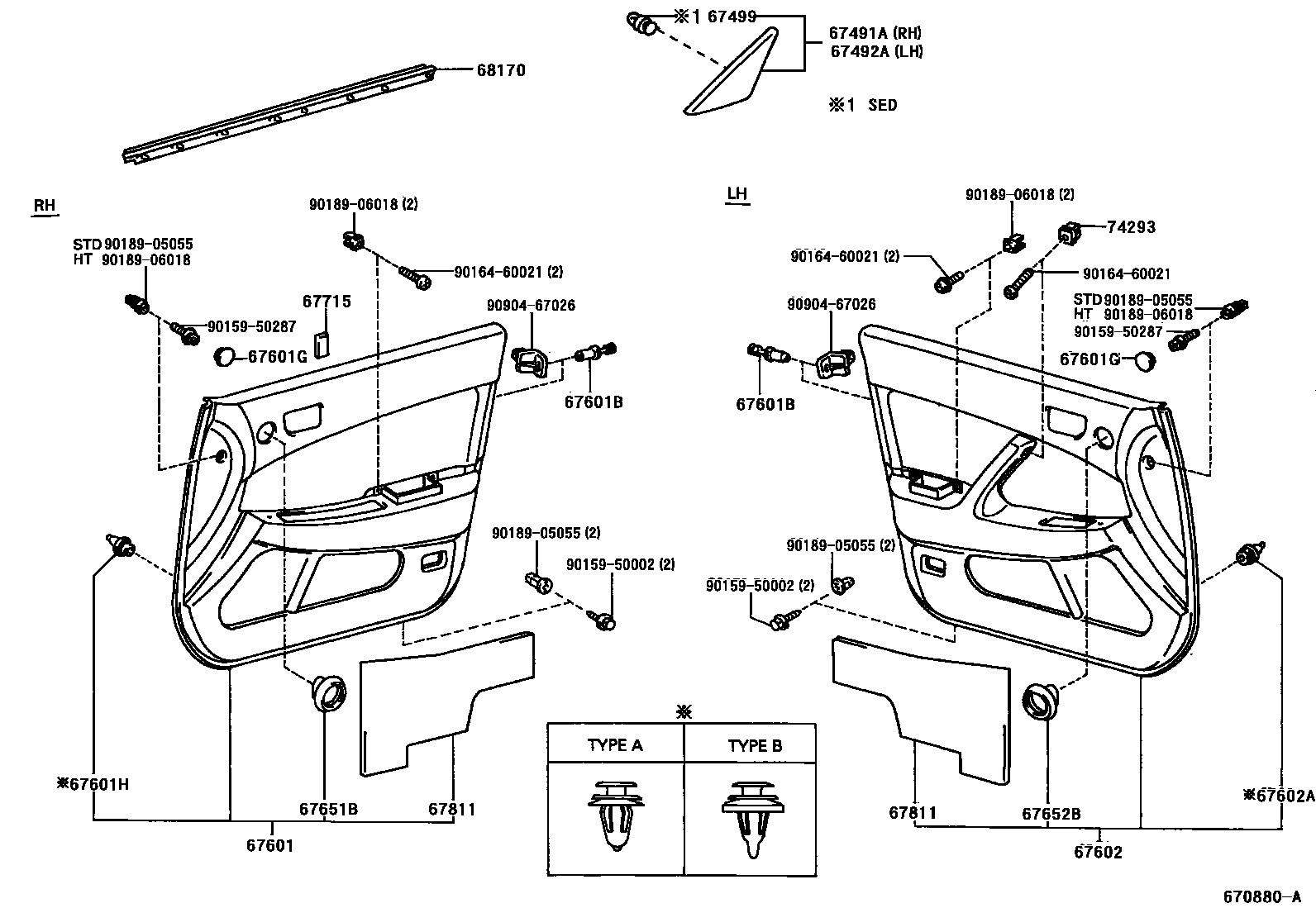

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-32130iCV4#,SV4#..SED199406

main67491-32140iCV4#,SV4#..HT199406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-32130iCV4#,SV4#..SED199406

main67492-32140iCV4#,SV4#..HT199406

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iCV4#,SV4#..SED199406-199806

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-3H010-B0iCV4#,SV40,41,43..LUM,XJ199406-199605

SHADOW GRAY,TRIM1#

main67610-3H010-E0iCV4#,SV40,41,43..LUM,XJ199406-199605

OAK,TRIM4#

main67610-3H070-B0iCV4#,SV4#..SED..(ALPX,TOU)199406-199605

SHADOW GRAY,TRIM1#

main67610-3H090-B0iSV41,42..SED..(ALPX,TOU)199406-199605

main67610-3H100-B0iSV40,43..LUM199504-199605

main67610-3H100-B0iCV4#,SV4#..ZX199406-199605

SHADOW GRAY,TRIM1#

main67610-3H100-E0iCV4#,SV4#..ZX199406-199605

OAK,TRIM4#

main67610-3H110-B0iCV4#,SV4#..ZX199406-199605

main67610-3H110-E0iCV4#,SV4#..ZX199406-199605

main67610-3H120-B0iCV4#,SV40,41,43..ETO,VJ199406-199605

SHADOW GRAY,TRIM1#

main67610-3H120-E0iCV4#,SV40,41,43..ETO,VJ199406-199605

OAK,TRIM4#

main67610-3H130-B0iSV42..HT..TOU199406-199605

SHADOW GRAY,TRIM1#

main67610-3H140-B0iSV42..HT..TOU199406-199605

main67610-3H150-B0iCV4#,SV4#..VX199406-199605

SHADOW GRAY,TRIM1#

main67610-3H150-B0iSV40,43..ETO199504-199605

main67610-3H150-E0iCV4#,SV4#..VX199406-199605

OAK,TRIM4#

main67610-3H160-B0iCV4#,SV4#..VX199406-199605

main67610-3H160-E0iCV4#,SV4#..VX199406-199605

main67610-3H170-E0iSV40,43..LUM199504-199605

main67610-3H180-E0iSV40,43..ETO199504-199605

main67610-3H190-B0iCV4#,SV40,41,43..LUM,XJ199605

SHADOW GRAY,TRIM1#

main67610-3H190-E0iCV4#,SV40,41,43..LUM,XJ199605

OAK,TRIM4#

main67610-3H200-B0iCV4#,SV4#..SED..(ALPX,TOU)199605

XXXX,TRIM1#

main67610-3H210-B0iSV41,42..SED..(ALPX,TOU)199605

main67610-3H220-B0iSV40,43..LUM199612

main67610-3H220-B0iCV4#,SV4#..ZX199605

SHADOW GRAY,TRIM1#

main67610-3H220-E0iSV40,43..LUM199612

main67610-3H220-E0iCV4#,SV4#..ZX199605

OAK,TRIM4#

main67610-3H230-B0iSV41,42..ZX199605

main67610-3H230-E0iSV41,42..ZX199605

main67610-3H240-B0iCV4#,SV40,41,43..ETO,VJ199605

SHADOW GRAY,TRIM1#

main67610-3H240-E0iCV4#,SV40,41,43..ETO,VJ199605

OAK,TRIM4#

main67610-3H250-B0iSV42..HT..TOU199605

SHADOW GRAY,TRIM1#

main67610-3H260-B0iSV42..HT..TOU199605

main67610-3H270-B0iCV4#,SV4#..VX199605

SHADOW GRAY,TRIM1#

main67610-3H270-B0iSV40,43..ETO199612-199806

main67610-3H270-E0iCV4#,SV4#..VX199605

OAK,TRIM4#

main67610-3H270-E0iSV40,43..ETO199612-199806

main67610-3H280-B0iSV41,42..VX199605

main67610-3H280-E0iSV41,42..VX199605

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-E0iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub90467-07066

main90467-07066-P0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub90467-07066

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B0iCV4#,SV4#199406

SHADOW GRAY,TRIM1#

sub90950-01800

main90950-01800-E1iCV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX199406

OAK,TRIM4#

sub90950-01800

67601HRETAINER, DOOR TRIM, RH

main67771-12050iCV4#,SV4#..SED199406

main67771-32140iCV4#,SV4#..HT199406

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67050-32010-B0iCV4#,SV40,41,43..LUM,XJ199605

SHADOW GRAY,TRIM1#

main67050-32010-E0iCV4#,SV40,41,43..LUM,XJ199605

OAK,TRIM4#

main67050-32020-B0iCV4#,SV4#..SED..(ALPX,TOU)199605

SHADOW GRAY,TRIM1#

main67050-32030-B0iSV41,42..SED..(ALPX,TOU)199605

main67050-32040-B0iSV40,43..LUM199612

main67050-32040-B0iCV4#,SV4#..ZX199605

SHADOW GRAY,TRIM1#

main67050-32040-E0iCV4#,SV4#..ZX199605

OAK,TRIM4#

main67050-32040-E0iSV40,43..LUM199612

main67050-32050-B0iSV41,42..ZX199605

main67050-32050-E0iSV41,42..ZX199605

main67050-32060-B0iCV4#,SV40,41,43..ETO,VJ199605

SHADOW GRAY,TRIM1#

main67050-32060-E0iCV4#,SV40,41,43..ETO,VJ199605

OAK,TRIM4#

main67050-32070-B0iSV42..HT..TOU199605

SHADOW GRAY,TRIM1#

main67050-32080-B0iSV42..HT..TOU199605

main67050-32090-B0iSV40,43..ETO199612-199806

main67050-32090-B0iCV4#,SV4#..VX199605

SHADOW GRAY,TRIM1#

main67050-32090-E0iSV40,43..ETO199612-199806

main67050-32090-E0iCV4#,SV4#..VX199605

OAK,TRIM4#

main67050-32100-B0iSV41,42..VX199605

main67050-32100-E0iSV41,42..VX199605

main67620-3H670-B0iCV4#,SV40,41,43..LUM,XJ199406-199605

SHADOW GRAY,TRIM1#

main67620-3H670-E0iCV4#,SV40,41,43..LUM,XJ199406-199605

OAK,TRIM4#

main67620-3H730-B0iCV4#,SV4#..SED..(ALPX,TOU)199406-199605

SHADOW GRAY,TRIM1#

main67620-3H750-B0iSV41,42..SED..(ALPX,TOU)199406-199605

main67620-3H760-B0iSV40,43..LUM199504-199605

main67620-3H760-B0iCV4#,SV4#..ZX199406-199605

SHADOW GRAY,TRIM1#

main67620-3H760-E0iCV4#,SV4#..ZX199406-199605

OAK,TRIM4#

main67620-3H770-B0iCV4#,SV4#..ZX199406-199605

main67620-3H770-E0iCV4#,SV4#..ZX199406-199605

main67620-3H780-B0iCV4#,SV40,41,43..ETO,VJ199406-199605

SHADOW GRAY,TRIM1#

main67620-3H780-E0iCV4#,SV40,41,43..ETO,VJ199406-199605

OAK,TRIM4#

main67620-3H790-B0iSV42..HT..TOU199406-199605

SHADOW GRAY,TRIM1#

main67620-3H800-B0iSV42..HT..TOU199406-199605

main67620-3H810-B0iCV4#,SV4#..VX199406-199605

SHADOW GRAY,TRIM1#

main67620-3H810-B0iSV40,43..ETO199504-199605

main67620-3H810-E0iCV4#,SV4#..VX199406-199605

OAK,TRIM4#

main67620-3H820-B0iCV4#,SV4#..VX199406-199605

main67620-3H820-E0iCV4#,SV4#..VX199406-199605

main67620-3H830-E0iSV40,43..LUM199504-199605

main67620-3H840-E0iSV40,43..ETO199504-199605

67602ARETAINER, DOOR TRIM, LH

main67771-12050iCV4#,SV4#..SED199406

main67771-32140iCV4#,SV4#..SED199406

67651BGRILLE, SPEAKER DOOR, RH

main67651-32070-B0iCV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main67651-32070-E0iCV4#,SV4#..VX,ZX199406-199605

OAK,TRIM4#

67652BGRILLE, SPEAKER DOOR, LH

main67652-32070-B0iCV4#,SV40,43..VX,ZX;SV41,42..ALPX,TOU,VX,ZX199406-199605

SHADOW GRAY,TRIM1#

main67652-32070-E0iSV41,42..VX,ZX199406-199605

OAK,TRIM4#

67715PAD, DOOR TRIM, NO.1

main67713-32040iCV40,SV4#..SED199406-199411

67811PAD, FRONT DOOR SILENCER

main67811-32040iCV4#,SV4#199406-199806

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-32100iCV4#,SV4#..HT199406

main68171-32020iCV4#,SV4#..SED199406

main68172-32020iCV4#,SV4#..SED199406

main68220-32110iCV4#,SV4#..HT199406

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010iCV4#,SV4#199406

9015950002

main90159-50002

9015950287

main90159-50287

9016460021

main90164-60021

9018905055

main90189-05055

9018906018

main90189-06018

9090467026

main90904-67026

21 parts on this diagram · 3 diagrams in section
