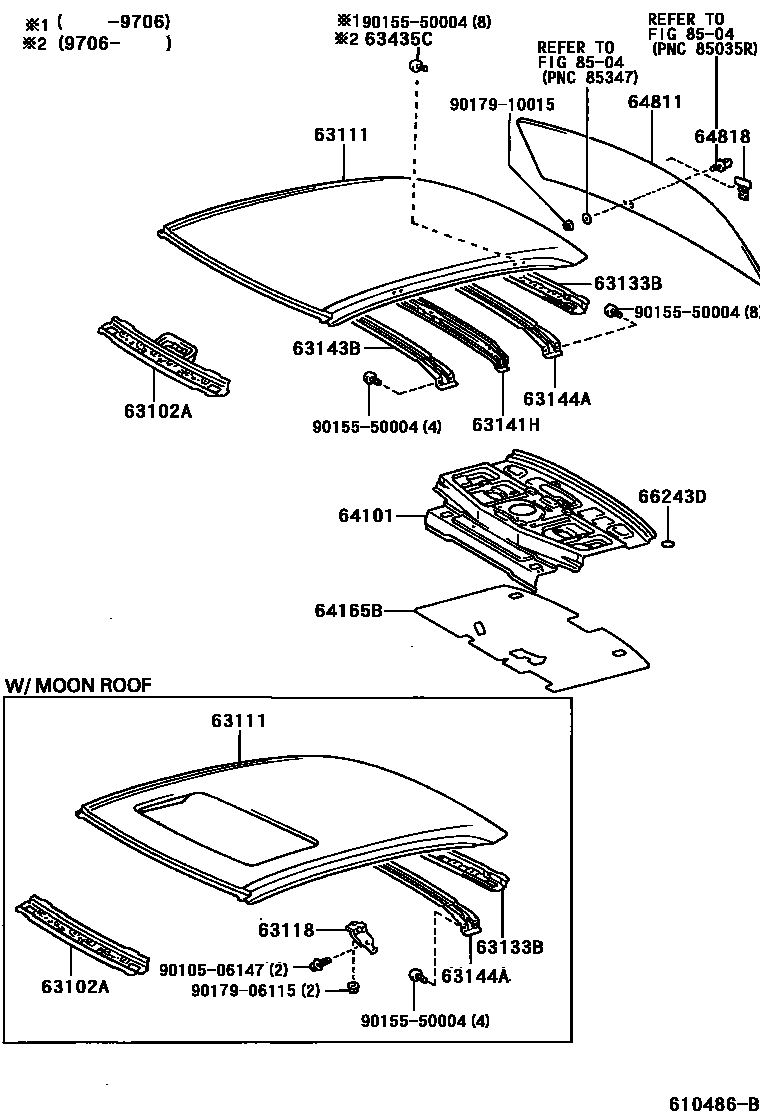

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32140iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

main63102-32140iCV40,SV40..XJ199406-199407

main63102-32150iCV4#,SV4#..SED199406-199407

main63102-32160iCV4#,SV4#..HT199406

main63102-32170iCV4#,SV4#..HT..(TOU,VX)199406

63111PANEL, ROOF

main63111-32160iCV4#,SV4#..SED199406

main63111-32180iCV4#,SV4#..HT199406

main63111-32901iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

main63111-32902iCV4#,SV4#..HT..(TOU,VX)199406

63118SUPPORT, ROOF PANEL, RH

main63118-32010iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

main63118-32020iCV4#,SV4#..HT..(TOU,VX)199406

63133BFRAME, BACK WINDOW

main63133-32060iCV4#,SV4#..SED199406

main63133-32070iCV4#,SV4#..HT199406

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-32080iCV4#,SV4#..SED199406

main63141-32090iCV4#,SV4#..HT199406

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-32050iCV4#,SV4#..SED199406

main63143-32060iCV4#,SV4#..HT199406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-32050iCV4#,SV4#..SED199406

main63144-32060iCV4#,SV4#..SED..(ALPX,TOU,ZX)199406

63435CSEAL, ROOF CARRIER, NO.1 RH

main63435-12030iCV4#,SV4#..SED199706

64101PANEL SUB-ASSY, UPPER BACK

main64101-32200iCV4#,SV4#..SED199406

main64101-32210iCV4#,SV4#..HT199406

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-32030iCV4#,SV4#..SED199406-199605

main64165-32050iCV4#,SV4#..HT199406

main64165-32060iCV4#,SV4#..SED199605

64811GLASS, BACK WINDOW

main64811-32460iCV4#,SV4#..ALPX,LUM,XJ,ZX199406-199605

main64811-32480iCV4#,SV4#..ALPX,LUM,XJ,ZX199406-199605

main64811-32510iCV4#,SV4#..ETO,VJ,VX199406-199605

main64811-32530iCV4#,SV4#..ETO,VJ,VX199406-199605

main64811-32550iSV41,42..ALPX,ZX199605

main64811-32570iCV4#,SV4#..ALPX,LUM,XJ,ZX199605

main64811-32590iCV4#,SV4#..ETO,VJ,VX199605

main64811-32610iSV41,42..VX199605

main64811-32900iSV42..HT..TOU199406-199605

main64811-32900iSV42..HT..TOU199406-199605

main64811-32901iCV4#,SV4#..ETO,VJ,VX199406-199605

main64811-32901iSV42..HT..TOU199406-199605

main64811-32902iSV42..SED..TOU199406-199605

main64811-32902iSV42..SED..TOU199406-199605

main64811-32904iSV41,42..SED..(ALPX,TOU,ZX)199605

main64811-32905iCV4#,SV4#..SED..(LUM,TOU,XJ)199605

main64811-32905iCV4#,SV4#..SED..(LUM,TOU,XJ)199605

main64811-32906iCV4#,SV4#..HT199605

main64811-32907iSV41,42..HT..(TOU,VX)199605

64818SPACER, BACK WINDOW GLASS

main56115-32010iCV4#,SV4#..SED199406

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010iCV4#,SV4#..SED199406-199505

8504

9010506147

main90105-06147

9015550004

main90155-50004

9017906115

main90179-06115

9017910015

main90179-10015

18 parts on this diagram · 3 diagrams in section
