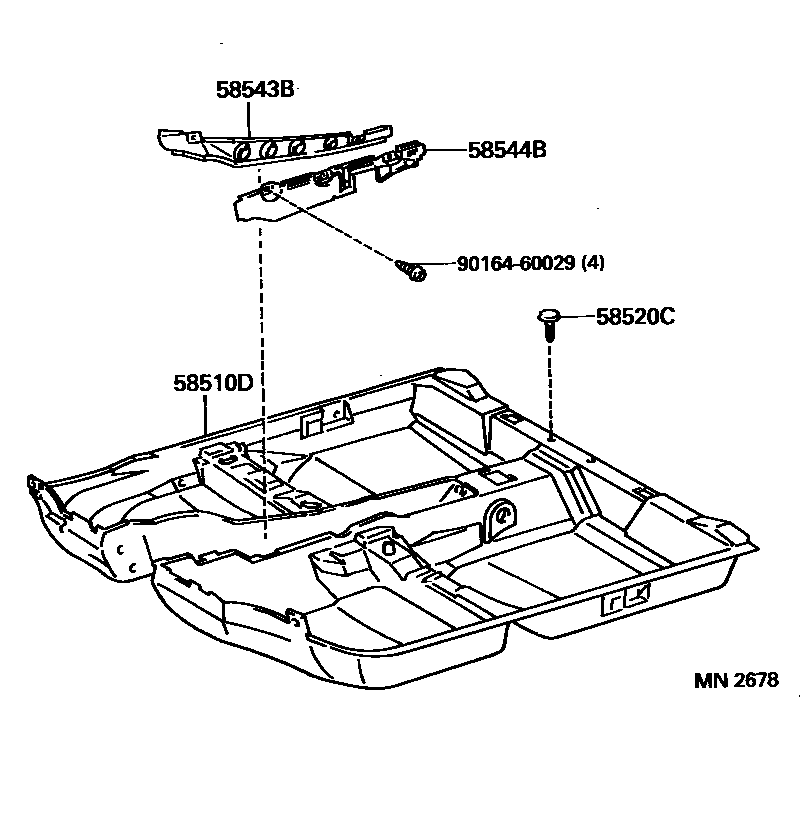

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-32380-B0iCV4#,SV4#..SED..(ALPX,LUM,TOU,XJ)199406-199605

MEDIUM GRAY,TRIM1#

sub58510-32380

main58510-32380-E0iCV4#,SV40,41,43..LUM,XJ199406-199605

LT. OAK,TRIM4#

sub58510-32380

main58510-32390-B0iCV4#,SV4#..ZX199406-199605

MEDIUM GRAY,TRIM1#

main58510-32390-E0iCV4#,SV4#..ZX199406-199605

LT. OAK,TRIM4#

main58510-32400-B0iCV4#,SV4#..HT..(ETO,TOU,VJ)199406-199605

MEDIUM GRAY,TRIM1#

main58510-32400-E0iCV4#,SV40,41,43..ETO,VJ199406-199605

LT. OAK,TRIM4#

main58510-32410-B0iCV4#,SV4#..VX199406-199605

MEDIUM GRAY,TRIM1#

sub58510-32411

main58510-32410-E0iCV4#,SV4#..VX199406-199605

LT. OAK,TRIM4#

sub58510-32411

main58510-32420-B0iCV4#,SV4#..SED..(ALPX,LUM,TOU,XJ)199605

MEDIUM GRAY,TRIM1#

sub58510-32420

main58510-32420-E0iCV4#,SV40,41,43..LUM,XJ199605

LT. OAK,TRIM4#

sub58510-32420

main58510-32430-B0iCV4#,SV4#..ZX199605

MEDIUM GRAY,TRIM1#

sub58510-32390

main58510-32430-E0iCV4#,SV4#..ZX199605

LT. OAK,TRIM4#

sub58510-32390

main58510-32440-B0iCV4#,SV4#..HT..(ETO,TOU,VJ)199605

MEDIUM GRAY,TRIM1#

sub58510-32440

main58510-32440-E0iCV4#,SV40,41,43..ETO,VJ199605

LT. OAK,TRIM4#

sub58510-32440

main58510-32450-B0iCV4#,SV4#..VX199605

MEDIUM GRAY,TRIM1#

sub58510-32411

main58510-32450-E0iCV4#,SV4#..VX199605

LT. OAK,TRIM4#

sub58510-32411

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iCV4#,SV4#..ALPX,TOU199406

BLACK,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-C0iCV4#,SV4#..ALPX,TOU199406

BLACK,TRIM1#,4#

sub90467-06016

sub90467-07049

58543BBRACKET, FLOOR CARPET, RH

main58543-32020iCV4#,SV4#199406-199605

main58543-32030iCV4#,SV4#199605

58544BBRACKET, FLOOR CARPET, LH

main58544-32020iCV4#,SV4#199406

9016460029

main90164-60029

5 parts on this diagram · 1 diagram in section
