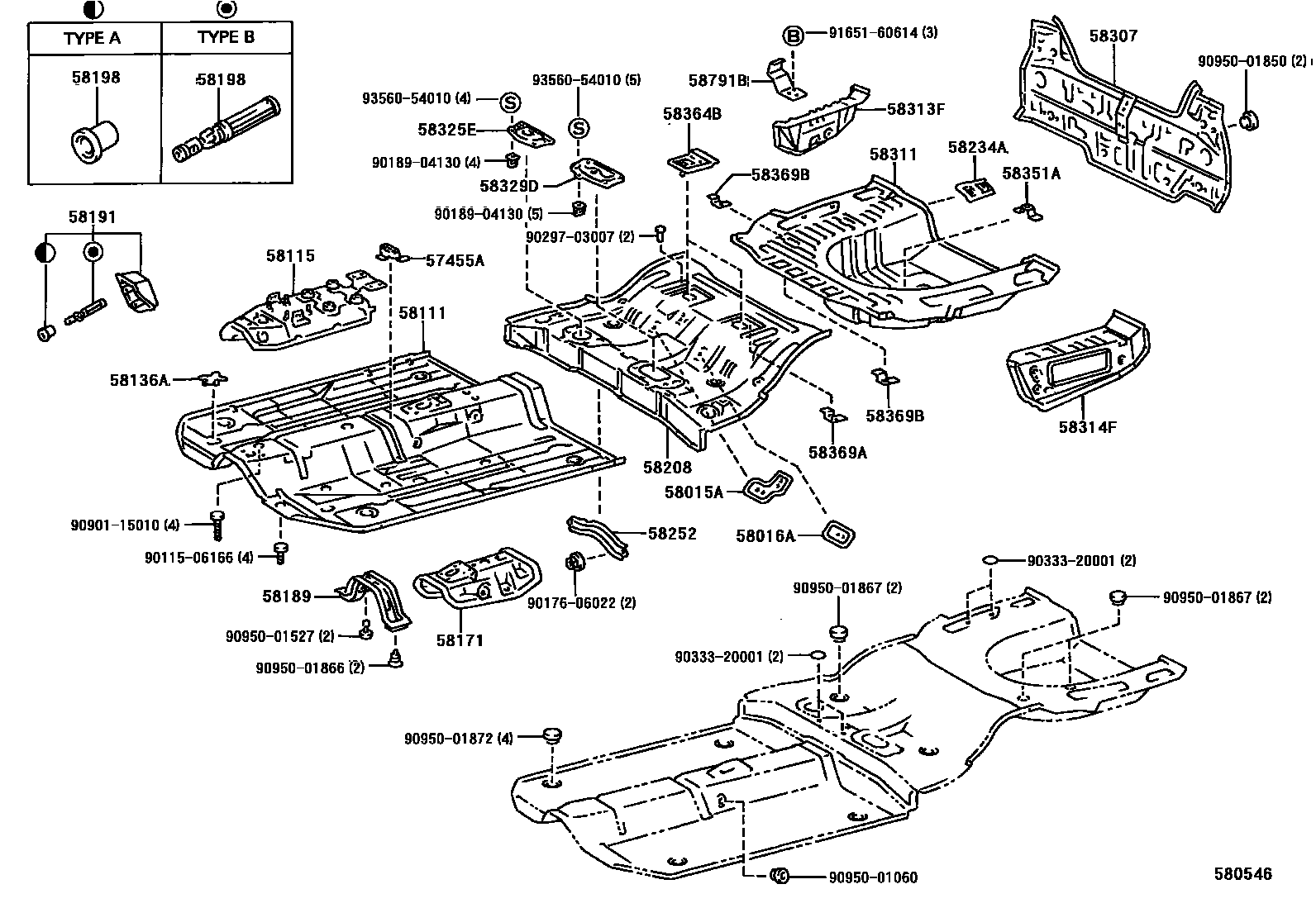

FLOOR PAN & LOWER BACK PANEL

57455ABRACKET, FRONT FLOOR CROSSMEMBER

main57455-32010iCV4#,SV4#¥850199605

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32050iCV4#,SV4#¥1,970199406-199605

main58015-32050iSV40,43..ETO¥1,970199612-199806

main58015-32050iSV40,43..LUM¥1,970199612

main58015-32060iCV4#,SV40,41,43..ETO,LUM,VJ,XJ¥1,820199605

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20070iCV40,SV4#¥1,810199406-199501

sub58016-20071¥1,820

main58016-20071iCV4#,SV4#¥1,820199501

sub58016-32031¥1,820

58111PAN, FRONT FLOOR

main58111-32060iCV4#,SV4#..ATM¥51,900199406-199605

sub58111-32061¥51,700

main58111-32070iCV40,SV40,43..MTM¥51,900199406-199605

sub58111-32071¥51,700

main58111-32100iCV4#,SV4#..ATM¥51,900199605

main58111-32110iCV40,SV40,43..MTM¥51,900199605

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58103-32060iCV4#,SV4#¥8,500199406

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iCV4#,SV4#¥220199406

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32040iCV40,SV40,41,42¥7,400199406-199605

sub58107-32041¥7,400

main58107-32050iCV43,SV43¥10,800199406-199605

sub58107-32051¥10,800

main58107-32060iCV40,SV40,41,42¥7,400199605

main58107-32070iCV43,SV43¥10,800199605

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-32010iCV40,SV40,41,42¥6,000199406

main58277-32020iCV43,SV43¥5,800199406

58191FOOTREST, FRONT FLOOR

main58191-32040iCV4#,SV4#¥2,370199406

58198CLIP, FOOTREST

main58198-32010iCV4#,SV4#¥550199406-199806

main58198-32020iCV4#,SV4#¥200199406-199806

58208PAN, CENTER FLOOR

main58211-32150iCV40,SV40,41,42¥36,800199406

main58211-32160iSV40..LUM199612

main58211-32160iSV40..ETO199612-199806

main58211-32170iCV43,SV43¥36,800199406

main58211-32180iSV43..LUM199612

main58211-32180iSV43..ETO199612-199806

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32040iCV4#,SV4#¥1,650199406

58252BRACE, FLOOR PANEL, REAR

main58252-32010iSV42¥2,140199406

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-32330iCV4#,SV4#..SED¥26,100199406

main58307-32340iCV4#,SV4#..HT¥26,100199406

58311PAN, REAR FLOOR

main58311-32140iCV4#,SV4#¥37,100199406

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-32020iCV4#,SV4#¥4,940199406

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-32100iCV4#,SV40,41,43¥3,880199406

main58314-32110iSV42¥3,880199406

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32030iCV4#,SV4#¥1,460199406

58329DGUSSET, SPARE WHEEL HOUSING CORNER

main58329-32010iCV43,SV43¥1,350199406

58351ABRACKET, SPARE WHEEL CARRIER

main58351-32010iCV4#,SV4#¥470199406

sub58351-33010¥410

58364BBRACKET, FUEL TANK SUPPORT

main58365-32020iCV43,SV43¥1,460199406

58369ABRACKET, FUEL TUBE, NO.3

main58369-20010iCV4#,SV4#¥320199406

58369BBRACKET, FUEL TUBE, NO.3

main58369-20020iCV4#,SV4#¥240199406

58791BCARRIER, JACK

main58791-20090iCV4#,SV4#¥1,030199501

main58791-32070iCV40,SV4#¥3,050199406-199501

sub58791-20090¥1,030

9011506166

main90115-06166¥90

9017606022

main90176-06022¥90

9018904130

main90189-04130¥130

9029703007

main90297-03007¥60

9033320001

main90333-20001¥70

9090115010

main90901-15010¥370

9095001060

main90950-01060¥200

9095001527

main90950-01527¥110

9095001850

main90950-01850¥40

9095001866

main90950-01866¥120

9095001867

main90950-01867¥230

9095001872

main90950-01872¥220

9165160614

main91651-60614¥70

9356054010

main93560-54010¥70

38 parts on this diagram · 1 diagram in section
