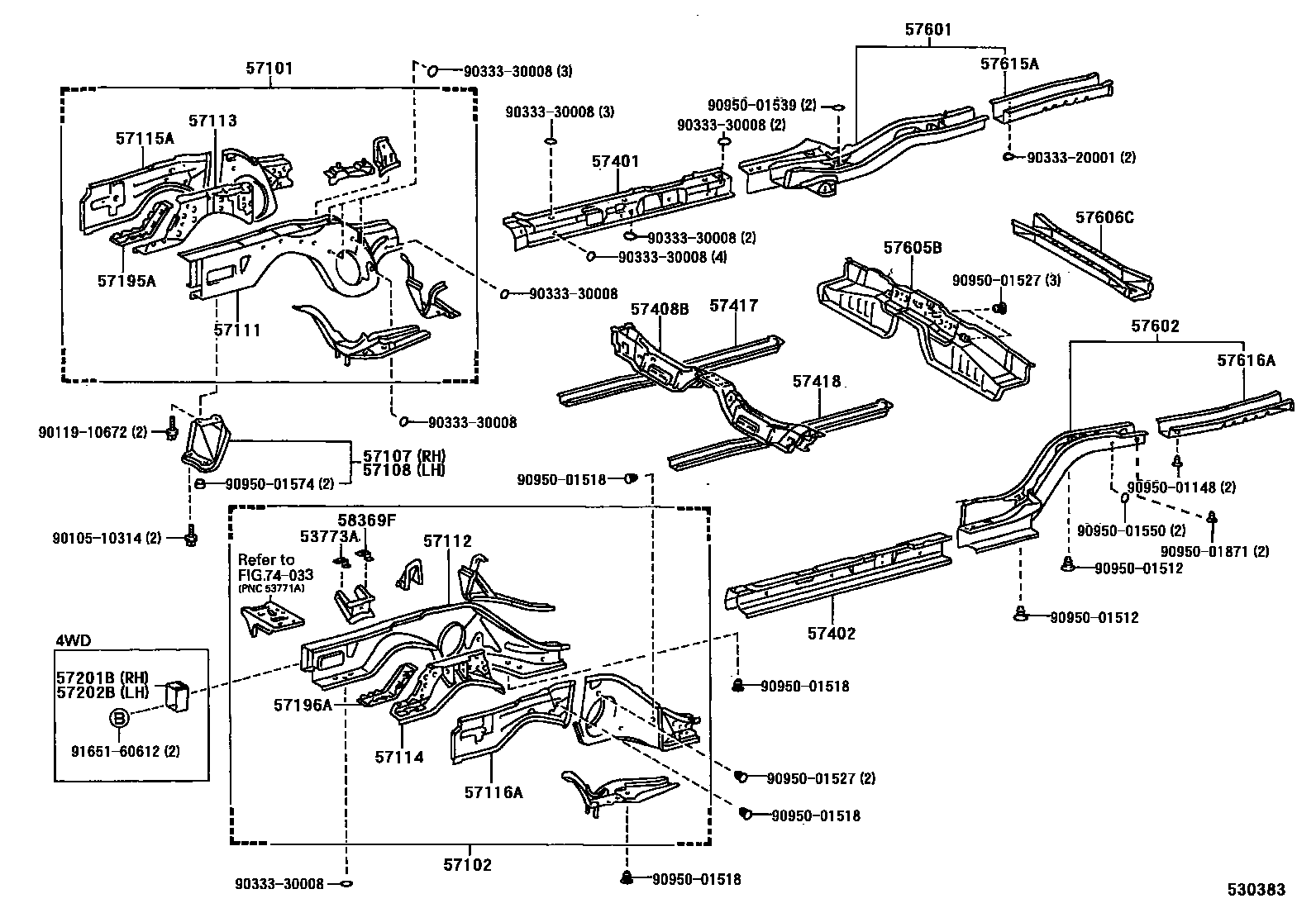

FLOOR SIDE MEMBER

53773ABRACKET, AIR CLEANER MOUNTING

main53773-32020iCV4#,SV4#199406

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32130iCV4#,SV4#199406

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32090iCV4#,SV4#199406

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32050iCV4#,SV4#199406

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32050iCV4#,SV4#199406

57111MEMBER, FRONT SIDE, RH

main57111-32050iCV4#,SV4#199406

57112MEMBER, FRONT SIDE, LH

main57112-32050iCV4#,SV4#199406

57113EXTENSION, FRONT SIDE MEMBER, RH

main57016-32010iCV4#,SV4#199406

57114EXTENSION, FRONT SIDE MEMBER, LH

main57017-32010iCV4#,SV4#199406

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-32050iCV4#,SV4#199406

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-32040iCV4#,SV4#199406

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-32010iCV4#,SV4#199406

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-32010iCV4#,SV4#199406

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-32010iCV43,SV43199406-199605

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57201-32010iCV43,SV43199406-199605

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32080iCV4#,SV4#199406-199605

main57401-32081iCV4#,SV4#199605

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32080iCV4#,SV4#199406-199605

main57402-32081iCV4#,SV4#199605

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-32050iCV4#,SV4#199605

main57408-32060iCV4#,SV4#199406-199605

sub57408-32050

sub94223-80600

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32040iCV4#,SV4#199406

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32040iCV4#,SV4#199406

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32220iCV40,SV40,41199406-199605

sub57601-32904

main57601-32230iCV43,SV43199406-199605

sub57601-32905

main57601-32240iSV42199406-199605

sub57601-32906

main57601-32904iCV40,SV40,41199406-199605

main57601-32905iCV43,SV43199406-199806

main57601-32906iSV42199406-199806

main57601-32907iCV40,SV40,41199605-199806

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32220iCV40,SV40,41199406-199605

sub57602-32904

main57602-32230iCV43,SV43199406-199605

sub57602-32905

main57602-32904iCV40,SV40,41199406-199605

main57602-32905iCV43,SV43199406-199806

main57602-32906iSV42199406-199806

main57602-32907iCV40,SV40,41199605-199806

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-32070iCV40,SV40,41,43199406-199806

main57605-32080iSV42199406-199806

main57605-32090iSV43199412-199806

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-32050iSV43199406-199806

main57606-32070iCV40,SV40,41,42199406-199806

main57606-32080iCV43199501-199806

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-32110iCV4#,SV4#199406-199806

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-32914iCV4#,SV4#199406-199806

58369FBRACKET, FUEL TUBE, NO.3

main58369-32010iCV4#,SV4#199406

7403

9010510314

main90105-10314

9011910672

main90119-10672

9033320001

main90333-20001

9033330008

main90333-30008

9095001148

main90950-01148

9095001512

main90950-01512

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001550

main90950-01550

9095001574

main90950-01574

9095001871

main90950-01871

9165160612

main91651-60612

41 parts on this diagram · 1 diagram in section
