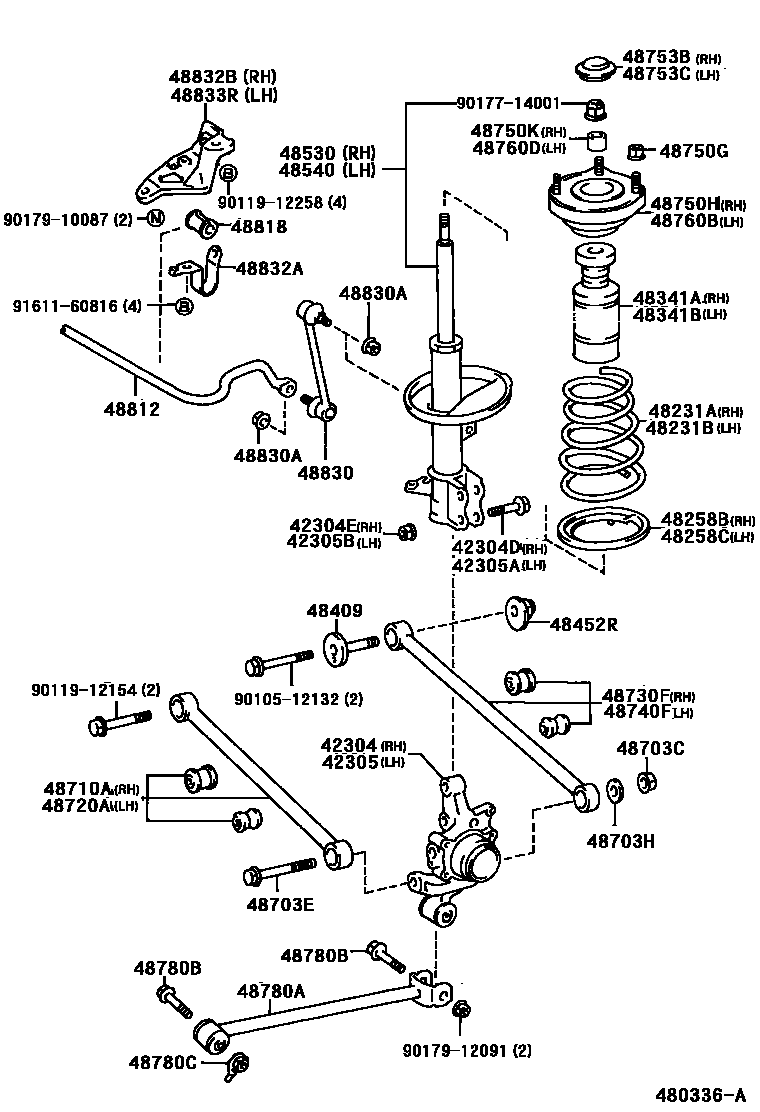

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20060iCV40,SV40199406-199605

main42304-20070iSV41199406-199605

main42304-20090iSV41199605

main42304-20090iCV40,SV41199406-199605

main42304-29025iSV42199406-199605

main42304-29045iSV42199406-199605

main42304-29045iSV42199605

main42304-32060iSV40199406-199605

main42304-32060iCV40,SV40199605

main42304-32070iCV43,SV43199406-199605

main42304-32080iCV43,SV43199406-199605

main42304-32080iCV43,SV43199605

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iCV4#,SV4#199406

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iCV4#,SV4#199406

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20060iCV40,SV40199406-199605

main42305-20070iSV41199406-199605

main42305-20090iCV40,SV41199406-199605

main42305-20090iSV41199605

main42305-29025iSV42199406-199605

main42305-29045iSV42199605

main42305-29045iSV42199406-199605

main42305-32060iCV40,SV40199605

main42305-32060iSV40199406-199605

main42305-32070iCV43,SV43199406-199605

main42305-32080iCV43,SV43199406-199605

main42305-32080iCV43,SV43199605

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iCV4#,SV4#199406

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iCV4#,SV4#199406

48231ASPRING, COIL, REAR RH

main48231-3H081iSV40199406-199605

main48231-3H101iCV40,SV41199406

main48231-3H111iSV43199406-199605

main48231-3H120iCV43199501-199605

main48231-3H130iSV42199406

main48231-3H210iSV43199605

main48231-3H220iCV43199605

48231BSPRING, COIL, REAR LH

main48231-3H081iSV40199406-199605

main48231-3H101iCV40,SV41199406

main48231-3H111iSV43199406-199605

main48231-3H120iCV43199501-199605

main48231-3H130iSV42199406

main48231-3H210iSV43199605

main48231-3H220iCV43199605

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32020iCV4#,SV4#199406

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32020iCV4#,SV4#199406

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32090iCV4#,SV4#199406

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32090iCV4#,SV4#199406

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-32020iCV40,SV40,41199406

main48409-32030iCV43,SV43199406

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32020iCV40,SV40,41199406

main48452-32030iCV43,SV43199406

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-39165iSV40199406

sub48530-39235

main48530-39175iCV40,SV41199406

sub48530-80119

main48530-39185iCV43,SV43199406-199605

main48530-39195iSV42199406

sub48530-80119

main48530-39405iCV43,SV43199605

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-39115iSV40199406

sub48540-39185

main48540-39125iCV40,SV41199406

sub48540-39515

main48540-39135iCV43,SV43199406-199605

main48540-39145iSV42199406

sub48540-39515

main48540-39285iCV43,SV43199605

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12100iCV43,SV43199406

main90179-14019iCV40,SV40,41199406

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12126iCV43,SV43199406

main90901-19001iCV40,SV40,41199406

main90901-19002iCV43,SV43199406

main90901-19003iCV43,SV43199406-199708

main90901-19004iSV42199406

main90901-19046iCV43,SV43199708

sub90119-12438

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017iCV40,SV40,41199406

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-32060iSV42199406

main48710-32070iCV40,SV40,41199406

main48710-32080iCV43,SV43199406

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-32060iSV42199406

main48710-32070iCV40,SV40,41199406

main48710-32080iCV43,SV43199406

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-32080iCV40,SV40,41199406

main48730-32090iCV43,SV43199406

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-32080iCV40,SV40,41199406

main48730-32090iCV43,SV43199406

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122iCV4#,SV4#199406

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-32150iCV4#,SV4#199406

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iCV4#,SV4#199406

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iCV4#,SV4#199406

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iCV4#,SV4#199406

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-32150iCV4#,SV4#199406

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iCV4#,SV4#199406

48780AROD ASSY, STRUT, REAR

main48780-12010iCV4#,SV40,41,43199406-199605

sub48780-32060

main48780-20070iSV42199406

main48780-32060iCV4#,SV40,41,43199605

48780BBOLT(FOR STRUT ROD)

main90119-12131iCV4#,SV40,41,43199406

48780CNUT(FOR STRUT ROD)

main90171-12008iSV42199406

main90179-12063iCV40..ATM..XJ;CV43,SV40,41,43;CV40..ALPX,VJ,VX,ZX199406-199605

main90179-12091iCV4#,SV40,41,43199708

48812BAR, STABILIZER, REAR

main48812-32270iCV43,SV43199406-199605

main48812-32430iCV40,SV41199406

main48812-32440iSV42199406

main48812-32460iCV43,SV43199605

48818BUSH, STABILIZER, REAR

main48818-32060iCV43,SV43199605

main48818-32080iCV43,SV43199406-199605

sub48818-21020

main48818-32090iSV42199406

main48818-32100iCV40,SV41199406-199511

sub48818-32120

main48818-32120iCV40,SV41199511

48830LINK ASSY, REAR STABILIZER

main48830-32040iCV43,SV43199406

main48830-33010iCV40,SV41,42199406

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iCV4#,SV41,42,43199406-199703

main90179-10183iCV4#,SV41,42,43199703

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-32030iSV42199406

main48832-32050iCV43,SV43199406

main48832-32070iCV43,SV43199406

main48832-32100iCV40,SV41199406

48832BBRACKET, REAR STABILIZER BAR, NO.2

main48832-32040iSV42199406

main48832-32060iCV43,SV43199406

main48832-32080iCV43,SV43199406

main48832-32110iCV40,SV41199406

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-32110iCV40,SV41199406

9010512132

main90105-12132

9011912154

main90119-12154

9011912258

main90119-12258

9017714001

main90177-14001

9017910087

main90179-10087

9017912091

main90179-12091

9161160816

main91611-60816

47 parts on this diagram · 3 diagrams in section
