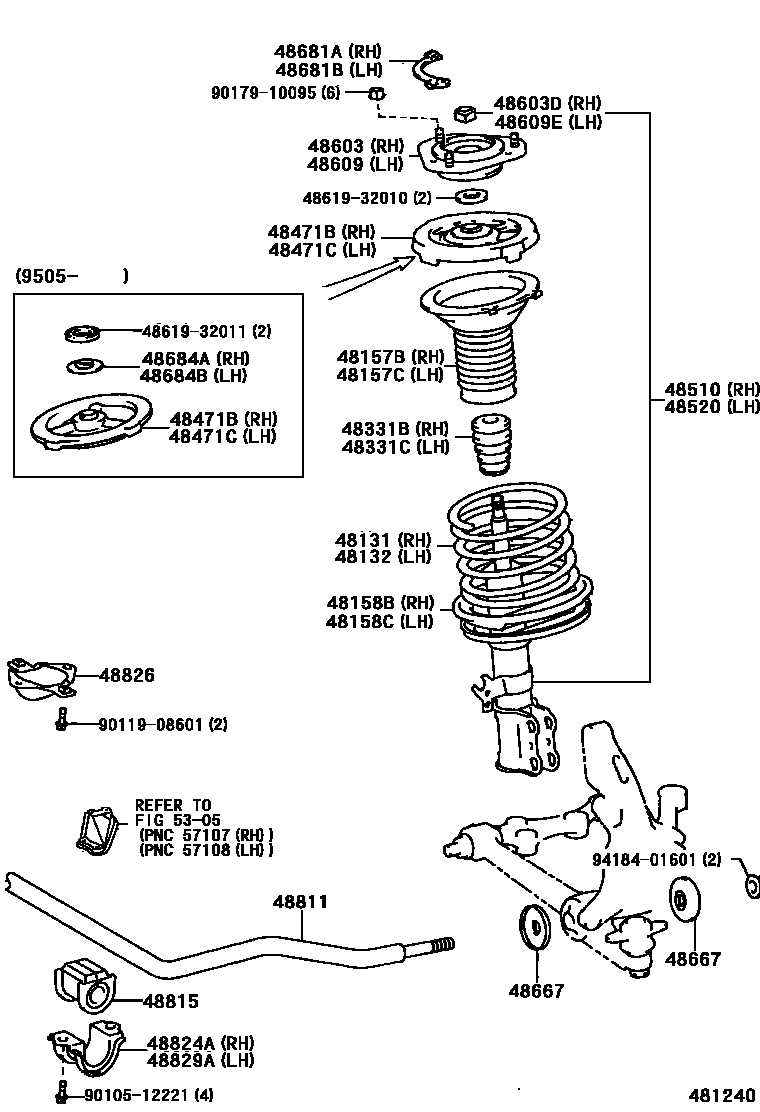

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48667RETAINER, STRUT BAR
48681AGASKET, FRONT SUSPENSION SUPPORT, RH
48681BGASKET, FRONT SUSPENSION SUPPORT, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48826PROTECTOR, FRONT STABILIZER BAR
48829ABRACKET, FRONT STABILIZER, NO.1 LH
5305
4861932010BEARING, STRUT MOUNTING, RH
main48619-32010
4861932011BEARING, STRUT MOUNTING, RH
main48619-32011
9010512221
main90105-12221
9011908601
main90119-08601
9017910095
main90179-10095
9418401601
main94184-01601
33 parts on this diagram · 1 diagram in section
