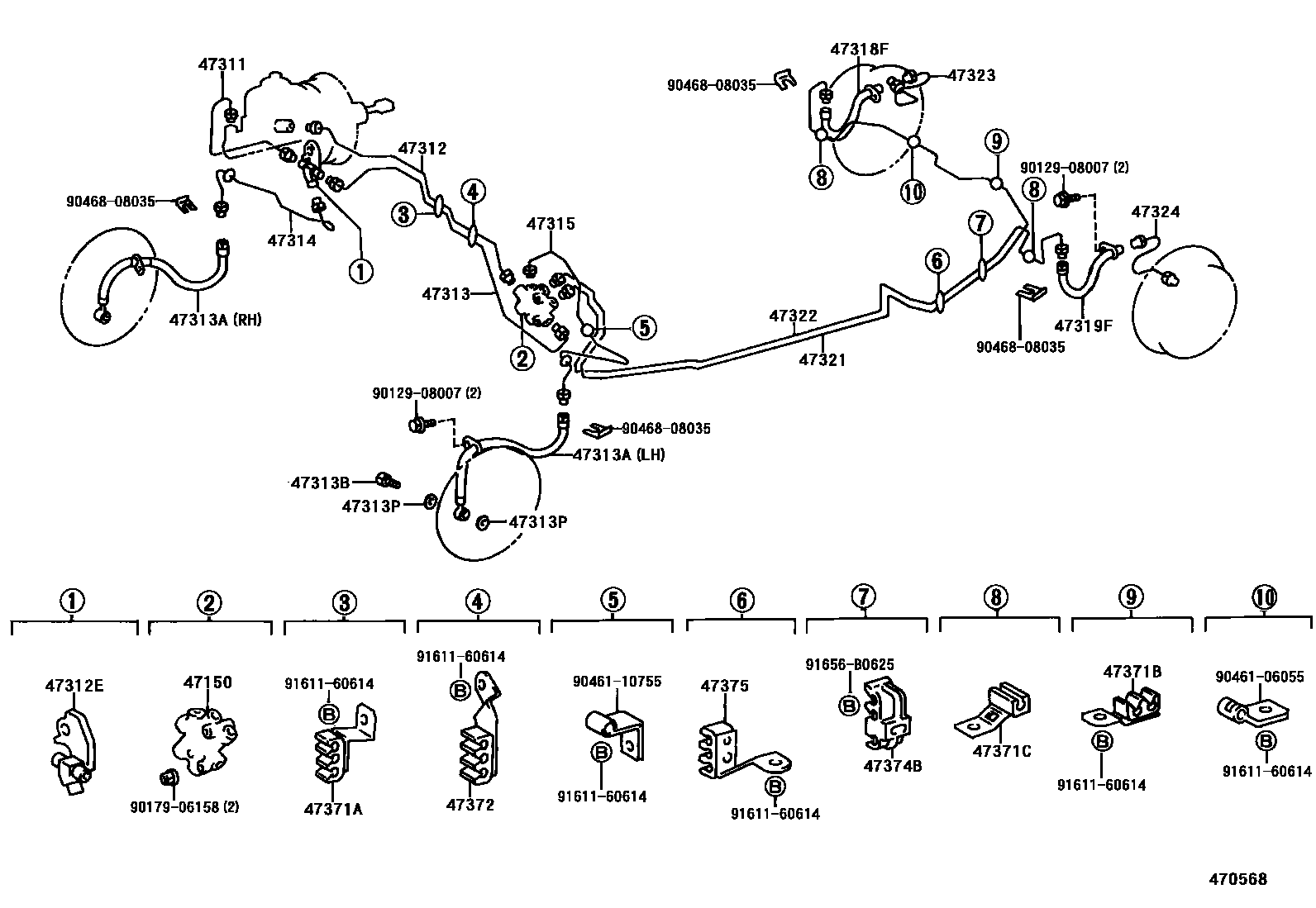

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0008 1 0009 1 0010 1��(ABS) 0011 1 0012 1

47150VALVE ASSY, PROPORTIONING

main47150-12110iSV41,42199412-199605

sub47150-12250

main47150-16040iCV4#,SV40,43199412-199605

sub47150-12260

main47150-20250iCV43,SV40,43199406-199605

main47150-20250iCV4#,SV40,43199605

main47150-20270iCV40,SV41,42199406-199605

main47150-20270iSV41,42199605

main47150-20340iCV40,SV40,43199406-199412

sub47150-16040

main47150-20420iSV41,42199406-199412

sub47150-12110

47311TUBE, FRONT BRAKE, NO.1

main47311-32100iCV4#,SV4#199406-199605

47312TUBE, FRONT BRAKE, NO.2

main47312-32170iCV4#,SV40199406-199605

main47312-32180iSV41,42,43199406-199605

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-13013iCV4#,SV4#199406-199605

47313TUBE, FRONT BRAKE, NO.3

main47313-32170iCV4#,SV40199406-199605

main47313-32180iSV41,42,43199406-199605

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02792iCV4#,SV4#199406

main90947-02793iCV4#,SV4#199406

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCV4#,SV4#199406-199711

main90401-10058iCV4#,SV4#199711

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iCV4#,SV4#199711

main90430-10074iCV4#,SV4#199406-199711

47314TUBE, FRONT BRAKE, NO.4

main47314-32170iCV4#,SV40199406-199605

main47314-32180iSV41,42,43199406-199605

47315TUBE, FRONT BRAKE, NO.5

main47315-32140iCV4#,SV4#199406-199605

main47315-32150iCV4#,SV4#199605

main47315-32170iCV4#,SV4#199406-199605

47318TUBE, FRONT BRAKE, NO.8

main47318-32050iSV4#199605

main47318-32060iCV4#199605

main47318-32140iSV4#199406-199605

main47318-32150iCV4#199406-199502

main47318-32151iCV4#199502-199605

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02701iSV42199406

main90947-02703iCV43,SV43199406

main90947-02705iCV40199406-199605

main90947-02705iSV41199406

main90947-02794iCV40,SV40199406

47319TUBE, FRONT BRAKE, NO.9

main47319-32060iSV4#199605

main47319-32070iCV4#199605

main47319-32140iSV4#199406-199605

main47319-32150iCV4#199406-199605

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02702iSV42199406

main90947-02704iCV43,SV43199406

main90947-02706iCV40199406-199605

main90947-02706iSV41199406

main90947-02795iCV40,SV40199406

47321TUBE, REAR BRAKE, NO.1

main47321-32150iCV4#,SV4#199406

47322TUBE, REAR BRAKE, NO.2

main47322-32140iCV4#,SV4#199406

47323TUBE, REAR BRAKE, NO.3

main47323-32110iSV4#199605

main47323-32120iCV4#199605

main47323-32140iSV40199406-199605

main47323-32150iCV40199406-199605

main47323-32150iCV43199501-199605

main47323-32160iCV40,SV40199406-199605

47324TUBE, REAR BRAKE, NO.4

main47324-32120iSV4#199605

main47324-32130iCV4#199605

main47324-32140iSV40199406-199605

main47324-32150iCV40199406-199605

main47324-32150iCV43199501-199605

main47324-32160iCV40,SV40199406-199605

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32080iCV4#,SV4#199406-199605

main47371-32090iCV4#,SV4#199406-199605

main47371-32090iCV4#,SV4#199605

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32180iCV4#,SV4#199406

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32190iCV40,SV40,41,42199406

47372CLAMP, BRAKE TUBE, NO.2

main47371-32150iCV4#,SV4#199406-199605

main47371-32200iCV4#,SV4#199406-199605

main47371-32210iCV4#,SV4#199605

47374BCLAMP, BRAKE TUBE, NO.4

main47371-20380iCV4#,SV4#199406

47375CLAMP, BRAKE TUBE, NO.5

main47371-32170iCV4#,SV4#199406

9012908007

main90129-08007

9017906158

main90179-06158

9046106055

main90461-06055

9046110755

main90461-10755

9046808035

main90468-08035

9161160614

main91611-60614

91656B0625

main91656-B0625

31 parts on this diagram · 12 diagrams in section
