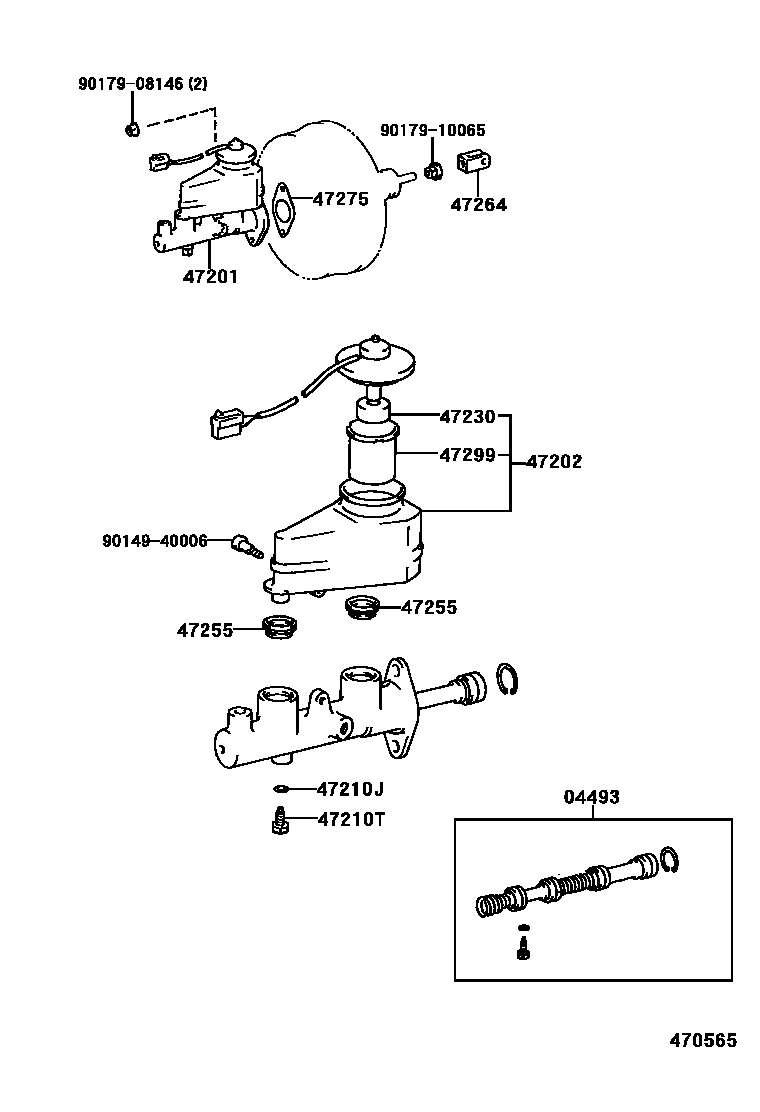

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2B010iCV40,SV40199605-199806

main04493-32080iCV40,SV40199406-199605

main04493-32090iCV43,SV41,42,43199406-199605

main04493-32100iCV40,SV40199406-199605

sub04493-2B010

main04493-32110iCV43,SV41,42,43199406-199605

sub04493-33060

main04493-33060iCV43,SV41,42,43199605-199806

sub04493-33160

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-32260iCV40,SV40199406-199605

main47201-32270iSV41,42,43199406-199605

main47201-32280iSV40199406-199605

main47201-32290iCV43,SV41,42,43199406-199605

main47201-32290iCV43,SV41,42,43199605

main47201-32300iCV40199406-199605

main47201-32300iCV40,SV40199605

main47201-32310iCV43199501-199605

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-32050iCV4#,SV40199406-199605

main47220-32060iCV43,SV40199406-199605

sub47220-12180

main47220-32060iCV43,SV41,42,43199605

sub47220-12180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCV4#,SV4#199406

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCV4#,SV4#199406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iCV4#,SV4#199406

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCV4#,SV4#199406

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iCV4#,SV4#199406

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iCV4#,SV4#199406

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iCV4#,SV4#199406

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
