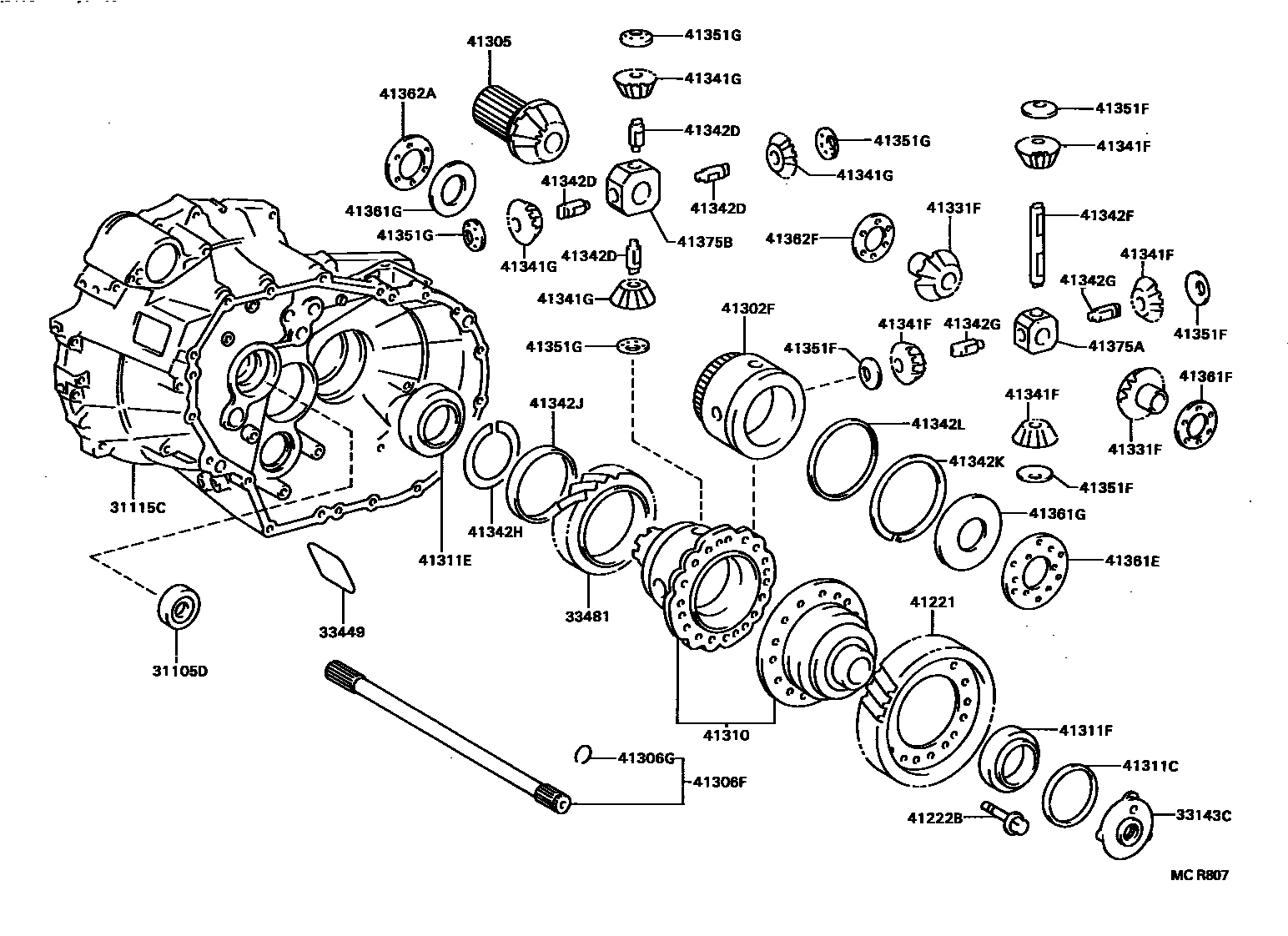

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
sub90311-30017
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33481GEAR, SPEEDOMETER DRIVE (MTM)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41305GEAR SUB-ASSY, DIFFERENTIAL SIDE
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41306GRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341GPINION, CENTER DIFFERENTIAL
41342DSHAFT, CENTER DIFFERENTIAL PINION
41342GSHAFT, FRONT DIFFERENTIAL PINION, NO.2
41342HRING, SHAFT SNAP (FOR CENTER DIFFERENTIAL PINION SHAFT)
41342JSPACER (FOR CENTER DIFFERENTIAL PINION SHAFT)
41342KRING, SHAFT SNAP (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342LSPACER (FOR DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41351GWASHER, CENTER DIFFERENTIAL PINION THRUST
41361EWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
41362AWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
41362FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.2
41375AHOLDER, FRONT DIFFERENTIAL PINION SHAFT
36 parts on this diagram · 4 diagrams in section
