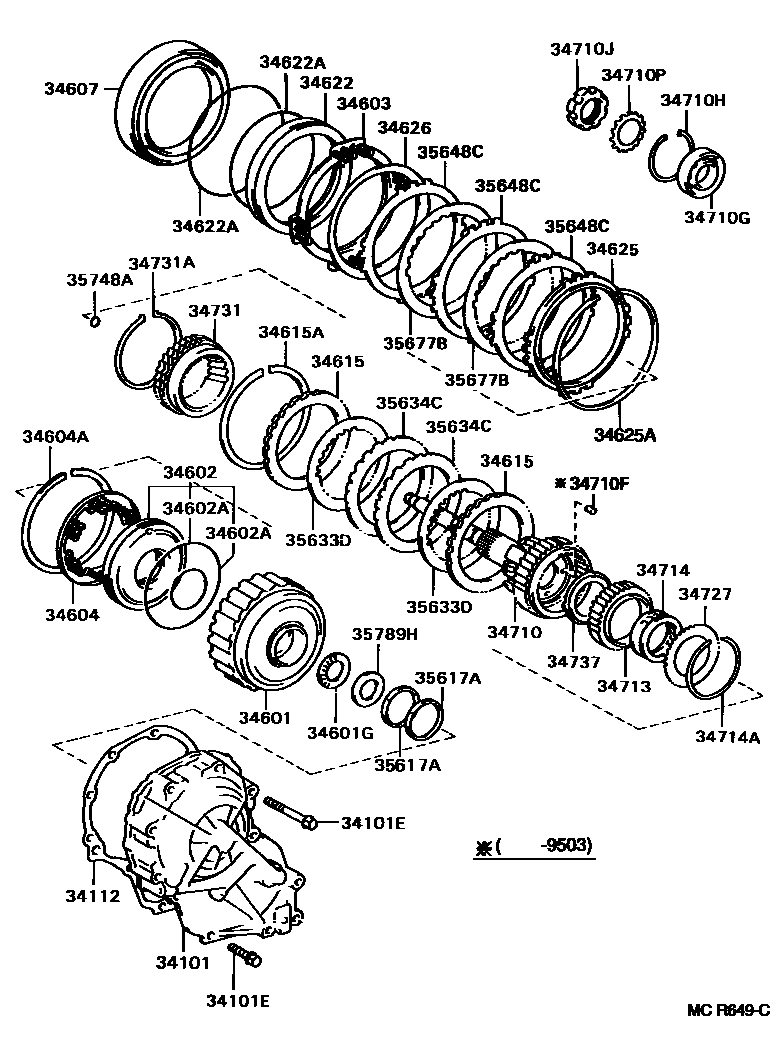

OVERDRIVE GEAR (ATM)

0001 1A140L,A140E 0002 1A540H

34101CASE SUB-ASSY, OVERDRIVE

main34101-20021iCV40,SV40,41,42..ATM199406

main34101-32040iCV43,SV43..ATM199406-199505

sub34101-32041

sub34115-20021

main34101-32041iCV43,SV43..ATM199505-199511

sub34101-32042

sub90949-03043

main34101-32042iCV43,SV43..ATM199511

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08056iCV43,SV43..ATM199406

main90105-08103iCV4#,SV4#..ATM199406

main90105-08167iCV40,SV40,41,42..ATM199406

main90105-08283iCV40,SV40,41,42..ATM199406

34112GASKET, OVERDRIVE CASE

main34112-32030iCV40,SV40,41,42..ATM199406

main34112-32040iCV43,SV43..ATM199406-199611

sub34112-32041

main34112-32041iCV43,SV43..ATM199611

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-20010iCV40,SV40,41,42..ATM199406

main34601-32021iCV43,SV43..ATM199406

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28013iCV4#,SV4#..ATM199406

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-20010iCV40,SV40,41,42..ATM199406

main34602-32020iCV43,SV43..ATM199406

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iCV4#,SV4#..ATM199406

main90301-99016iCV4#,SV4#..ATM199406

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20010iCV43,SV43..ATM199406-199704

main34603-20020iCV40,SV41,42..ATM199406-199605

main34603-32020iSV40..ATM199406-199604

main34603-33030iCV40,SV40,41,42..ATM199605

main34603-45010iCV43,SV43..ATM199704

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-20010iCV40,SV40,41,42..ATM199406

main34604-32010iCV43,SV43..ATM199406

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99051iCV40,SV40,41,42..ATM199406

main90521-99060iCV43,SV43..ATM199406

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-32010iCV43,SV43..ATM199406

main34607-32020iCV40,SV40,41,42..ATM199406

34615FLANGE, OVERDRIVE CLUTCH

main34615-20010iCV40,SV40,41,42..ATM199406-199704

main34615-32010iCV43,SV43..ATM199406-199602

sub34615-33020

main34615-33020iCV43,SV43..ATM199602-199704

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90520-99037iCV40,SV40,41,42..ATM199704

main90521-99001iCV40,SV40,41,42..ATM199406-199704

main90521-99058iCV43,SV43..ATM199406

34622PISTON, OVERDRIVE BRAKE

main34622-20010iCV43,SV43..ATM199406-199704

main34622-20020iCV40,SV41,42..ATM199406-199605

main34622-32020iSV40..ATM199406-199604

main34622-33030iCV40,SV40,41,42..ATM199605

main34622-45010iCV43,SV43..ATM199704

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043iCV4#,SV4#..ATM199406

main90301-99044iCV43,SV43..ATM199406

main90301-99057iCV40,SV40,41,42..ATM199406

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-20010iSV40..ATM199406-199604

main34625-32020iCV43,SV43..ATM199406-199605

main34625-33010iCV43,SV43..ATM199602-199704

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99050iCV40,SV40,41,42..ATM199406

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-20011iCV4#,SV4#..ATM199406

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-20021iCV40,SV40,41,42..ATM199406-199503

sub34710-20022

main34710-20022iCV40,SV40,41,42..ATM199503

main34710-32031iCV43,SV43..ATM199406

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iCV40,SV40,41,42..ATM199406-199503

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40024iCV40,SV40,41,42..ATM199406

main90363-40053iCV43,SV43..ATM199406

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-76003iCV40,SV40,41,42..ATM199406

main90521-78003iCV43,SV43..ATM199406

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40005iCV4#,SV4#..ATM199406

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001iCV4#,SV4#..ATM199406

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iCV4#,SV4#..ATM199406

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32010iCV40,SV40,41,42..ATM199406

main34714-32021iCV43,SV43..ATM199406

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002iCV4#,SV4#..ATM199406

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iCV40,SV40,41,42..ATM199406

main34727-32020iCV43,SV43..ATM199406

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32010iCV40,SV40,41,42..ATM199406

main34731-32022iCV43,SV43..ATM199406

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99008iCV40,SV40,41,42..ATM199406

main90521-99059iCV43,SV43..ATM199406

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-20011iCV40,SV40,41,42..ATM199406

main34737-33010iCV43,SV43..ATM199406

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iCV4#,SV4#..ATM199406

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010iCV40,SV40,41,42..ATM199406

main35633-33030iCV43,SV43..ATM199406

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34615-20010iCV43,SV43..ATM199406-199704

main34615-33020iCV43,SV43..ATM199704

main35634-20010iCV40,SV40,41,42..ATM199406

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-20010iCV40,SV41,42..ATM199406-199605

main35648-32040iCV43,SV43..ATM199406-199704

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-20010iCV40,SV40,41,42..ATM199406-199605

sub35677-33070

main35677-33010iCV43,SV43..ATM199406

main35677-33070iCV40,SV40,41,42..ATM199605

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010iCV4#,SV4#..ATM199406

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020iCV4#,SV4#..ATM199406

38 parts on this diagram · 2 diagrams in section
