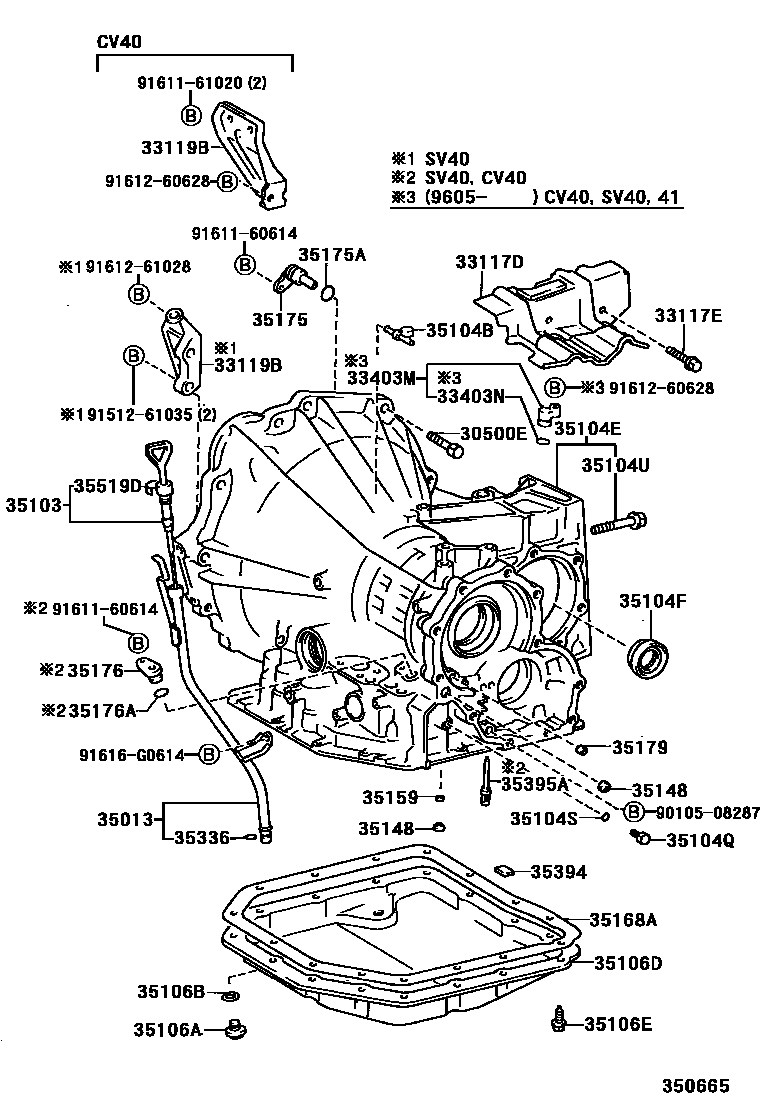

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A140L,A140E 0002 1A540H

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCV4#,SV4#..ATM199406-199605

sub91641-H0820

main90105-10077iCV4#,SV4#..ATM199406

main91619-61245iCV4#,SV4#..ATM199406

main91651-41022iCV4#,SV40,43..ATM199406

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-32050iCV43,SV43..ATM199406

main33117-32060iCV40,SV40,41,42..ATM199406

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iCV4#,SV4#..ATM199406-199605

sub91641-H0820

33119BPLATE, STIFFENER, LH(ATM)

main33119-32010iCV4#..ATM199406

main33119-32020iSV40,43..ATM199406

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iCV40,SV40,41..ATM199605

main33403-35230iCV43,SV43..ATM199605

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iCV40,SV40,41..ATM199605

main96711-24030iCV43,SV43..ATM199605

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-32110iSV40,41,42..ATM199406

main35013-32170iCV40..ATM199406

main35013-32180iSV43..ATM199406

main35013-32190iCV43199501

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-32150iCV40,SV40,41,42..ATM199406

main35103-32160iCV43,SV43..ATM199406

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iCV40,SV40,41,42..ATM199406

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-32065iCV43,SV43..ATM199406-199701

sub35104-32066

sub90105-10051

main35104-32066iCV43,SV43..ATM199701

main35104-32102iSV40..ATM199406

main35104-32112iCV40..ATM199406

main35104-32170iSV41,42199406

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-35019iCV40,SV40,41,42..ATM199406

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iSV41,42199406-199605

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iCV40,SV40,41,42..ATM199406-199605

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iCV43,SV43..ATM199406-199605

main90105-10223iCV43,SV43..ATM199406

main90105-10224iCV43,SV43..ATM199406

main90105-12052iCV40,SV40,41,42..ATM199406

sub90105-12263

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iCV4#,SV4#..ATM199406

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iCV4#,SV4#..ATM199406

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-32012iCV40,SV40,41,42..ATM199406

main35106-32032iCV43,SV43..ATM199406

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iCV40,SV40,41,42..ATM199406

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iCV40,SV40,41,42..ATM199406

35159GASKET, BRAKE DRUM

main35159-32011iCV4#,SV4#..ATM199406

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32010iCV40,SV40,41,42..ATM199406

main35168-32020iCV43,SV43..ATM199406-199611

sub35168-33020

main35168-33020iCV43,SV43..ATM199611

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iCV4#,SV4#..ATM199406

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iCV4#,SV4#..ATM199406

35176CAP, WIRE HARNESS

main35176-32010iCV40,SV40..ATM199406

35176ARING, O (FOR WIRE HARNESS CAP)

main96721-24013iCV40,SV40..ATM199406

35179GASKET, OVERDRIVE BRAKE

main35179-32010iCV4#,SV4#..ATM199406

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCV4#,SV4#..ATM199406

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCV40,SV40,41,42..ATM199406

35395ASTRAINER, GOVERNOR OIL

main35395-32030iCV40,SV40..ATM199406

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iCV40,SV40,41,42..ATM199406

main35519-42010iCV43,SV43..ATM199406

9010508287

main90105-08287

9151261035

main91512-61035

9161160614

main91611-60614

9161161020

main91611-61020

9161260628

main91612-60628

9161261028

main91612-61028

91616G0614

main91616-G0614

37 parts on this diagram · 2 diagrams in section
