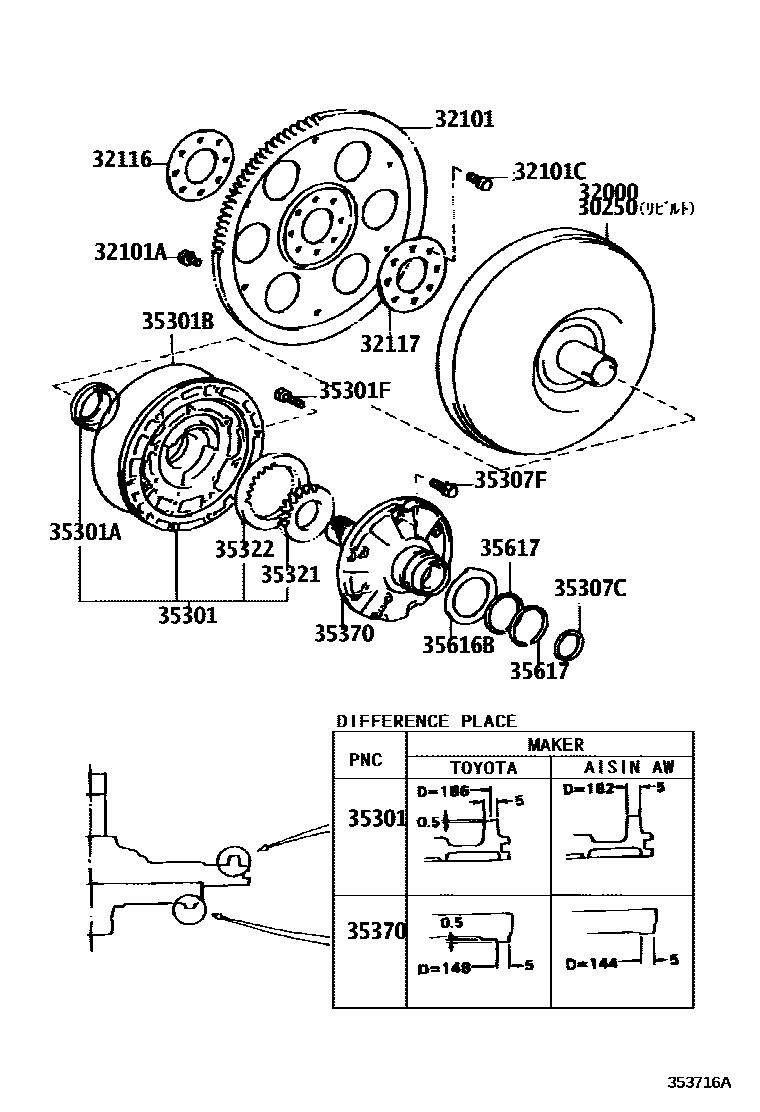

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20190iSV40,41,42..ATM199406-199806

main30250-32150iSV43..ATM199605-199806

main30250-33010iCV4#..ATM199406-199806

32000CONVERTER ASSY, TORQUE

main32000-20190iSV40..ATM199406-199806

main32000-32120iSV43..ATM199406-199605

main32000-32140iSV41,42199605-199806

sub32000-32150

main32000-32150iSV43..ATM199605-199806

main32000-33010iCV4#..ATM199406-199806

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-32051iSV40,41,42..ATM199406

main32101-32110iSV43..ATM199406

main32101-32120iCV40..ATM199406

main32101-32140iCV43199501

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iSV4#..ATM199406

main90109-09001iCV4#..ATM199708

main90119-08498iSV4#..ATM199406

main90119-09018iCV4#..ATM199406-199708

sub90119-09025

main90119-09019iCV4#..ATM199406-199708

sub90109-09001

main90119-09025iCV4#..ATM199708

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90109-10037iCV4#..ATM199406

main90109-10054iSV4#..ATM199406

32116SPACER, DRIVE PLATE, FRONT

main32116-20030iCV4#..ATM199406

main32116-32011iSV4#..ATM199406

32117SPACER, DRIVE PLATE, REAR

main32117-20040iCV4#..ATM199406

main32117-32010iSV4#..ATM199406

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iCV40,SV40,41,42..ATM199406

main35035-32020iCV40,SV40,41,42..ATM199406

sub35035-32H00

main35035-32030iCV43,SV43..ATM199406

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCV4#,SV4#..ATM199406

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iCV4#,SV4#..ATM199406

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iCV4#,SV4#..ATM199406

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iCV4#,SV4#..ATM199406

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iCV4#,SV4#..ATM199406-199512

main90119-06808iCV4#,SV4#..ATM199512

sub90119-06559

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iCV43,SV43..ATM199406

main35321-12030iCV43,SV43..ATM199406

main35321-12040iCV43,SV43..ATM199406

main35321-12050iCV43,SV43..ATM199406

main35321-12060iCV43,SV43..ATM199406

main35321-12070iCV40,SV40,41,42..ATM199406

main35321-12080iCV40,SV40,41,42..ATM199406

main35321-12090iCV40,SV40,41,42..ATM199406

main35321-12100iCV40,SV40,41,42..ATM199406

main35321-12110iCV40,SV40,41,42..ATM199406

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iCV43,SV43..ATM199406

main35322-12020iCV43,SV43..ATM199406

main35322-12030iCV43,SV43..ATM199406

main35322-12040iCV43,SV43..ATM199406

main35322-12050iCV43,SV43..ATM199406

main35322-12060iCV40,SV40,41,42..ATM199406

main35322-12070iCV40,SV40,41,42..ATM199406

main35322-12080iCV40,SV40,41,42..ATM199406

main35322-12090iCV40,SV40,41,42..ATM199406

main35322-12100iCV40,SV40,41,42..ATM199406

35370SHAFT ASSY, STATOR

main35370-12040iCV40,SV40,41,42..ATM199406

main35370-32050iCV40,SV40,41,42..ATM199406

sub35035-32H00

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iCV4#,SV4#..ATM199406

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iCV4#,SV4#..ATM199406

18 parts on this diagram · 1 diagram in section
