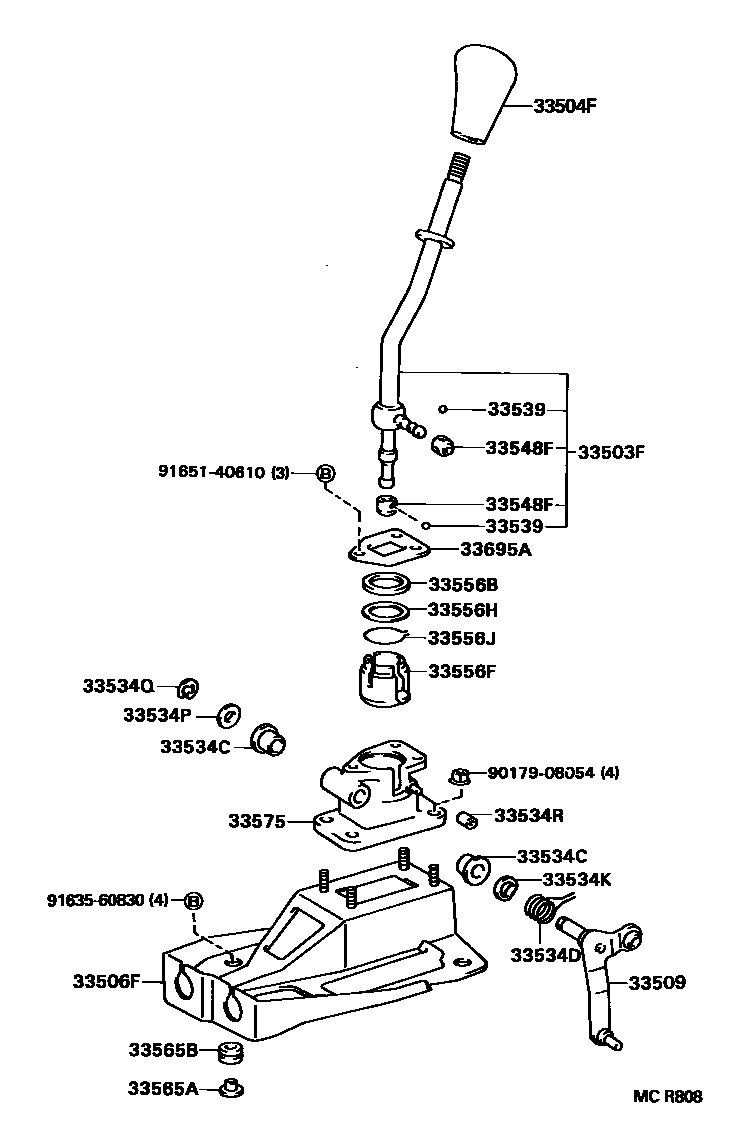

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-32130iSV43..MTM199406

main33055-32150iCV4#,SV4#..ATM199605

main33503-32190iCV4#,SV4#..ATM199406-199605

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-E3iCV40,SV40,43..MTM..(ETO,LUM,VX,ZX)199406-199806

OAK,TRIM4#

sub33504-12180

main33504-12180-P0iCV40,SV40,43..MTM..(ALPX,ETO,LUM,VX,ZX)199612-199806

sub33504-12180

main33504-12180-P0iCV40,SV40,43..MTM..(ALPX,ETO,LUM,VX,ZX)199406-199605

SHADOW GRAY,TRIM1#

sub33504-12180

main33504-14050-B1iCV40,SV40..MTM..(VJ,XJ)199406-199806

DARK SMOKE GRAY,TRIM1#,KOJIMA PRESS

sub33504-14050

sub33504-14070

main33504-14050-E2iCV40,SV40..MTM..(VJ,XJ)199406-199806

OAK,TRIM4#,KOJIMA PRESS

sub33504-14050

sub33504-14070

main33504-14070-E1iCV40,SV40..MTM..(VJ,XJ)199605-199806

OAK,TRIM4#,TOYOTA GOSEI

sub33504-14070

sub33504-14050

main33504-14070-E1iCV40,SV40..MTM..(VJ,XJ)199406-199605

OAK,TRIM4#,TOYOTA G0SEI

sub33504-14070

sub33504-14050

main33504-14070-P0iCV40,SV40..MTM..(VJ,XJ)199406-199605

SHADOW GRAY,TRIM1#,TOYOTA G0SEI

sub33504-14070

sub33504-14050

main33504-14070-P0iCV40,SV40..MTM..(VJ,XJ)199605-199806

SHADOW GRAY,TRIM1#,TOYOTA GOSEI

sub33504-14070

sub33504-14050

main33542-12181-B0iCV4#,SV4#..ATM199406-199806

SHADOW GRAY,TRIM1#

sub33542-12181

main33542-12181-E0iCV4#,SV4#..ATM..(ETO,LUM,VJ,VX,XJ,ZX)199406-199806

OAK,TRIM4#

sub33542-12181

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-32070iSV43..MTM199406

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12080iSV43..MTM199406

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034iSV43..MTM199406

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iSV43..MTM199406

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iSV43..MTM199406

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iSV43..MTM199406

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iSV43..MTM199406

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iSV43..MTM199406

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iSV43..MTM199406

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iSV43..MTM199406

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90389-37001iSV43..MTM199406

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20040iSV43..MTM199406

33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90564-37009iSV43..MTM199406

main90564-37010iSV43..MTM199406

main90564-37011iSV43..MTM199406

main90564-37012iSV43..MTM199406

main90564-37013iSV43..MTM199406

main90564-37014iSV43..MTM199406

main90564-37015iSV43..MTM199406

main90564-37016iSV43..MTM199406

main90564-37017iSV43..MTM199406

main90564-37018iSV43..MTM199406

main90564-37019iSV43..MTM199406

main90564-37020iSV43..MTM199406

main90564-37021iSV43..MTM199406

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iSV43..MTM199406

33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-08092iSV43..MTM199406

33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90385-09008iSV43..MTM199406

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-20362iSV43..MTM199406

33695ACOVER, SHIFT LEVER BALL

main33695-32010iSV43..MTM199406

9017908054

main90179-08054

9163560830

main91635-60830

9165140610

main91651-40610

23 parts on this diagram · 6 diagrams in section
