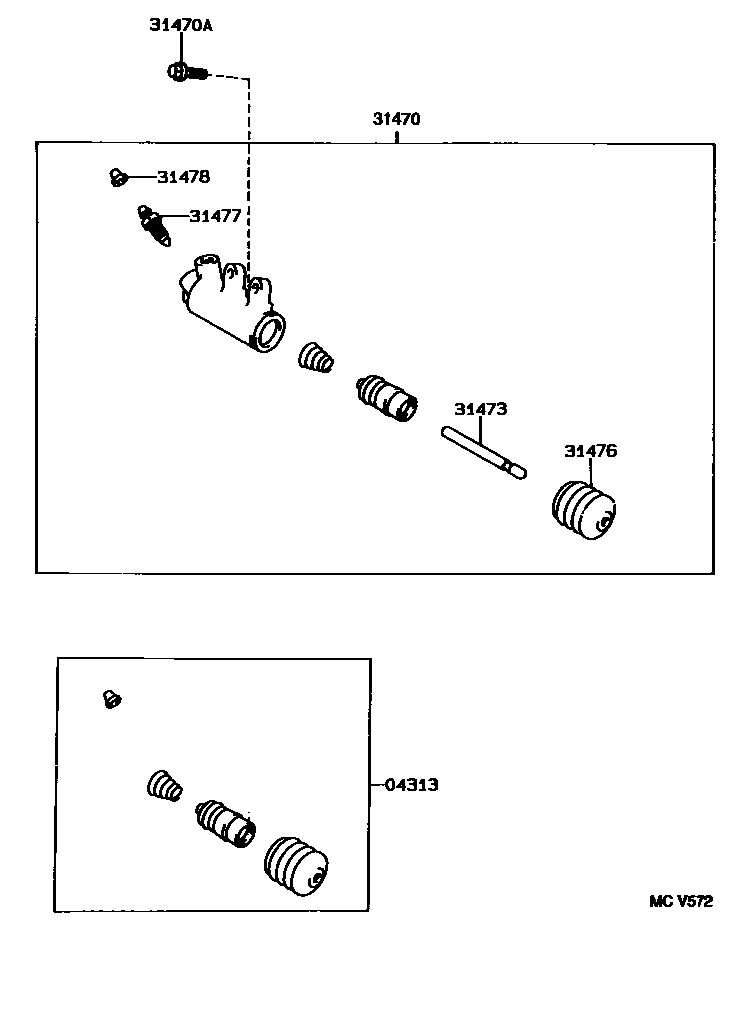

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCV40,SV40,43..MTM¥780199406-199605

main04313-17020iSV40,43..MTM¥990199605

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20210iSV40,43..MTM¥9,500199605

main31470-32022iCV40..MTM¥7,400199406

sub31470-32023¥7,400

main31470-32032iSV40,43..MTM¥7,400199406-199605

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iSV43..MTM¥170199406

main91611-60825iCV40,SV40..MTM¥140199406

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCV40,SV40,43..MTM¥720199406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCV40,SV40,43..MTM¥230199406

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCV40,SV40,43..MTM¥200199406

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCV40,SV40,43..MTM¥160199406

7 parts on this diagram · 2 diagrams in section
