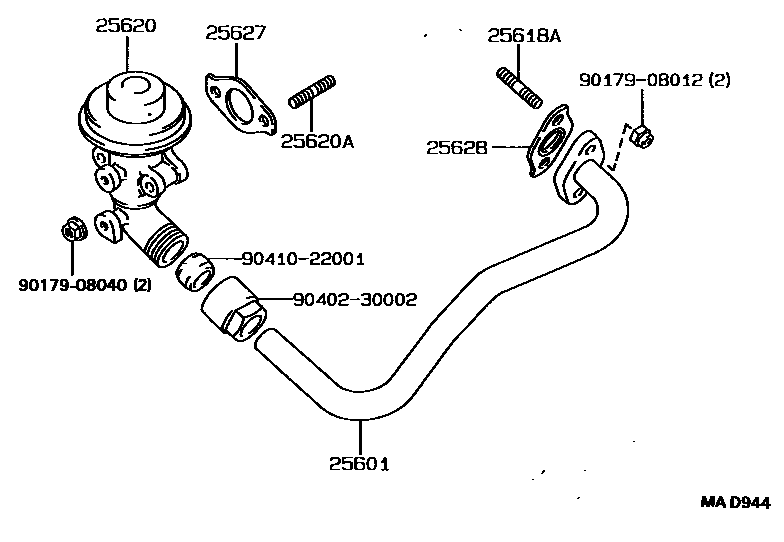

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64030i3CT..CV4#199406-199707

sub25601-64031

main25601-64031i3CT..CV4#199707

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822i3CT..CV4#199406

25620VALVE ASSY, EGR

main25620-64130i3CT..CV4#199406

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198i3CT..CV4#199406

25627GASKET, EGR VALVE

main25627-64030i3CT..CV4#199406

25628GASKET, EGR INLET

main25628-64030i3CT..CV4#199406

9017908012

main90179-08012

9017908040

main90179-08040

9040230002

main90402-30002

9041022001

main90410-22001

10 parts on this diagram · 1 diagram in section
