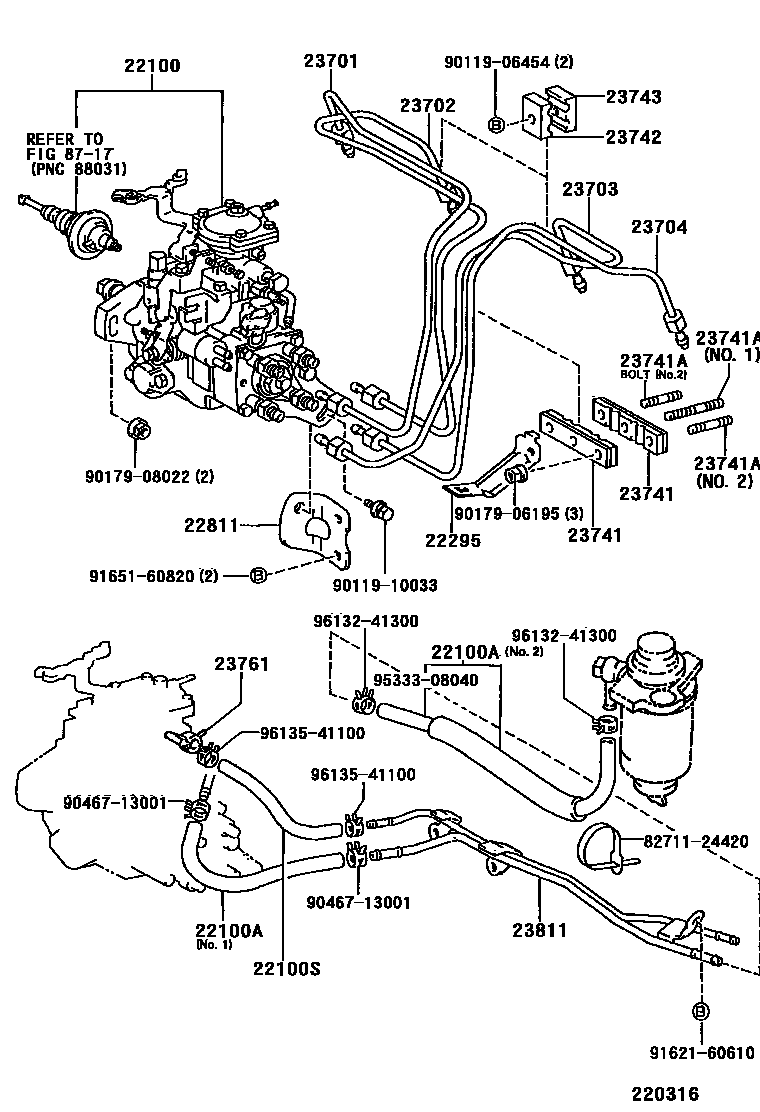

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6D670i3CT..CV40..MTM199406-199605

main22100-6D680i3CT..CV40..ATM199406

main22100-6D740i3CT..CV43199501

main22100-6E030i3CT..CV40..MTM199605

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23273-64030i3CT..CV4#199406

main90447-14075i3CT..CV4#199406

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95333-06020i3CT..CV4#199406

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64011i3CT..CV4#199406

22811STAY, INJECTION PUMP, NO.1

main22811-64020i3CT..CV4#199406

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64110i3CT..CV4#199406

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64110i3CT..CV4#199406

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64090i3CT..CV4#199406

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64110i3CT..CV4#199406

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i3CT..CV4#199406

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i3CT..CV4#199406

sub90116-06095

main92122-60622i3CT..CV4#199406

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i3CT..CV4#199406

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i3CT..CV4#199406

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64041i3CT..CV4#199406

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64050i3CT..CV4#199406

8717

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9011906454

main90119-06454

9011910033

main90119-10033

9017906195

main90179-06195

9017908022

main90179-08022

9046713001

main90467-13001

9162160610

main91621-60610

9165160820

main91651-60820

9533308040

main95333-08040

9613241300

main96132-41300

9613541100

main96135-41100

27 parts on this diagram · 1 diagram in section
