STARTER

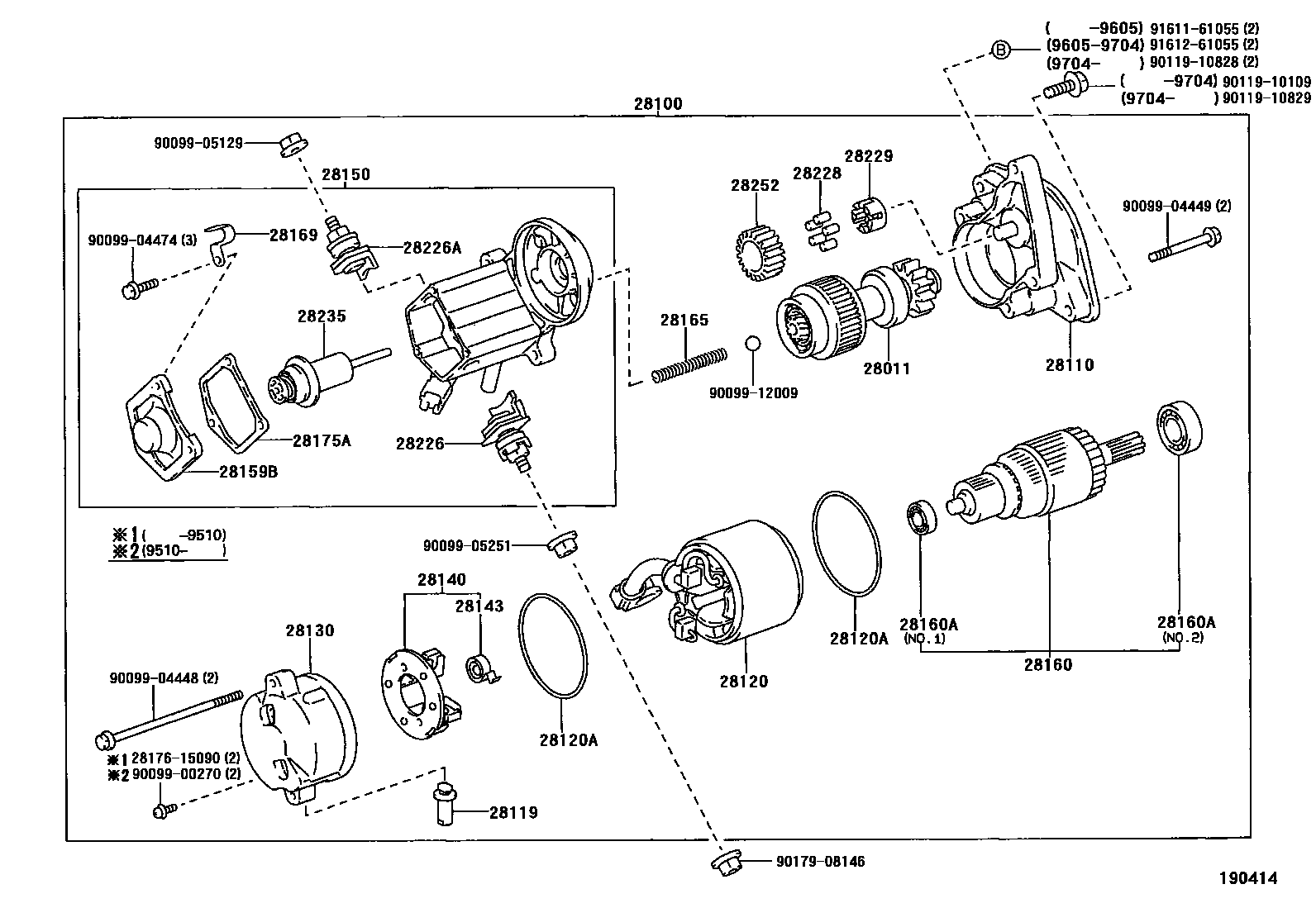

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-64010i199406

main28011-64130i199406

main28011-74060i199406

28100STARTER ASSY

main28100-64300i199406

main28100-64310i199406

main28100-74200i199406

28110HOUSING ASSY, STARTER DRIVE

main28110-64170i199406

main28110-74110i199406

main28115-64040i199406

28119COVER, STARTER END FRAME

main28199-46080i199406

main28199-74110i199406

28120YOKE ASSY, STARTER

main28120-26071i199406

main28120-55050i199708

main28120-64040i199406

main28120-64130i199406-199708

28120ARING, O(FOR STARTER YOKE)

main90099-14064i199406

main90099-64040i199406

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-64130i199406

main28130-74110i199406

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i199406

main28140-64130i199406

main28140-74010i199406

28143SPRING, STARTER BRUSH

main90099-17112i199406

main90099-17115i199406

28150SWITCH ASSY, MAGNET STARTER

main28150-64300i199406-199708

main28150-64310i199406

main28150-64341i199708

main28150-74200i199406

28159BCOVER, MAGNET SWITCH

main28159-10040i199406

main28159-55050i199406

28160ARMATURE ASSY, STARTER

main28160-26071i199406

main28160-64041i199406

main28160-74070i199406

28160ABEARING, STARTER ARMATURE

main28253-45020i199406

main28253-54070i199406

main90099-10113i199406

main90099-10143i199406

main90099-10196i199406

main90099-10197i199406

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i199406

main28165-74010i199406

main28165-76070i199406

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i199406-199605

main28169-55050i199406-199708

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i199406

main28175-55050i199406

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i199406-199806

main28226-70040i199406-199806

main28226-76100i199406-199806

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i199406

main28226-74070i199406

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i199406

28229RETAINER, STARTER IDLE GEAR

main28229-26040i199406

main28229-74070i199406

28235PLUNGER, MAGNET SWITCH

main28235-35080i199406

main28235-55050i199406

main28235-74060i199406

28252GEAR, STARTER IDLE

main28254-54070i199406

main28254-64040i199406

main28254-64130i199406

2817615090SCREW, STARTER

main28176-15090

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9011910109

main90119-10109

9011910828

main90119-10828

9011910829

main90119-10829

9017908146

main90179-08146

9161161055

main91611-61055

9161261055

main91612-61055

36 parts on this diagram · 3 diagrams in section
