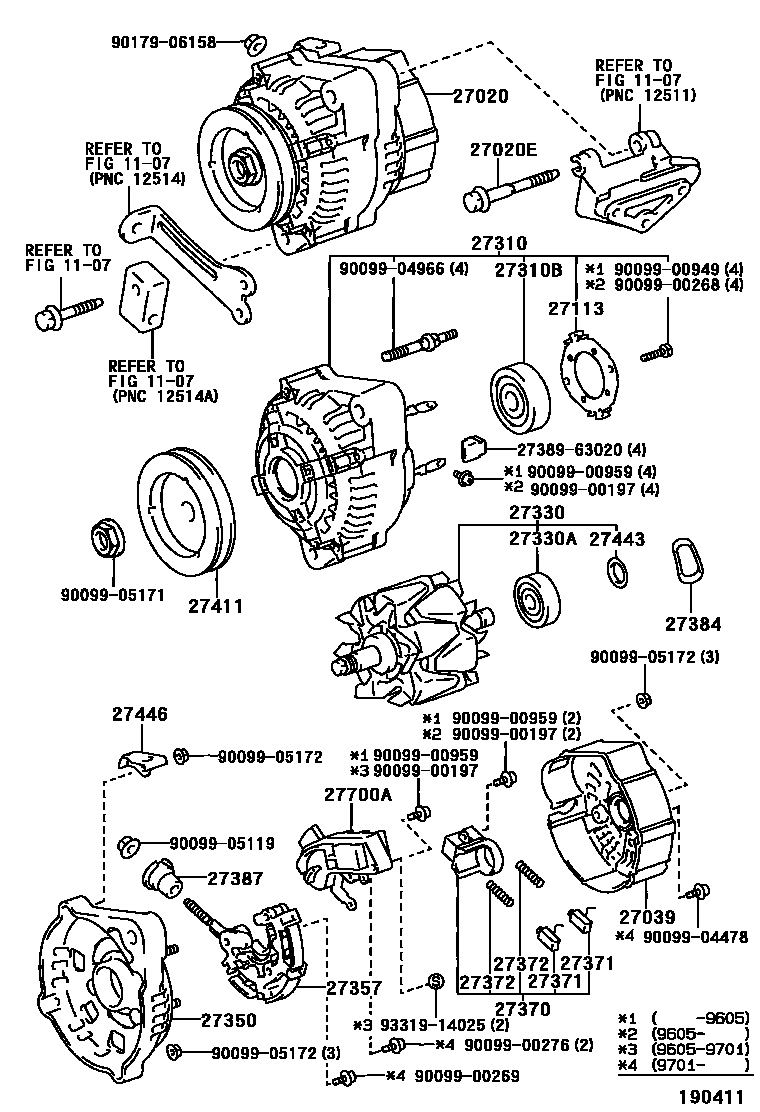

ALTERNATOR

0001 112V 70A 0002 112V 80A 0003 112V 70A 0004 112V 80A

1107

27020ALTERNATOR ASSY

main27060-64110i3CT..CV43199501

main27060-64260i3CT..CV40199406-199605

sub27060-64290

main27060-64290i3CT..CV40199605

main27060-74400i3SFE,4SFE..SV40,43..MTM199406

sub27060-74370

main27060-74410i3SFE,4SFE..SV4#..ATM199406

27020EBOLT(FOR ALTERNATOR)

main90105-10249i3SFE,4SFE..SV4#199406

main90901-05004i3CT..CV4#199406

27039COVER, ALTERNATOR REAR END

main27039-16380i3SFE,4SFE..SV40,43..MTM199701

main27039-20020i3CT..CV43199501

sub27039-28090

main27039-55080i3SFE,4SFE..SV4#..ATM199406

sub27039-70470

main27039-64190i3CT..CV43199501

main27039-64270i3CT..CV40199406-199701

sub27039-67271

main27039-67271i3CT..CV40199701

main27039-73020i3SFE,4SFE..SV40,43..MTM199406-199701

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

main27312-70200i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-64450i3CT..CV43199501

main27310-64570i3CT..CV40199406

main27310-70100i3SFE,4SFE..SV40,43..MTM199406

main27310-74120i3SFE,4SFE..SV4#..ATM199406

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406

main90099-10192i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

27330ROTOR ASSY, ALTERNATOR

main27330-64570i3CT..CV40199406-199701

main27330-72101i3SFE,4SFE..SV40,43..MTM199406-199701

main27330-76030i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3CT,3SFE,4SFE..CV4#,SV4#199406

27350FRAME ASSY, RECTIFIER END

main27350-64570i3CT..CV40199406-199601

sub27350-64571

sub27384-16380

main27350-64571i3CT..CV40199601-199701

main27350-64572i3CT..CV40199701

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16380i3CT..CV40;3SFE,4SFE..SV40,43..MTM199701

main27357-55080i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

main27357-63020i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406-199701

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3SFE,4SFE..SV40,43..MTM199406

main27370-54450i3CT..CV40199406-199601

sub27370-58320

main27370-58320i3CT..CV40199601

main27370-75060i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

27371BRUSH, ALTERNATOR

main27371-70300i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406

sub27372-87501

27384WASHER

main27384-16380i3CT..CV40;3SFE,4SFE..SV40,43..MTM199605

main27384-50030i3CT,3SFE,4SFE..CV43,SV4#..ATM199406

27387INSULATOR, TERMINAL

main27387-42020i3CT,3SFE,4SFE..CV43,SV4#..ATM199406-199708

main27387-42021i3CT,3SFE,4SFE..CV43,SV4#..ATM199708

main27387-70170i3CT..CV40;3SFE,4SFE..SV40,43..MTM199406-199709

main27387-70171i3CT..CV40;3SFE,4SFE..SV40,43..MTM199709

27411PULLEY, ALTERNATOR

main27411-16211i3SFE,4SFE..SV40,43..MTM199406

main27411-42030i3SFE,4SFE..SV4#..ATM199406

main27411-64320i3CT..CV43199501-199605

main27411-64360i3CT..CV43199605

main27411-64390i3CT..CV40199605

main27411-64570i3CT..CV40199406-199605

27443COVER, ALTERNATOR BEARING

main27443-63020i3CT,3SFE,4SFE..CV4#,SV4#199406

27446CLIP, ALTERNATOR CORD

main27446-64450i3CT..CV4#199406-199605

main27446-74250i3SFE,4SFE..SV4#199406

27700AREGULATOR ASSY, GENERATOR

main27700-64130i3CT..CV4#199406

sub27700-46060

main27700-74040i3SFE,4SFE..SV4#199406

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009900949

main90099-00949

9009900959

main90099-00959

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

34 parts on this diagram · 4 diagrams in section
