IGNITION COIL & SPARK PLUG / GLOW PLUG

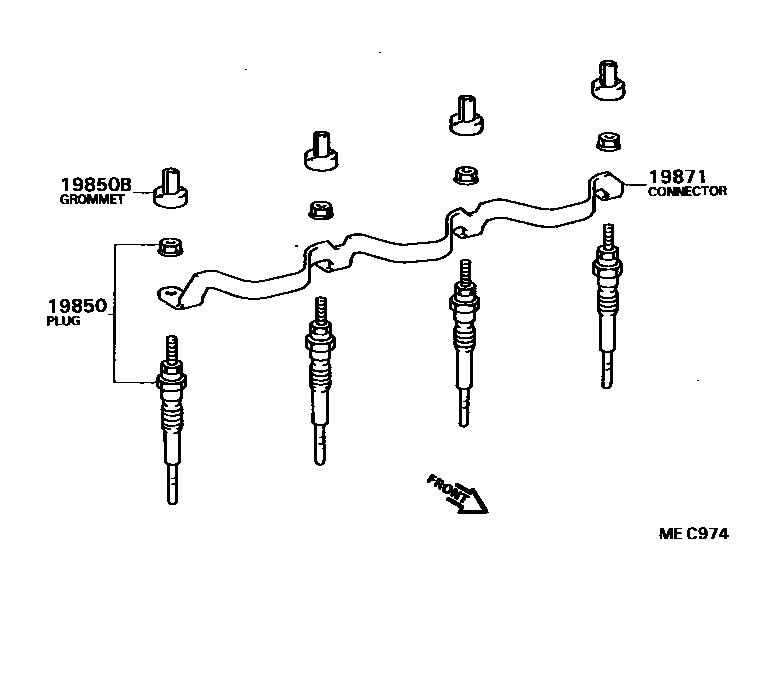

Parts diagram
19850PLUG ASSY, GLOW
main19850-67020i199406-199605
sub19850-67030
main19850-67030i199605
19850BGROMMET, SCREW(FOR GLOW PLUG)
main90189-04024i199406
19871CONNECTOR, GLOW PLUG NO.1
main19871-64023i199406-199509
sub19871-64024
main19871-64024i199509
sub19871-64025

3 parts on this diagram · 4 diagrams in section
