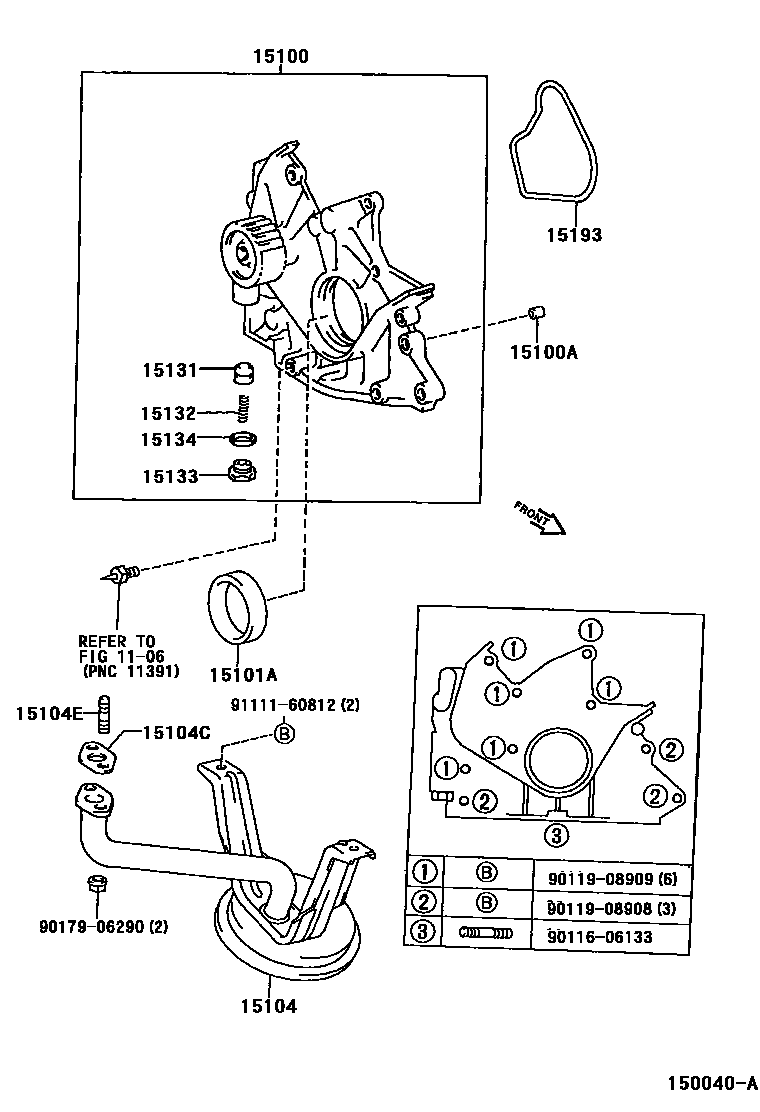

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1106

15100PUMP ASSY, OIL

main15100-64040i3CT..CV4#199406

sub15100-64041

sub90119-08B81

main15100-74010i3SFE,4SFE..SV4#199406-199507

sub15100-74060

sub15197-74040

main15100-74050i3SFE,4SFE..SV4#199605

main15100-74060i3SFE,4SFE..SV4#199507-199605

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i3CT..CV4#199406

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3SFE,4SFE..SV4#199406-199608

main90311-42030i3CT..CV4#199406-199606

sub90311-42031

main90311-42031i3CT..CV4#199606

main90311-42032i3SFE,4SFE..SV4#199609-199710

sub90311-42035

main90311-42035i3SFE,4SFE..SV4#199710

15104STRAINER SUB-ASSY, OIL

main15104-64070i3CT..CV4#199406-199605

main15104-64080i3CT..CV4#199605

main15104-74090i3SFE,4SFE..SV4#199605

main15104-88380i3SFE,4SFE..SV4#199406-199605

15104CGASKET(FOR OIL STRAINER)

main15149-64030i3CT..CV4#199406

sub15149-64070

main15149-74030i3SFE,4SFE..SV4#199406

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06132i3CT..CV4#199406

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE,4SFE..SV4#199406

main15131-64020i3CT..CV4#199406

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE,4SFE..SV4#199406

main15132-64012i3CT..CV4#199406

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i3CT..CV4#199406

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i3CT..CV4#199406

15193GASKET, OIL PUMP

main15193-64021i3CT..CV4#199406-199804

sub15193-64022

main15193-64022i3CT..CV4#199804-199806

main15197-74030i3SFE,4SFE..SV4#199406-199507

main15197-74040i3SFE,4SFE..SV4#199507

9011606133

main90116-06133

9011908908

main90119-08908

9011908909

main90119-08909

9017906290

main90179-06290

9111160812

main91111-60812

17 parts on this diagram · 3 diagrams in section
