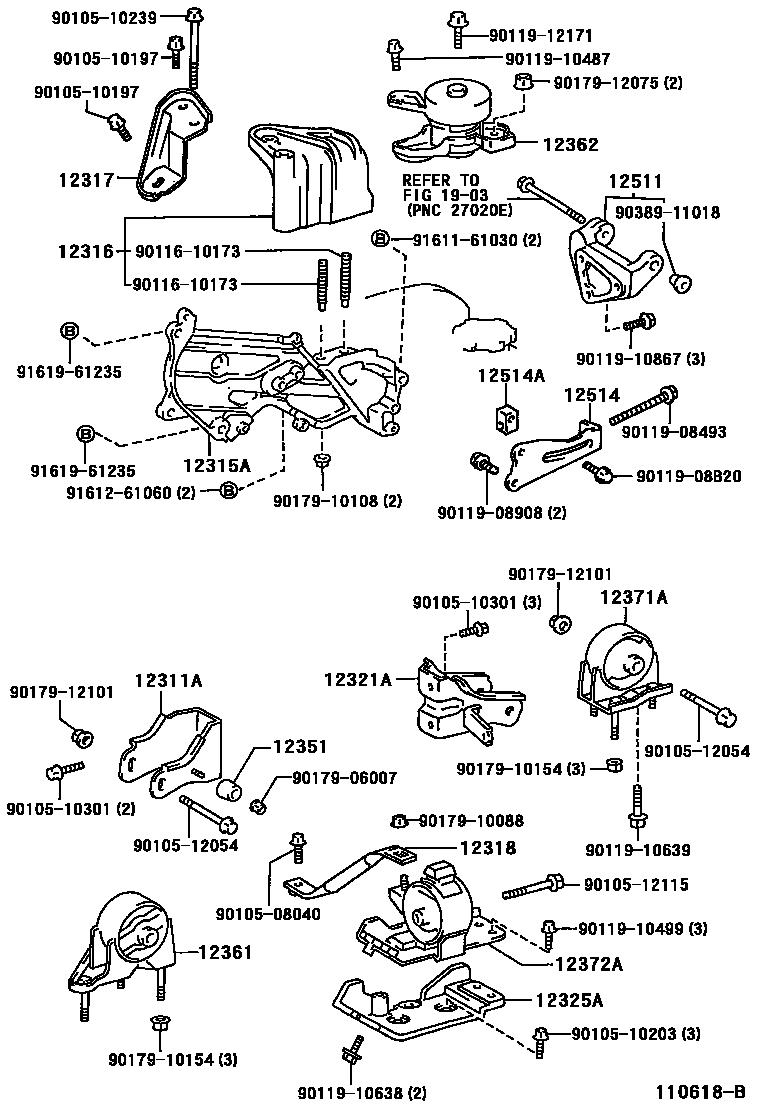

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-64170i3CT..CV40199406

main12311-64190i3CT..CV43199501

main12311-74030i3SFE,4SFE..SV40,41,42199406

main12311-74110i3SFE..SV43199406

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-64050i3CT..CV4#199406

main12315-74060i3SFE,4SFE..SV40,41,42199406-199605

sub12315-74061

main12315-74061i3SFE,4SFE..SV40,41,42199605

main12315-74090i3SFE..SV43199406-199605

sub12315-74091

main12315-74091i3SFE..SV43199605

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-64010i3CT..CV40199406

main12316-64070i3CT..CV43199501

main12316-74020i3SFE,4SFE..SV4#199406

12317STAY, ENGINE MOUNTING, RH

main12317-64060i3CT..CV4#199406

main12317-74060i3SFE,4SFE..SV40,41,42199406

main12317-74120i3SFE..SV43199406

12318STAY, ENGINE MOUNTING, LH

main12318-64090i3SFE,4SFE..SV40,41,42..ATM199406

main12318-74060i3CT..CV40..MTM199406

main12318-74070i3SFE..SV43..ATM199406

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-74210i4SFE..SV40..MTM199406

main12321-74220i3SFE..SV41,42199406

main12321-74230i3SFE..SV43..MTM199406

main12321-74240i3CT..CV43199406

main12321-74360i4SFE..SV40..ATM199406

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-74140i3CT..CV40..MTM199406

main12325-74160i3SFE..SV43..MTM199406

main12325-74220i4SFE..SV40..ATM199406

main12325-74280i3SFE..SV41,42199406

main12325-74290i3CT..CV43199406

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SFE..SV43..ATM199406

main12351-63010i3SFE..SV43..ATM199406

main12351-64020i4SFE..SV40..MTM199406

main12351-74020i3SFE..SV43..ATM199406

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-62060i3SFE,4SFE..SV4#..ATM199406

main12361-74200i3CT..CV40..MTM199406

main12361-74210i3CT..CV4#..ATM199406

main12361-74220i3SFE..SV43..MTM199406

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-64210i3CT..CV43199501

main12362-74260i3SFE,4SFE..SV40,41,42199406-199512

sub12362-74261

main12362-74261i3SFE,4SFE..SV40,41,42199512

main12362-74270i3CT..CV40199406-199410

sub12362-74271

main12362-74271i3SFE..SV43199410-199512

sub12362-74272

main12362-74272i3SFE..SV43199512

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62030i3CT..CV40..MTM199406

main12371-64190i3SFE..SV41,42199406

main12371-74280i3SFE..SV43..MTM199406

main12371-74291i3SFE..SV43..ATM199406

main12371-74480i4SFE..SV40..ATM199406

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-74300i4SFE..SV40..MTM199406

main12372-74320i3SFE..SV43..MTM199406

main12372-74420i4SFE..SV40..ATM199406

main12372-74530i3CT..CV40..ATM199406

main12372-74540i3SFE..SV43..ATM199406

12511BRACKET, ALTERNATOR, NO.1

main12511-64060i3CT..CV4#199406

main12511-74051i3SFE,4SFE..SV4#199406

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74011i3SFE,4SFE..SV4#199406-199605

sub12514-74012

sub91621-60845

main12514-74050i3SFE,4SFE..SV4#199605-199702

sub12514-74051

sub91621-60845

main12514-74051i3SFE,4SFE..SV4#199702

main16381-64080i3CT..CV4#199406

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i3CT..CV4#199406

1903

9010508040

main90105-08040

9010510197

main90105-10197

9010510203

main90105-10203

9010510239

main90105-10239

9010510301

main90105-10301

9010512054

main90105-12054

9010512115

main90105-12115

9011610173

main90116-10173

9011908493

main90119-08493

9011908908

main90119-08908

9011908B20

main90119-08B20

9011910487

main90119-10487

9011910499

main90119-10499

9011910638

main90119-10638

9011910639

main90119-10639

9011910867

main90119-10867

9011912171

main90119-12171

9017906007

main90179-06007

9017910088

main90179-10088

9017910108

main90179-10108

9017910154

main90179-10154

9017912075

main90179-12075

9017912101

main90179-12101

9038911018

main90389-11018

9161161030

main91611-61030

9161261060

main91612-61060

9161961235

main91619-61235

43 parts on this diagram · 4 diagrams in section
