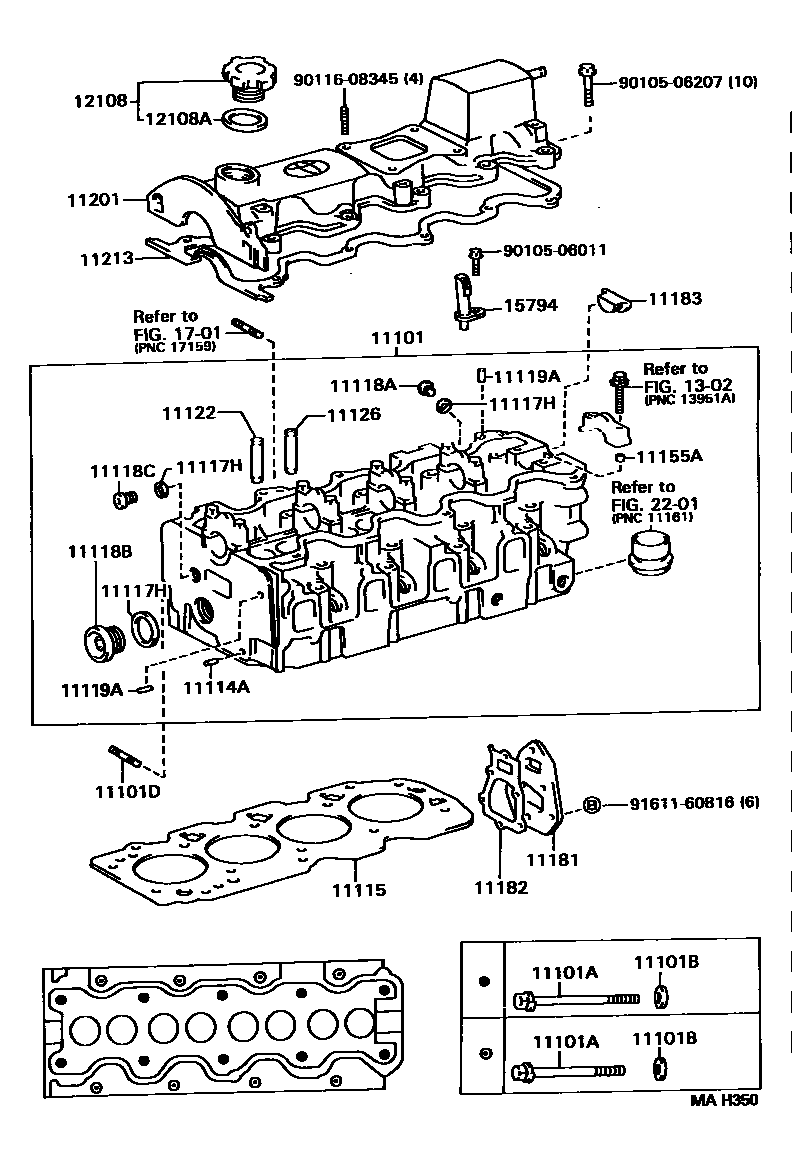

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-64211i3CT..CV4#199506-199605

sub11101-64212

sub90201-22010

main11101-64230i3CT..CV4#199406-199506

sub11101-64231

sub90201-22010

main11101-64261i3CT..CV4#199605-199705

sub11101-64262

sub90201-22010

main11101-64262i3CT..CV4#199705-199708

sub11101-64263

sub11176-64020

main11101-64263i3CT..CV4#199708

main11101-74900i3SFE,4SFE..SV4#199406-199601

main11101-79156i3SFE,4SFE..SV4#199605

main11101-79165i3SFE,4SFE..SV4#199601-199605

sub11101-79175

11101ABOLT(FOR CYLINDER HEAD SET)

main90109-10132i3SFE,4SFE..SV4#199406

main90910-02097i3CT..CV4#199406-199605

main90910-02097i3CT..CV4#199605

*11-1.25P X 123-53

main90910-02099i3CT..CV4#199406-199605

main90910-02099i3CT..CV4#199605

*11-1.25P X 145-53

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11026i3SFE,4SFE..SV4#199406

main90201-12222i3CT..CV4#199406

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i3CT..CV4#199406

11114APIN, STRAIGHT

main90250-06068i3CT..CV4#199406

11115GASKET, CYLINDER HEAD

main11115-64130i3CT..CV4#199406-199708

sub11115-64131

main11115-64130-01i3CT..CV4#199708

MARK 1

sub11115-64130

sub11115-64131

main11115-64130-02i3CT..CV4#199708

MARK 2

sub11115-64130

sub11115-64131

main11115-64130-03i3CT..CV4#199708

MARK 3

sub11115-64130

sub11115-64131

main11115-74060i4SFE..SV40199406

main11115-74070i3SFE..SV41,42,43199406-199601

main11115-74110i3SFE..SV41,42,43199601

11117HGASKET(FOR WATER HOLE)

main90430-10204i3CT..CV4#199406-199705

main90430-12010i3CT..CV4#199406-199705

main90430-24246i3SFE,4SFE..SV4#199406

main90430-33133i3CT..CV4#199406-199705

11118APLUG, STRAIGHT, NO.1

main90341-10005i3CT..CV4#199406-199705

11118BPLUG, STRAIGHT, NO.2

main90341-32070i3CT..CV4#199406-199705

11118CPLUG, STRAIGHT, NO.3

main90341-12013i3CT..CV4#199406-199705

11119APIN, STRAIGHT, NO.1

main90250-06003i3SFE,4SFE..SV4#199406

main90250-06013i3CT..CV4#199406

main90250-06068i3CT..CV4#199406

11122BUSH, INTAKE VALVE GUIDE

main11122-64010i3CT..CV4#199406

main11122-74030i3SFE,4SFE..SV4#199406

main11123-64010i3CT..CV4#199406

main11123-74030i3SFE,4SFE..SV4#199406

11126BUSH, EXHAUST VALVE GUIDE

main11122-16010i3SFE,4SFE..SV4#199406

sub11122-16020

main11123-16010i3SFE,4SFE..SV4#199406

main11126-64010i3CT..CV4#199406-199708

sub11126-64030

main11126-64030i3CT..CV4#199708

main11127-64010i3CT..CV4#199406-199708

sub11127-64030

main11127-64030i3CT..CV4#199708

11155APIN, RING W/HEAD

main90253-10004i3SFE,4SFE..SV4#199406

main90253-11021i3CT..CV4#199406

11181PLATE, CYLINDER HEAD, REAR

main11181-64010i3CT..CV4#199406

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-64020i3CT..CV4#199406-199505

sub11182-64021

main11182-64021i3CT..CV4#199505

11183PLUG, SEMICIRCULAR

main11183-64010i3CT..CV4#199406

main11183-74010i3SFE,4SFE..SV4#199406

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-64110i3CT..CV4#199406-199602

sub11201-64111

main11201-64111i3CT..CV4#199602-199605

main11201-64141i3CT..CV4#199605

main11201-74050i3SFE,4SFE..SV4#199406-199605

sub11201-74051

main11201-74070i3SFE,4SFE..SV4#199605

sub11201-74071

11213GASKET, CYLINDER HEAD COVER

main11213-64060i3CT..CV4#199406-199605

sub11213-64061

main11213-64061i3CT..CV4#199605

main11213-74020i3SFE,4SFE..SV4#199406

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i3CT..CV4#199406

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i3CT..CV4#199406

1302

15794NOZZLE, CYLINDER HEAD OIL

main15794-64011i3CT..CV4#199406

1701

2201

9010506011

main90105-06011

9010506207

main90105-06207

9011608345

main90116-08345

9161160816

main91611-60816

29 parts on this diagram · 4 diagrams in section
