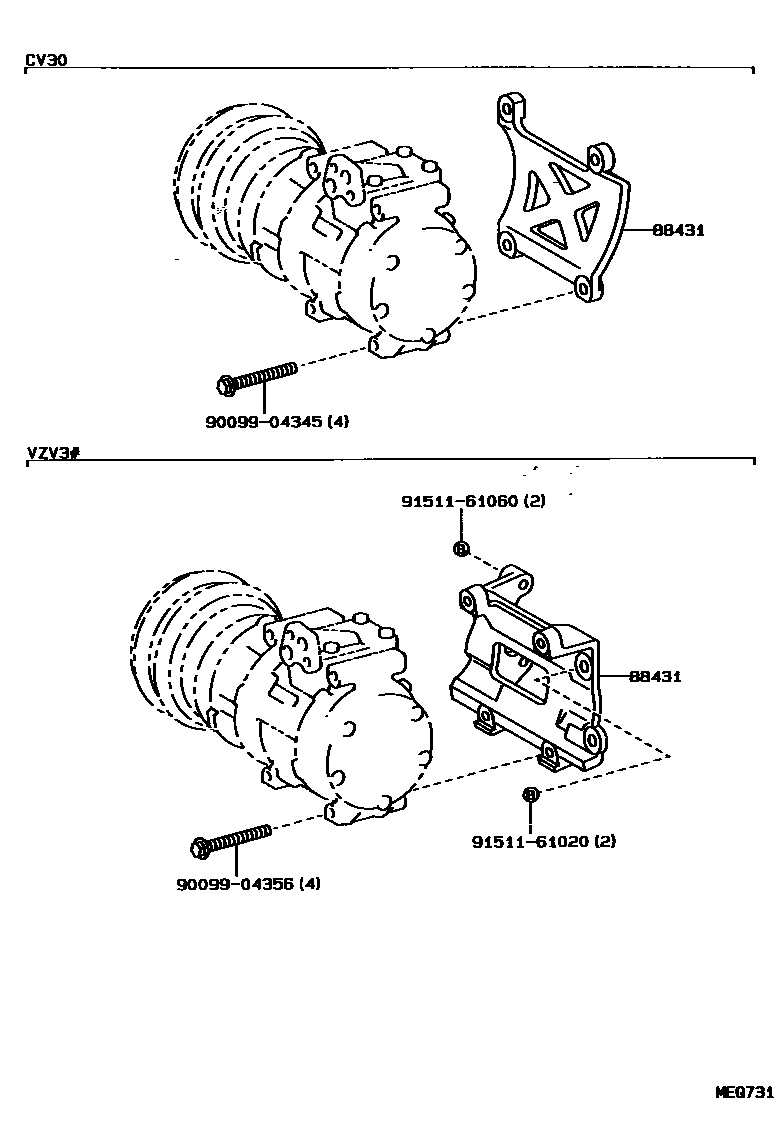

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCV30199007-199406

main88431-32020iVZV3#199007-199406

9009904345

main90099-04345

9009904356

main90099-04356

9151161020

main91511-61020

9151161060

main91511-61060

5 parts on this diagram · 3 diagrams in section
