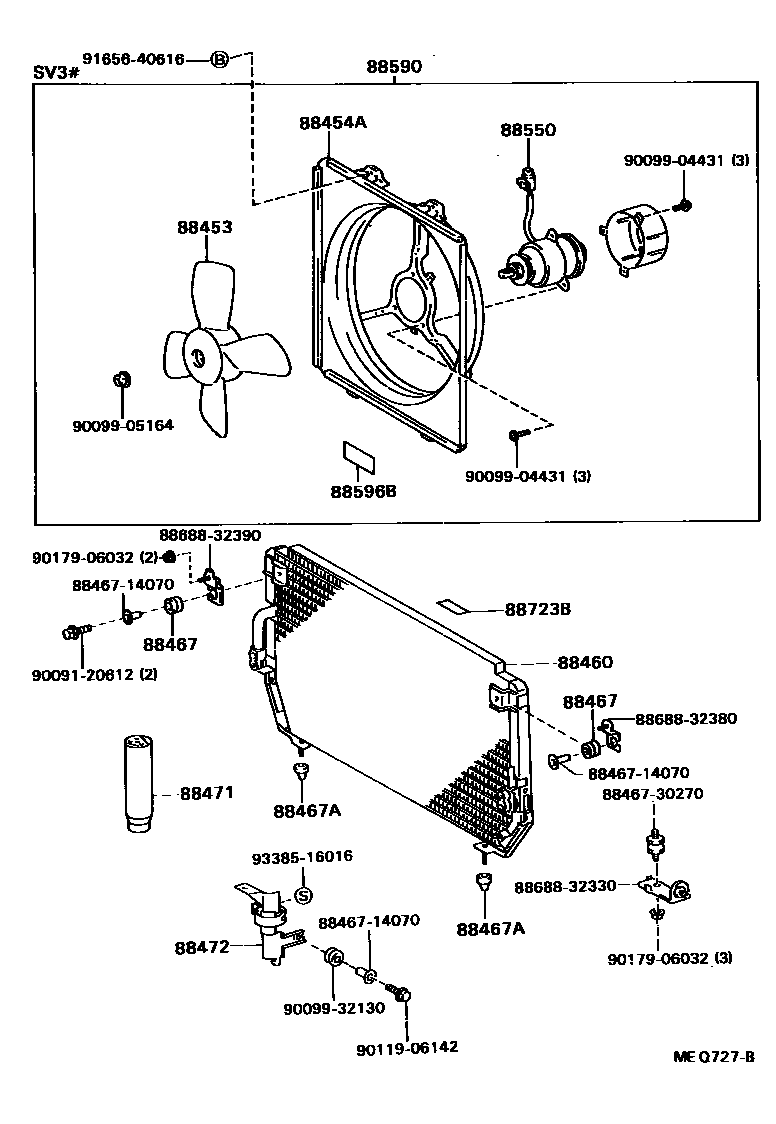

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

88453FAN, COOLING (FOR CONDENSER)

main88453-10020iSV32,33..GT199007-199206

main88453-32050iSV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

88454ASHROUD, FAN

main88454-32060iSV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main88454-32070iSV32,33..GT199007-199206

88460CONDENSER ASSY, COOLER

main88460-32140iVZV3#199007-199206

main88460-32150iSV32,33..GT199007-199206

main88460-32160iSV30199007-199206

main88460-32170iCV30199007-199206

sub88460-32160

main88460-32190iCV30,SV3#,VZV3#199206-199406

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32050iCV30199007-199206

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-32060iCV30199007-199406

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iCV30,SV3#,VZV3#199305-199406

sub88471-34010

main88471-34010iCV30,SV3#,VZV3#199206-199305

main88471-50010iSV3#,VZV3#199007-199206

sub88471-16040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32040iVZV3#199007-199206

main88473-32050iCV30199007-199206

main88473-32060iCV30,SV3#,VZV3#199206-199406

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-32090iSV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main88550-32100iSV32,33..GT199007-199206

main88550-32110iSV3#199206-199406

88590BLOWER ASSY, W/SHROUD

main88590-32140iSV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main88590-32150iSV32,33..GT199007-199206

main88590-32160iSV3#199206-199406

88596BPLATE, CAUTION, NO.1

main88596-24010iSV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main88723-20030iSV3#..ETO,LUM,VL,XT199206-199406

sub88733-30040

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iCV30,SV3#,VZV3#199206-199406

sub88733-30040

main88723-22040iCV30199007-199206

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8868832330BRACKET, COOLER DIAPHRAGM

main88688-32330

8868832380BRACKET, COOLER DIAPHRAGM

main88688-32380

8868832390BRACKET, COOLER DIAPHRAGM

main88688-32390

9009120612

main90091-20612

9009904431

main90099-04431

9009905164

main90099-05164

9009932130

main90099-32130

9011906142

main90119-06142

9017906032

main90179-06032

9165640616

main91656-40616

9338516016

main93385-16016

24 parts on this diagram · 11 diagrams in section
