ELECTRONIC MODULATED SUSPENSION

89243COMPUTER, ABSORBER CONTROL

main89243-32050iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199406

89244WIRE, ABSORBER CONTROL, REAR

main89244-32010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199206

main89244-33020iSV32,33,VZV3#..PRO,VX,ZX199206-199406

89249SWITCH, ABSORBER CONTROL

main89249-16030iSV32,33,VZV3#..PRO,VX,ZX199208-199406

main89249-32030iSV32,33,VZV32,33..GT,PRO,VX,ZX199007-199208

sub89249-16030

89253WIRE, ABSORBER CONTROL, FRONT RH

main89253-32020iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199406

89254WIRE, ABSORBER CONTROL, FRONT LH

main89254-32020iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199406

89401SENSOR SUB-ASSY, SUSPENSION STROKE, FRONT

main89401-32010iSV32,33,VZV3#..GT,PRO,VX,ZX199007-199406

9017905011

main90179-05011

9161640616

main91616-40616

91656B0616

main91656-B0616

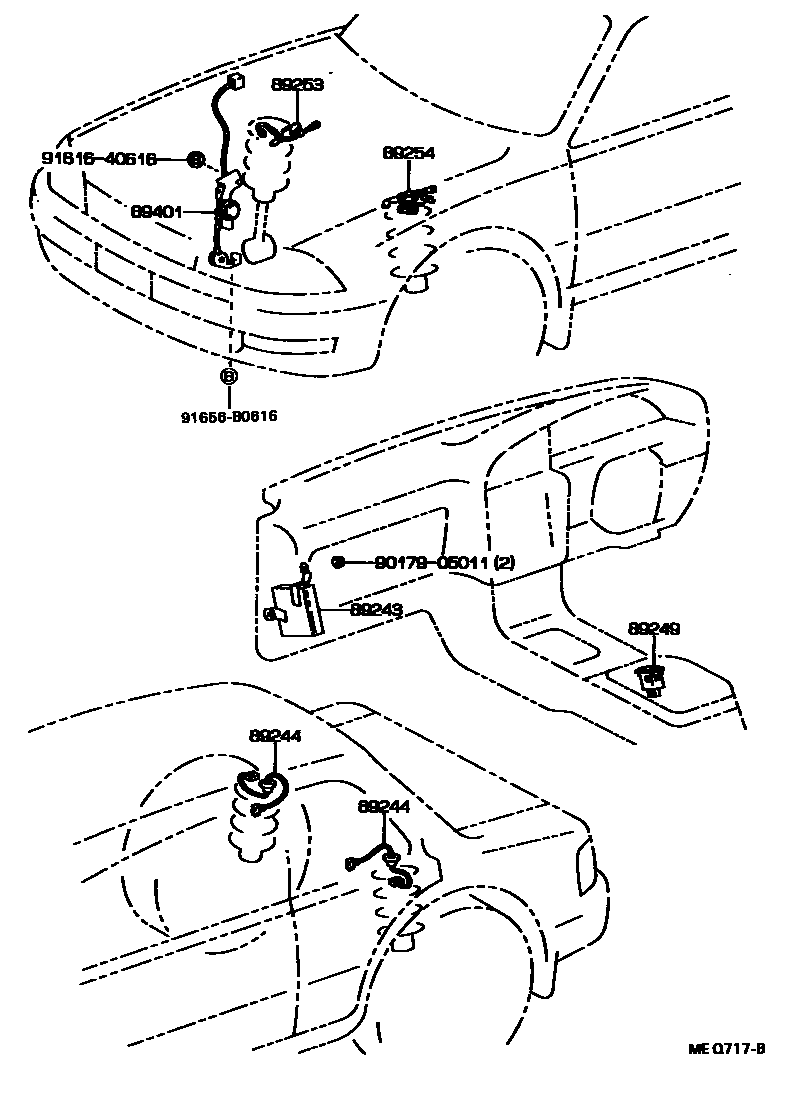

9 parts on this diagram · 1 diagram in section
