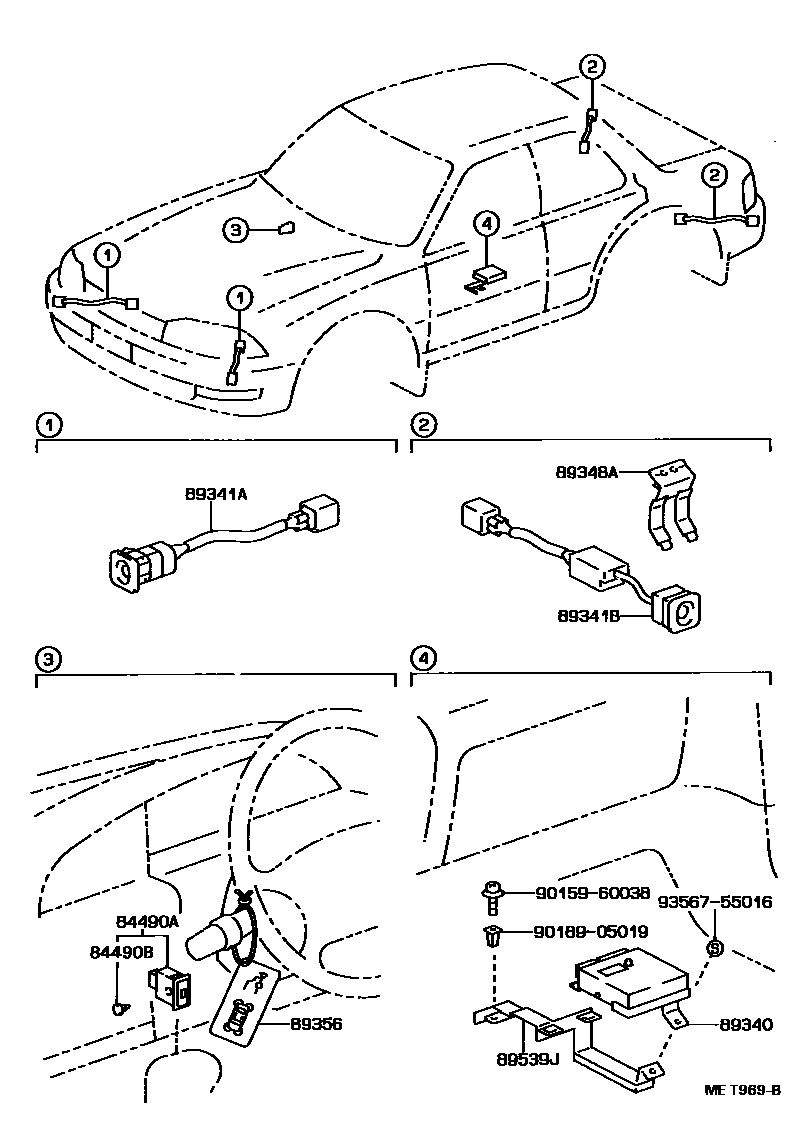

CLEARANCE & BACK SONAR

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-32010iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

84490BBULB(FOR BACK SONAR SWITCH)

main84999-10320iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-32010iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

89341ASENSOR, ULTRASONIC, NO.1

main89341-32010-A0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

SUPER WHITE 2,040

main89341-32010-B0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

DK BLUISH GRAY MICA,191

main89341-32010-E0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

LI.BEIGE ME,4M3

main89341-32010-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

GRAYISH GREEN M,25U ,6K6

main89341-32010-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

GRAYISH GREEN M,6K6

main89341-32010-G1iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

LT KHAKI G.M.M,25R

main89341-32010-G2iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

DK GREEN MICA,6M1

main89341-32010-K0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

GRAYISH PURPLE M,923

89341BSENSOR, ULTRASONIC, NO.2

main89341-32020-A0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

SUPER WHITE 2,040

main89341-32020-B0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

DK BLUISH GRAY MICA,191

main89341-32020-E0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

LI.BEIGE ME,4M3

main89341-32020-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

GRAYISH GREEN M,25U ,6K6

main89341-32020-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

GRAYISH GREEN M,6K6

main89341-32020-G1iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

LT KHAKI G.M.M.,25R

main89341-32020-G2iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

DK GREEN MICA,6M1

main89341-32020-K0iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

GRAYISH PURPLE M,923

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-32010iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-32010iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

89539JBRACKET, COMPUTER

main89539-32060iCV30,SV32,33,35,VZV3#..PRO,VX,ZX199206-199406

9015960038

main90159-60038

9018905019

main90189-05019

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section
