CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-32010iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main83731-32010iVZV32,33199105-199406

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20090iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

main84630-33040iSV32,33,35,VZV3#..PRO,VX,ZX199206-199406

sub84630-22170

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iVZV30,31199007-199206

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32090iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199105

sub88200-32100

main88200-32090iSV3#..GT,VR,VX,ZE,ZX199105-199206

sub88200-32100

main88200-32100iSV32,33,35..VX,ZX199206-199406

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-32050iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main88212-32050iVZV32,33199105-199406

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-32010iSV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX)199007-199406

88240COMPUTER ASSY, CRUISE CONTROL

main88240-32160iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199105

main88240-32160iSV3#..GT,VR,VX,ZE,ZX199105-199206

main88240-32170iSV32,33,35..VX,ZX199206-199406

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-32010iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main88290-32010iVZV32,33199105-199406

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-32040iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main88291-32040iVZV32,33199105-199406

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-32040iSV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main88292-32040iVZV32,33199105-199406

9010906200

main90109-06200

9011906311

main90119-06311

9011906339

main90119-06339

9011906536

main90119-06536

9015950265

main90159-50265

9020505002

main90205-05002

9033903002

main90339-03002

9046910001

main90469-10001

9165140612

main91651-40612

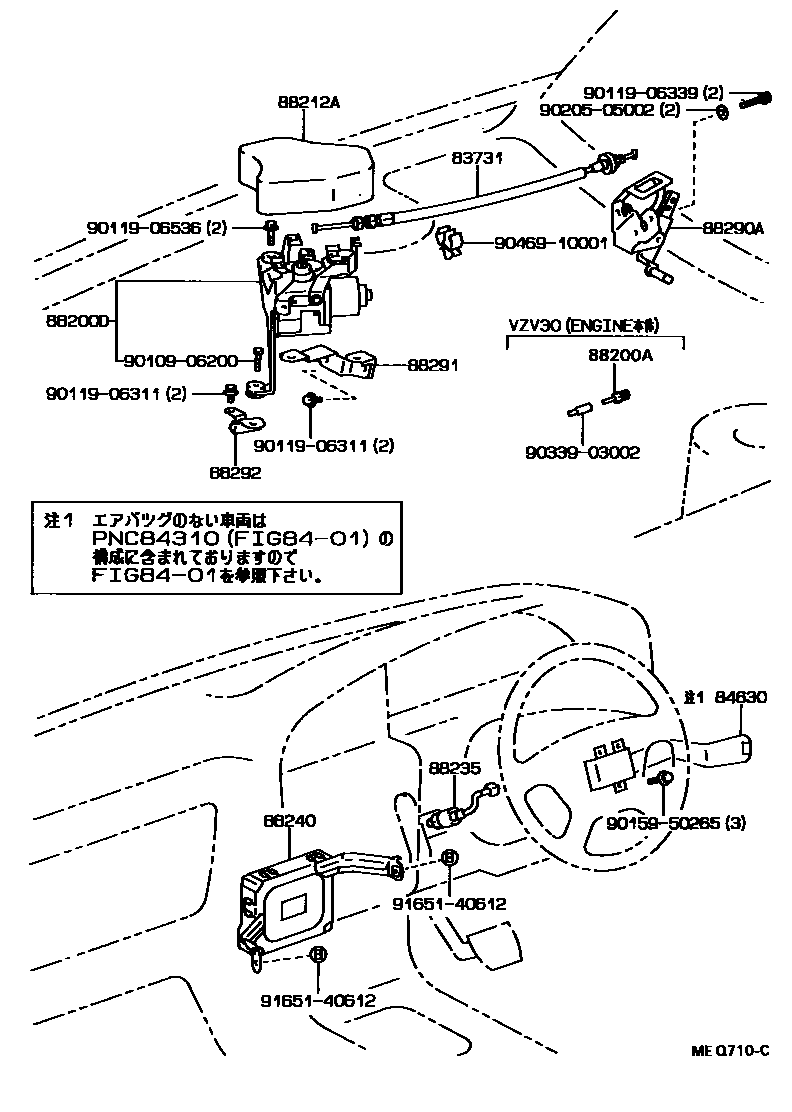

19 parts on this diagram · 1 diagram in section
