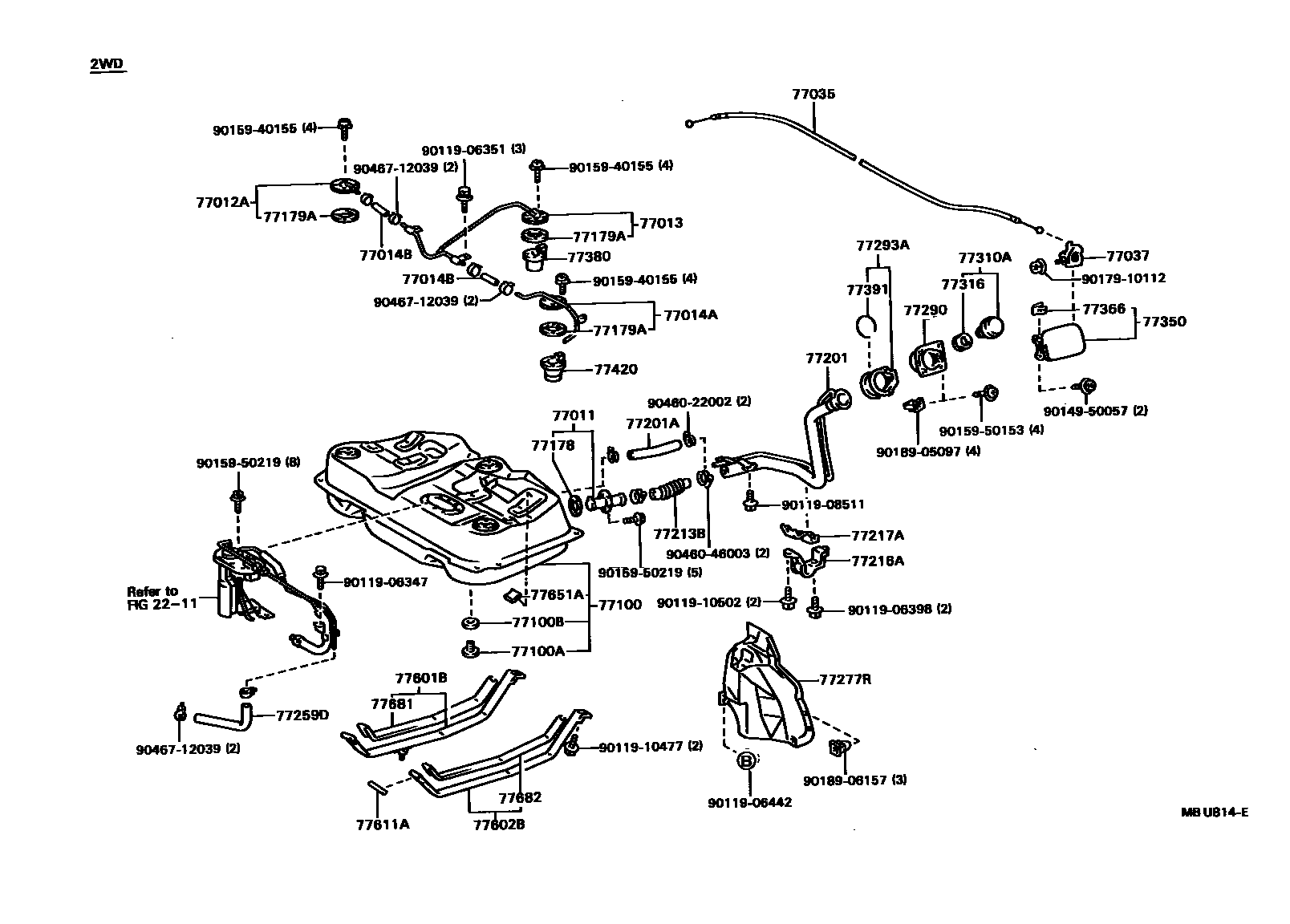

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iCV30,SV3#,VZV3#199007-199406

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-32050iSV35199007-199406

main77012-32070iCV30,SV30,32,33,VZV3#199007-199406

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-32030iSV35199007-199406

main77013-32050iCV30199007-199406

main77013-32060iSV30,32,33,VZV3#199007-199406

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-32040iSV35199007-199406

main77014-32060iCV30199007-199406

main77014-32070iSV30,32,33,VZV3#199007-199406

77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

main95333-06010iCV30,SV3#,VZV3#199007-199406

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-32130iCV30,SV3#..SED199007-199406

main77035-32150iCV30,SV3#,VZV3#..HT199007-199406

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iCV30,SV3#,VZV3#199007-199101

main77037-14020iCV30,SV3#,VZV3#199304-199406

main77037-32020iCV30,SV3#,VZV3#..HT199101-199307

sub77037-14020

77100TANK ASSY, FUEL

main77001-32907iSV35199007-199305

sub77001-32909

main77001-32909iSV35199305-199406

sub77001-32910

sub90269-03067

main77001-39305iCV30,SV30,32,33,VZV3#199007-199307

sub77001-39306

main77001-39306iCV30,SV30,32,33,VZV3#199307-199406

77100APLUG(FOR FUEL TANK)

main90341-20004iCV30,SV30,32,33,VZV3#199007-199308

77100BGASKET(FOR FUEL TANK)

main90430-20007iCV30,SV30,32,33,VZV3#199007-199308

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iCV30,SV3#,VZV3#199007-199406

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iCV30,SV3#,VZV3#199007-199406

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-32130iCV30,SV3#,VZV3#199007-199406

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77019-32120iSV35199106-199406

main90445-22013iSV35199007-199106

sub90445-22024

main90445-22024iCV30,SV30,32,33,VZV3#199007-199406

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32030iSV35199007-199406

main77213-32040iCV30,SV30,32,33,VZV3#199106-199206

sub77213-33010

main77213-32040iCV30,SV30,32,33,VZV3#199007-199106

sub77213-33010

main77213-33010iCV30,SV30,32,33,VZV3#199106-199406

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77104-32010iSV35199007-199406

main77216-32050iCV30,SV30,32,33,VZV3#199007-199311

sub77216-33010

main77216-33010iCV30,SV30,32,33,VZV3#199311-199406

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32030iCV30,SV30,32,33,VZV3#199007-199308

main77217-32040iSV35199007-199406

main77217-33010iCV30,SV30,32,33,VZV3#199308-199406

77259DHOSE, FUEL, NO.1

main77259-32030iCV30,SV30,32,33,VZV3#199007-199406

main77259-32040iSV35199007-199406

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-32040iCV30,SV3#..SED199007-199406

main77277-32050iCV30,SV3#,VZV3#..HT199007-199406

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-32030iCV30,SV3#,VZV3#199007-199406

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-32020iCV30,SV3#,VZV3#199007-199406

77310ACAP ASSY, FUEL TANK

main77310-16011iSV3#,VZV3#199007-199406

sub77310-12140

main77310-32011iCV30199007-199406

77316GASKET, FUEL TANK CAP

main77316-16010iCV30,SV3#,VZV3#199007-199406

77350LID ASSY, FUEL FILLER OPENING

main77350-32070iCV30,SV3#..SED199007-199406

main77350-32080iCV30,SV3#,VZV3#..HT199007-199406

sub77350-33150

main77350-33150iCV30,SV3#,VZV3#..HT199206-199406

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12030iCV30,SV3#,VZV3#199007-199406

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCV30,SV3#,VZV3#199007-199406

77391RING, FUEL INLET BOX

main77391-16011iCV30,SV3#,VZV3#199007-199406

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iCV30,SV3#,VZV3#199007-199406

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-32070iSV35199007-199406

main77601-32080iCV30,SV30,32,33,VZV3#199007-199406

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-32060iSV35199007-199406

main77602-32070iCV30,SV30,32,33,VZV3#199007-199406

77611APIN (FOR FUEL TANK BAND)

main90250-08019iCV30,SV3#,VZV3#199007-199406

77651ACUSHION, FUEL TANK, NO.1

main77651-32050iCV30,SV3#,VZV3#199007-199406

77681SEAT, FUEL TANK BAND, RH

main77681-32040iCV30,SV3#,VZV3#199007-199406

sub77681-32060

main77681-32040iSV35199103-199206

sub77681-32060

main77681-32070iCV30,SV30,32,33,VZV3#199212-199406

sub77681-32060

77682SEAT, FUEL TANK BAND, LH

main77681-32040iCV30,SV3#,VZV3#199007-199406

sub77681-32060

main77681-32060iSV35199103-199406

9011906347

main90119-06347

9011906351

main90119-06351

9011906398

main90119-06398

9011906442

main90119-06442

9011908511

main90119-08511

9011910477

main90119-10477

9011910502

main90119-10502

9014950057

main90149-50057

9015940155

main90159-40155

9015950153

main90159-50153

9015950219

main90159-50219

9017910112

main90179-10112

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9046712039

main90467-12039

52 parts on this diagram · 7 diagrams in section
