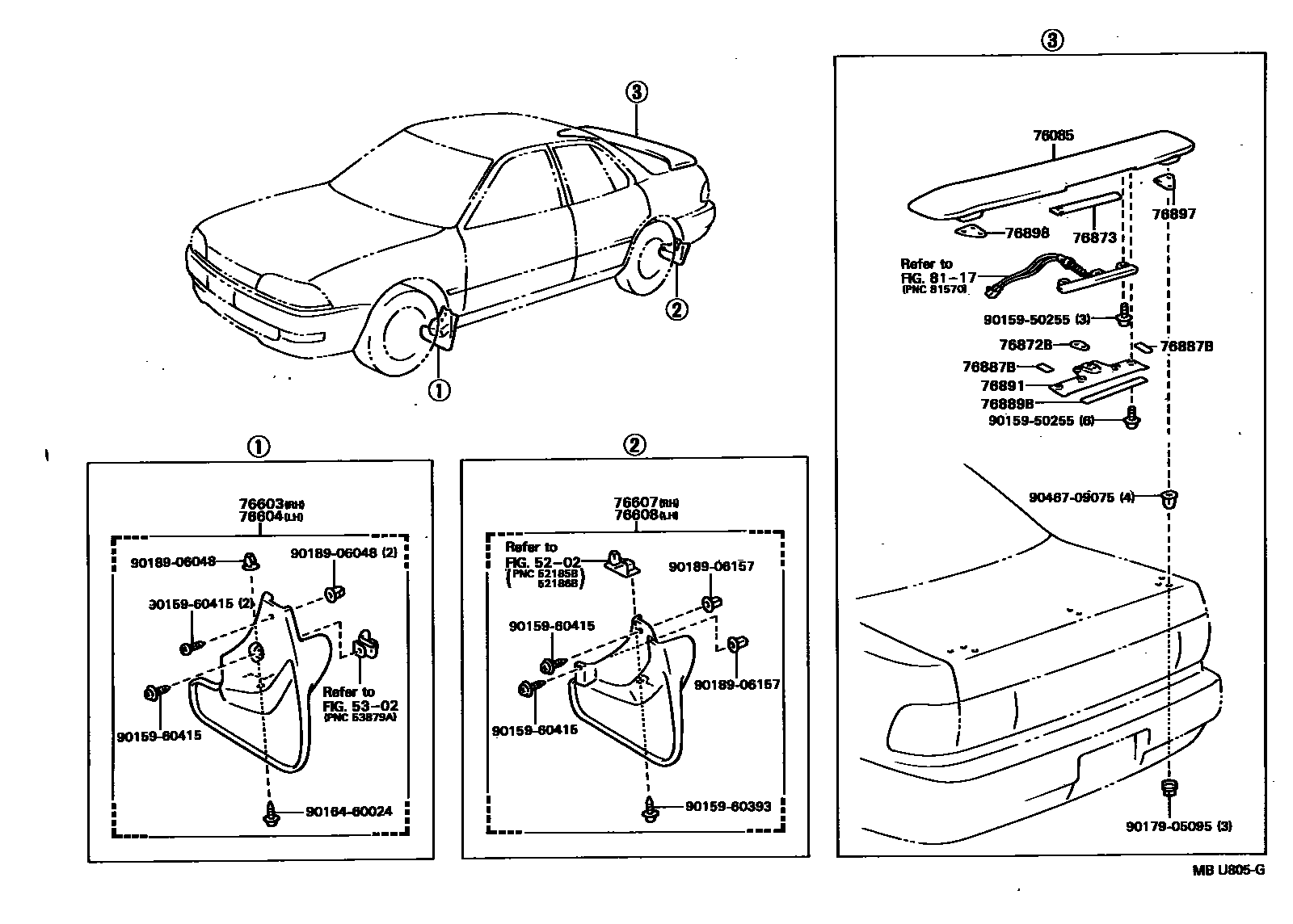

MUDGUARD & SPOILER

0001 1 0002 1

5202

5302

76085SPOILER SUB-ASSY, REAR

main76085-32901iCV30,SV3#,VZV3#..HT199007-199406

main76871-32903iSV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

920

main76871-32903iSV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

040

main76871-32903iSV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

191

main76871-32903iSV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

744

main76871-32903iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199101

3J9

main76871-32903iSV3#..SED..(GT,VR,VX,ZE,ZX)199101-199206

6K6

main76871-32903iSV32,33..ZX199206-199406

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39205-02iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

sub76621-39295

main76621-39205-03iCV30,SV30..HT..ETO199105-199206

sub76621-39295

main76621-39205-03iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199007-199206

AMETHYST SILVER M,920

sub76621-39295

main76621-39205-07iSV32,33,35..HT;CV30,SV30..HT..(VE,VR)199007-199206

MED TURQUOISE OPAL,744

sub76621-39295

main76621-39205-07iCV30,SV30..HT..ETO199105-199206

sub76621-39295

main76621-39205-08iCV30,SV30..HT..ETO199007-199206

SUPER WHITE 2,040

sub76621-39295

main76621-39205-08iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76621-39295

main76621-39205-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

sub76621-39295

main76621-39205-17iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

LIGHT KHAKI G M M,25R

sub76621-39295

main76621-39205-23iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76621-39295

main76621-39205-23iCV30,SV30..HT..ETO199007-199206

DARK BLUEISH GARY M,191

sub76621-39295

main76621-39205-27iCV30,SV30..HT..ETO199101-199206

GRAYISH GREEN M,6K6

sub76621-39295

main76621-39205-27iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76621-39295

main76621-39205-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DARK GRAYISH PURPLE,26R

sub76621-39295

main76621-39215iSV35..SED;CV30,SV30,32,33..SED..(GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main76621-39215iCV30,SV30..SED..ETO199105-199206

main76621-39215iCV30,SV30..SED..ETO199105-199206

main76621-39215iCV30,SV30,35..SED..ETO199312-199406

main76621-39215iSV30..XT199304-199406

main76621-39285iSV30..XT199304-199406

main76621-39285iCV30,SV30,35..SED..ETO199312-199406

main76621-39285iSV35..SED;CV30,SV30,32,33..SED..(LUM,VR,VX,ZE,ZX)199206-199406

SUPER WHITE 2(040)

main76621-39295-A0iCV30,SV30,35..HT..ETO199304-199307

main76621-39295-A0iCV30,SV30,35..HT..ETO199308-199406

main76621-39295-A0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

SUPER WHITE 2,040

main76621-39295-B0iCV30,SV30,35..HT..ETO199308-199406

main76621-39295-B0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK BLUISH GRAY MICA,191

main76621-39295-B0iCV30,SV30,35..HT..ETO199304-199307

main76621-39295-E0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

LI. BEIGE ME,4M3

main76621-39295-G0iSV35..HT..ETO199206-199406

GRAYISH GREEN ME,25U ,6K6

main76621-39295-G0iSV35..HT..ETO199206-199406

GRAYISH GREEN ME,6K6

main76621-39295-G0iCV30,SV30..HT..ETO199212-199303

main76621-39295-G1iCV30,SV30..HT..ETO199212-199303

main76621-39295-G1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

LT. KHAKI G.M.M,25R

main76621-39295-G2iCV30,SV30,35..HT..ETO199308-199406

main76621-39295-G2iCV30,SV30,35..HT..ETO199304-199307

main76621-39295-G2iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK GREEN MICA,6M1

main76621-39295-K0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

GRAYISH PURPLE ME,923

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39205-02iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

sub76622-39295

main76622-39205-03iCV30,SV3#,VZV3#..HT199007-199206

AMETHYST SILVER M,920

sub76622-39295

main76622-39205-03iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76622-39295

main76622-39205-07iSV32,33,35..HT;CV30,SV30..HT..(VE,VR)199007-199206

MED TURQUOISE OPAL,744

sub76622-39295

main76622-39205-07iSV32,33,35..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76622-39295

main76622-39205-08iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199007-199206

SUPER WHITE 2,040

sub76622-39295

main76622-39205-08iCV30,SV30..HT..ETO199105-199206

sub76622-39295

main76622-39205-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

sub76622-39295

main76622-39205-17iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

LIGHT KHAKI G M M,25R

sub76622-39295

main76622-39205-23iCV30,SV3#,VZV3#..HT199007-199206

DARK BLUEISH GRAY M,191

sub76622-39295

main76622-39205-23iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76622-39295

main76622-39205-27iCV30,SV30..HT..ETO199101-199206

GRAYISH GREEN M,6K6

sub76622-39295

main76622-39205-27iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76622-39295

main76622-39205-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DARK GRAYISH PURPLE,26R

sub76622-39295

main76622-39215iCV30,SV30,35..SED..ETO199312-199406

main76622-39215iSV30..XT199304-199406

main76622-39215iCV30,SV30..SED..ETO199105-199206

main76622-39215iCV30,SV30..SED..ETO199105-199206

main76622-39215iSV35..SED;CV30,SV30,32,33..SED..(GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main76622-39285iSV35..SED;CV30,SV30,32,33..SED..(LUM,VR,VX,ZE,ZX)199206-199406

SUPER WHITE 2(040)

main76622-39285iCV30,SV30,35..SED..ETO199312-199406

main76622-39285iSV30..XT199304-199406

main76622-39295-A0iCV30,SV30,35..HT..ETO199304-199307

main76622-39295-A0iCV30,SV30,35..HT..ETO199308-199406

main76622-39295-A0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

SUPER WHITE 2,040

main76622-39295-B0iCV30,SV30,35..HT..ETO199304-199307

main76622-39295-B0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK BLUISH GRAY MICA,191

main76622-39295-B0iCV30,SV30,35..HT..ETO199308-199406

main76622-39295-E0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

LI. BEIGE ME,4M3

main76622-39295-G0iSV35..HT..ETO199206-199406

GRAYISH GREEN ME,25U ,6K6

main76622-39295-G0iSV35..HT..ETO199206-199406

GRAYISH GREEN ME,6K6

main76622-39295-G0iCV30,SV30..HT..ETO199212-199303

main76622-39295-G1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

LT. KHAKI G.M.M,25R

main76622-39295-G1iCV30,SV30..HT..ETO199212-199303

main76622-39295-G2iCV30,SV30,35..HT..ETO199308-199406

main76622-39295-G2iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK GREEN MICA,6M1

main76622-39295-G2iCV30,SV30,35..HT..ETO199304-199307

main76622-39295-K0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

GRAYISH PURPLE MICA,923

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39255-02iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

sub76625-39385

main76625-39255-03iCV30,SV30..HT..ETO199007-199206

AMETHYST SILVER M,920

sub76625-39385

main76625-39255-03iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76625-39385

main76625-39255-07iCV30,SV30..HT..ETO199007-199206

MED TURQUOISE OPAL,744

sub76625-39385

main76625-39255-07iSV32,33,35..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76625-39385

main76625-39255-08iCV30,SV30..HT..ETO199105-199206

sub76625-39385

main76625-39255-08iCV30,SV30..HT..ETO199007-199206

SUPER WHITE 2,040

sub76625-39385

main76625-39255-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

sub76625-39385

main76625-39255-17iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

LIGHT KHAKI G M M,25R

sub76625-39385

main76625-39255-23iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199007-199206

DARK BLUEISH GRAY M,191

sub76625-39385

main76625-39255-23iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76625-39385

main76625-39255-27iCV30,SV30..HT..ETO199101-199206

GRAYISH GREEN M,6K6

sub76625-39385

main76625-39255-27iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76625-39385

main76625-39255-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DARK GRAYISH PURPLE,26R

sub76625-39385

main76625-39265iCV30,SV30..ZV199105-199206

main76625-39265iCV30,SV30..SED..ETO199105-199206

main76625-39265iCV30,SV3#..SED199007-199406

main76625-39265iCV30,SV30,35..SED..ETO199312-199406

main76625-39265iSV30..XT199304-199406

main76625-39375iSV35..SED;CV30,SV30,32,33..SED..(LUM,VR,VX,ZE,ZX)199206-199406

SUPER WHITE 2(040)

main76625-39375iCV30,SV30,35..SED..ETO199312-199406

main76625-39375iSV30..XT199304-199406

main76625-39385-A0iCV30,SV30,35..HT..ETO199304-199307

main76625-39385-A0iCV30,SV30,35..HT..ETO199308-199406

main76625-39385-A0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

SUPER WHITE 2,040

main76625-39385-B0iCV30,SV30,35..HT..ETO199308-199406

main76625-39385-B0iCV30,SV30,35..HT..ETO199304-199307

main76625-39385-B0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK BLUISH GRAY MICA,191

main76625-39385-E0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

LI. BEIGE ME,4M3

main76625-39385-G0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

GRAYISH GREEN ME,6K6

main76625-39385-G0iCV30,SV30..HT..ETO199212-199303

main76625-39385-G0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

GRAYISH GREEN ME,25U ,6K6

main76625-39385-G1iCV30,SV30..HT..ETO199212-199303

main76625-39385-G1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

LT. KHAKI G.M.M,25R

main76625-39385-G2iCV30,SV30,35..HT..ETO199308-199406

main76625-39385-G2iCV30,SV30,35..HT..ETO199304-199307

main76625-39385-G2iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK GREEN MICA,6M1

main76625-39385-K0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

GRAYISH PURPLE ME,923

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39255-02iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

sub76626-39385

main76626-39255-03iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199007-199206

AMETHYST SILVER M,920

sub76626-39385

main76626-39255-03iSV32,33,35,VZV3#..HT;CV30,SV30..HT..(VE,VR)199105-199206

sub76626-39385

main76626-39255-07iSV32,33,35..HT;CV30,SV30..HT..(VE,VR)199007-199206

MED TURQUOISE OPAL,744

sub76626-39385

main76626-39255-07iCV30,SV30..HT..ETO199105-199206

sub76626-39385

main76626-39255-08iCV30,SV30..HT..ETO199105-199206

sub76626-39385

main76626-39255-08iCV30,SV3#,VZV3#..HT199007-199206

SUPER WHITE 2,040

sub76626-39385

main76626-39255-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

sub76626-39385

main76626-39255-17iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

LIGHT KHAKI G M M,25R

sub76626-39385

main76626-39255-23iCV30,SV3#,VZV3#..HT199007-199206

DARK BLUEISH GARY M,191

sub76626-39385

main76626-39255-23iCV30,SV30..HT..ETO199105-199206

sub76626-39385

main76626-39255-27iCV30,SV30..HT..ETO199101-199206

GRAYISH GREEN M,6K6

sub76626-39385

main76626-39255-27iCV30,SV30..HT..ETO199105-199206

sub76626-39385

main76626-39255-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DARK GARYISH PURPLE,26R

sub76626-39385

main76626-39265iCV30,SV30..SED..ETO199105-199206

main76626-39265iSV30..XT199304-199406

main76626-39265iCV30,SV30..SED..ETO199105-199206

main76626-39265iCV30,SV30,35..SED..ETO199312-199406

main76626-39265iSV35..SED;CV30,SV30,32,33..SED..(GT,LUM,VE,VR,VX,ZE,ZX)199007-199406

main76626-39375iSV35..SED;CV30,SV30,32,33..SED..(LUM,VR,VX,ZE,ZX)199206-199406

SUPER WHITE 2(040)

main76626-39375iCV30,SV30,35..SED..ETO199312-199406

main76626-39375iSV30..XT199304-199406

main76626-39385-A0iCV30,SV30,35..HT..ETO199308-199406

main76626-39385-A0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

SUPER WHITE 2,040

main76626-39385-A0iCV30,SV30,35..HT..ETO199304-199307

main76626-39385-B0iCV30,SV30,35..HT..ETO199308-199406

main76626-39385-B0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK BLUISH GRAY MICA,191

main76626-39385-B0iCV30,SV30,35..HT..ETO199304-199307

main76626-39385-E0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

LI. BEIGE ME,4M3

main76626-39385-G0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

GRAYISH GREEN ME,6K6

main76626-39385-G0iCV30,SV30..HT..ETO199212-199303

main76626-39385-G0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

GRAYISH GREEN ME,25U ,6K6

main76626-39385-G1iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

LT. KHAKI G.M.M,25R

main76626-39385-G1iCV30,SV30..HT..ETO199212-199303

main76626-39385-G2iCV30,SV30,35..HT..ETO199308-199406

main76626-39385-G2iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

DK GREEN MICA,6M1

main76626-39385-G2iCV30,SV30,35..HT..ETO199304-199307

main76626-39385-K0iSV35,VZV3#..HT;CV30,SV30,32,33..HT..(VR,VX)199206-199406

GRAYISH PURPLE ME,923

76872PROTECTOR, REAR SPOILER, NO.1

main76872-32010iCV30,SV3#,VZV3#..HT199007-199406

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-32020iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

76873PROTECTOR, REAR SPOILER, NO.2

main76873-32020iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199102-199406

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-32010iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

76889CLIP, REAR SPOILER, NO.2

main76889-32010iCV30,SV3#,VZV3#..HT199007-199406

76889BSEAL, REAR SPOILER, NO.1

main76889-22010iSV32,33..ZX199306-199406

main76889-32020iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199306

76891SPOILER, REAR NO.1

main76891-32010iSV32,33..ZX199206-199406

sub76891-32904

main76891-32010-02iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199101

RED MICA M,3J9

sub76891-32904

main76891-32010-03iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

AMETHYST SILVER M,920

sub76891-32904

main76891-32010-07iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

RED TURQUOISE OPAL,744

sub76891-32904

main76891-32010-08iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

SUPER WHITE 2,040

sub76891-32904

main76891-32010-13iSV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX)199007-199406

DARK BLUEISH GRAY M,191

sub76891-32904

main76891-32010-17iSV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX)199101-199406

GRAYISH GREEN M,6K6

sub76891-32904

main76891-32010-E0iSV32,33..ZX199206-199406

LI. BEIGE ME,4M3

sub76891-32904

main76891-32010-G0iSV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX)199206-199406

DK GREEN MICA,6M1

sub76891-32904

main76891-32010-K0iSV32,33..ZX199206-199406

GRAYISH PURPLE ME,923

sub76891-32904

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-32020iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

sub76898-32020

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-32020iSV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX)199007-199406

8117

9015950255

main90159-50255

9015960393

main90159-60393

9015960415

main90159-60415

9016460024

main90164-60024

9017905095

main90179-05095

9018906048

main90189-06048

9018906157

main90189-06157

9046709075

main90467-09075

25 parts on this diagram · 2 diagrams in section
