SIDE MOULDING
67887FWEATHERSTRIP, REAR DOOR, NO.2 RH
67888DWEATHERSTRIP, REAR DOOR, NO.2 LH
68211ACLIP, DOOR BELT MOULDING
FRONT DOOR-TYPE A
FRONT DOOR-TYPE B
REAR DOOR-TYPE C
REAR DOOR-TYPE D
68212ACLIP, DOOR GLASS WEATHERSTRIP, OUTER
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75392ARETAINER, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
NATURAL
75397ACLIP, OUTSIDE MOULDING, NO.3
75494CLIP, OUTSIDE MOULDING, NO.3
75617CMOULDING, FRONT FENDER, LOWER REAR RH
BLACK,182 ,191 ,3J9 ,4M3 ,6K6 ,6M1 ,744 ,920 ,923
75618CMOULDING, FRONT FENDER, LOWER REAR LH
BLACK,182 ,191 ,3J9 ,4M3 ,6K6 ,6M1 ,744 ,920 ,923
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
sub75623-32100
LIGHT KHAKI G M M,25R
sub75623-32100
sub75623-32100
DARK GRAYISH PURPLE,26R
sub75623-32100
GRAYISH GREEN ME,25U ,6K6
sub75623-32100
sub75623-32100
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
LIGHT KHAKI G M M,25R
sub75624-32100
sub75624-32100
sub75624-32100
DARK GRAYISH PURPLE,26R
sub75624-32100
sub75624-32100
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
sub75707-32011
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
sub75708-32011
75731AMOULDING, FRONT DOOR, OUTSIDE RH
LIGHT KHAKI G M M,25R
sub75731-32290
sub75731-32290
sub75731-32290
DARK GRAYISH PURPUL,26R
sub75731-32290
sub75731-32290
GRAYISH GREEN ME,25U ,6K6
sub75731-32290
75732AMOULDING, FRONT DOOR, OUTSIDE LH
LIGHT KHAKI G M M,25R
sub75732-32300
sub75732-32300
sub75732-32300
DARK GRAYISH PURPLE,26R
sub75732-32300
sub75732-32300
GRAYISH GREEN ME,25U ,6K6
sub75732-32300
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75741MOULDING, REAR DOOR, OUTSIDE RH
sub75741-32370
sub75741-32370
LIGHT KHAKI G M M,25R
sub75741-32370
DARK GRAYISH PURPLE,26R
sub75741-32370
sub75741-32370
75742MOULDING, REAR DOOR, OUTSIDE LH
sub75742-32380
sub75742-32380
LIGHT KHAKI G M M,25R
sub75742-32380
DARK GRAYISH PURPLE,26R
sub75742-32380
sub75742-32380
GRAYISH GREEN ME,25U ,6K6
sub75742-32380
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75791BCLIP, BELT MOULDING SIDE
75792CLIP, DOOR WINDOW FRAME MOULDING
75851MOULDING, ROCKER PANEL, RH
SUPER WHITE 2(040)
BLACK,182 ,191 ,3J9 ,4M3 ,6K6 ,6M1 ,744 ,920 ,923
75852MOULDING, ROCKER PANEL, LH
BLACK,182 ,191 ,3J9 ,4M3 ,6K6 ,6M1 ,744 ,920 ,923
BLACK
SUPER WHITE 2(040)
75866ARETAINER, ROCKER PANEL MOULDING
NATURAL
9015960364
main90159-60364
9016250016
main90162-50016
9016840081
main90168-40081
9017605001
main90176-05001
9017905050
main90179-05050
9018904175
main90189-04175
9018906048
main90189-06048
9352024010
main93520-24010
9353084516
main93530-84516

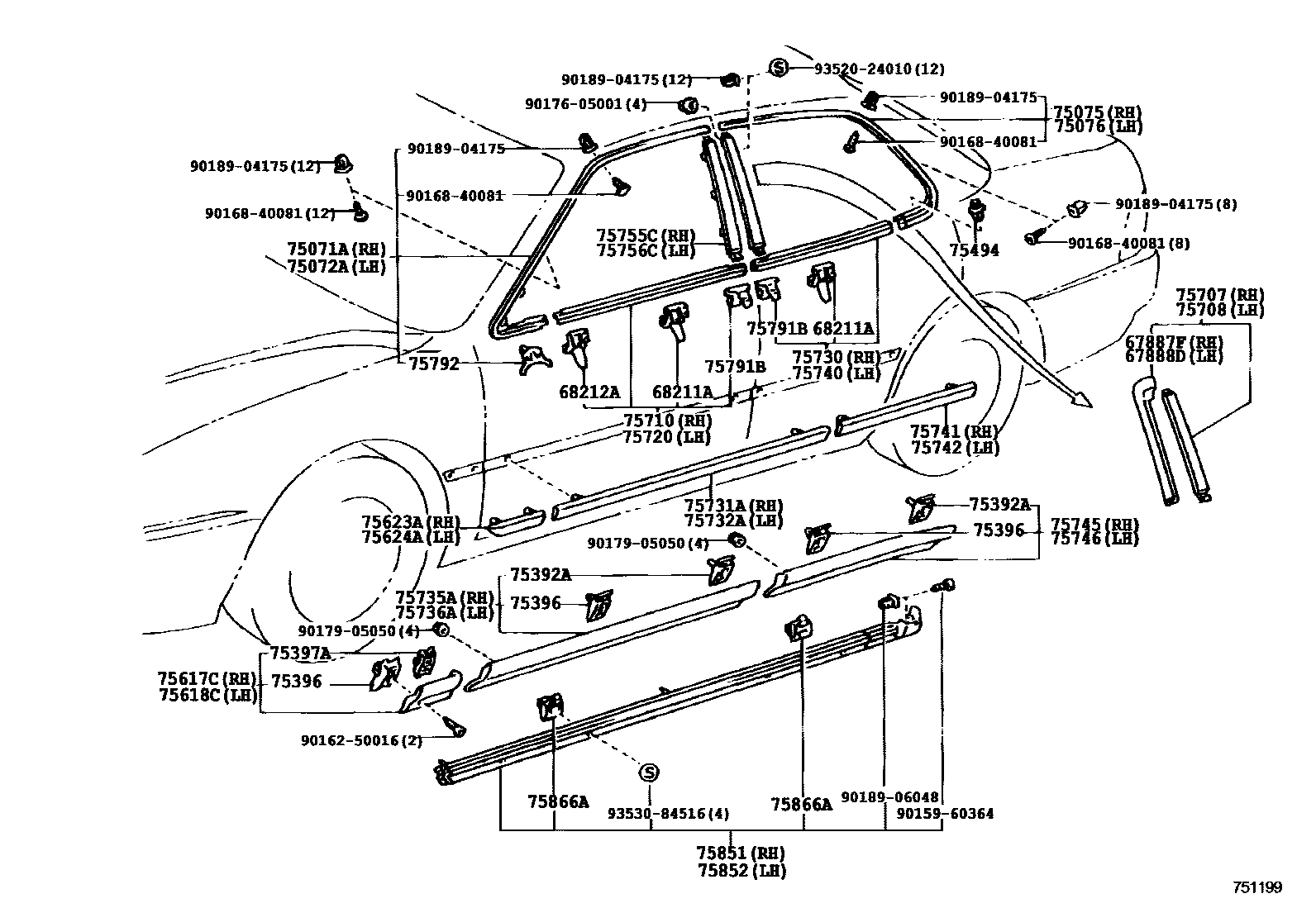

46 parts on this diagram · 2 diagrams in section
