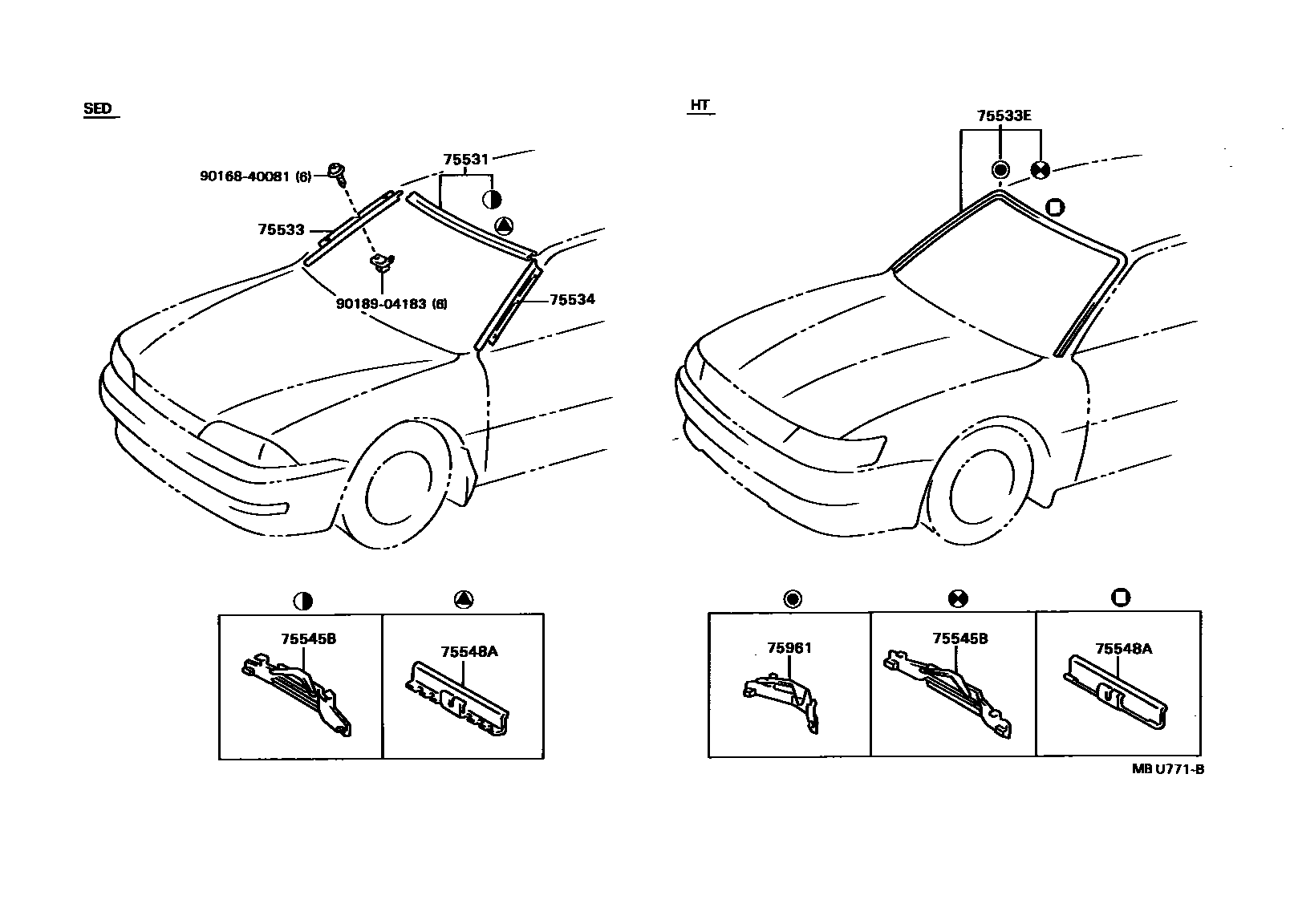

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-32130iCV30,SV3#..SED199007-199406

main75531-32140iCV30,SV3#..SED199007-199406

sub75531-32130

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-32100iCV30,SV3#..SED199007-199406

main75533-32130iCV30,SV3#..SED199007-199406

sub75533-32100

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-32110iCV30,SV3#,VZV3#..HT199007-199406

main75533-32120iCV30,SV3#,VZV3#..HT199007-199406

sub75533-32110

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-32100iCV30,SV3#..SED199007-199406

main75534-32110iCV30,SV3#..SED199007-199406

sub75534-32100

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-32030iCV30,SV3#..SED199007-199406

main75545-32040iCV30,SV3#,VZV3#..HT199007-199406

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-20110iCV30,SV3#..SED199007-199406

75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4

main75961-32050iCV30,SV3#,VZV3#..HT199007-199406

9016840081

main90168-40081

9018904183

main90189-04183

9 parts on this diagram · 2 diagrams in section
