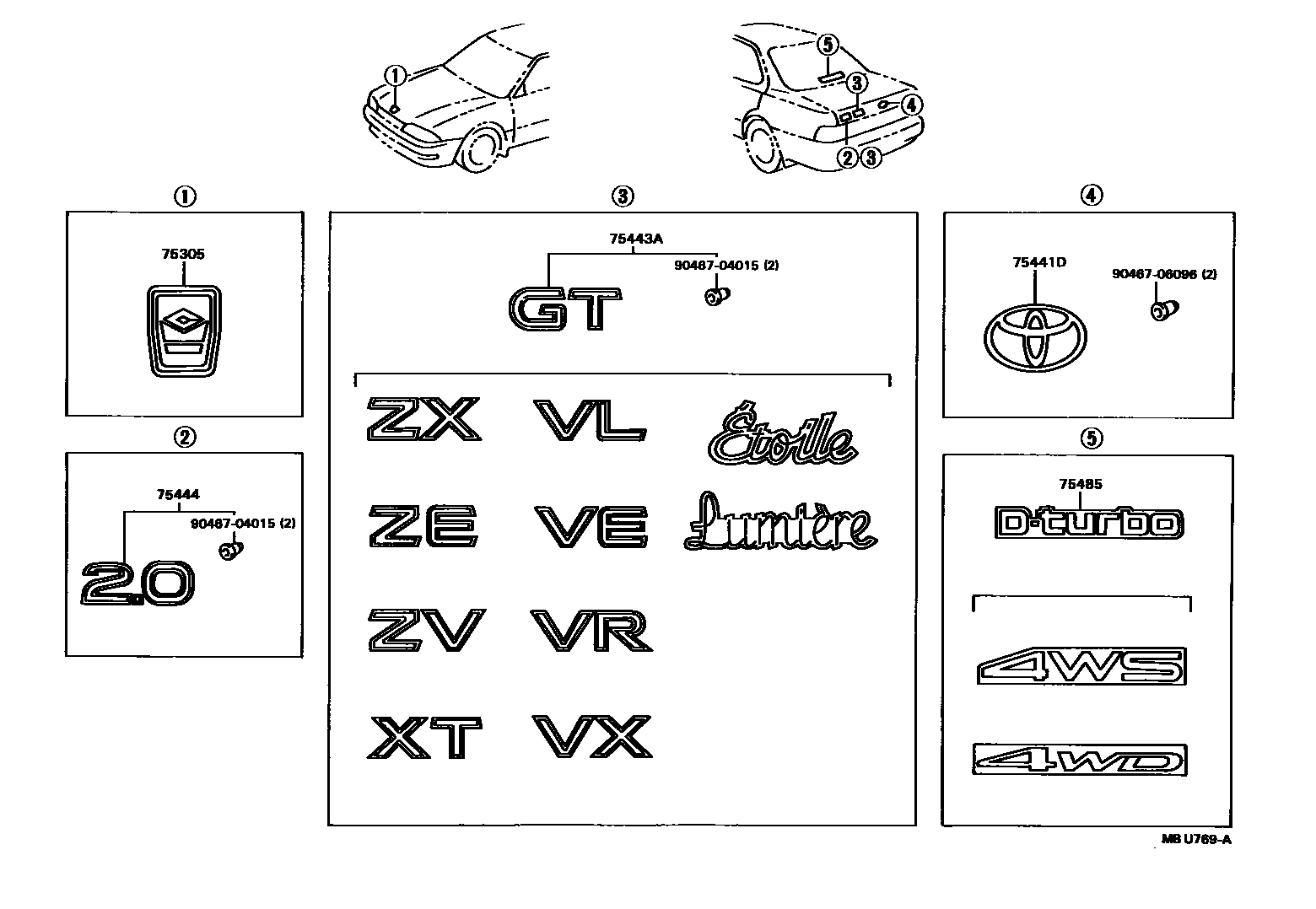

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1

75305EMBLEM, HOOD

main75331-32030iCV30,SV3#..CAM199007-199206

main75331-32040iVZV3#199007-199406

sub75331-32050

main75331-32050iCV30,SV3#..CAM199206-199406

sub75331-32030

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-32100iCV30,SV3#,VZV3#..HT199007-199406

sub75441-32150

main75441-32120iCV30,SV3#..SED199007-199406

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-32490iCV30,SV30..ZV199007-199206

main75443-32500iSV32,33,35..LUM199007-199406

main75443-32510iSV35..ZV199007-199206

main75443-32520iSV32,33..SED..VE199007-199206

main75443-32530iSV32,33,35..SED..ETO199007-199406

main75443-32540iSV30..XT199007-199406

main75443-32550iCV30,SV30..LUM199007-199406

main75443-32560iCV30,SV30..ZE199007-199406

main75443-32570iSV32,33,35..ZX199007-199406

main75443-32580iSV32,33..SED..GT199007-199206

main75443-32590iSV30..VL199007-199406

main75443-32600iCV30,SV30..SED..ETO199007-199406

main75443-32610iSV30..SED..VE199007-199206

main75443-32620iCV30,SV30..SED..VR199007-199406

main75443-32630iSV32,33,35..SED..VX199007-199406

main75443-32640iCV30,SV30..HT..ETO199007-199406

main75443-32650iSV32,33,35..HT..ETO199007-199406

main75443-32660iCV30,SV30..HT..VR199007-199406

main75443-32670iSV30..HT..VE199007-199206

main75443-32680iSV32,33..HT..VE199007-199206

main75443-32690iSV32,33,35..HT..VX199007-199406

main75443-32700iSV32,33..HT..GT199007-199206

main75443-32720iCV30..ZX199206-199406

main75443-32730iCV30..SED..VX199206-199406

main75443-32740iCV30..HT..VX199206-199406

main75443-32750iCV30,SV30,35..LUM199304-199406

sub75445-12190

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-32150iSV32,33,35..SED199007-199406

main75444-32160iSV32,33,35..HT199007-199406

main75444-32170iVZV3#199007-199406

main75444-32210iVZV32,33199105-199406

sub75443-33280

75485PLATE, BACK WINDOW NAME

main75485-32090iCV30199007-199206

sub75485-32130

main75485-32110iSV33,VZV31,33199007-199206

sub75485-32140

main75485-32120iSV35199007-199206

sub75485-32150

main75485-32130iCV30199206-199406

main75485-32140iSV33,VZV33199206-199406

main75485-32150iSV35199206-199406

9046704015

main90467-04015

9046706096

main90467-06096

7 parts on this diagram · 4 diagrams in section
